Home > Products > Idle Air Control Valve > GOGO ATC 2 position Pneumatic manual 3 way valve TSV98321-M Port 1/8" BSP hand control valve with Mechanical lock
GOGO ATC 2 position Pneumatic manual 3 way valve TSV98321-M Port 1/8" BSP hand control valve with Mechanical lock
- 1000 Piece / Pieces per Month
- T/T Credit Card
- GOGO ATC 2 position Pneumatic 3 way hand control valve TSV98322-M Port 1/4" BSP Manual valve Mechanical lock
- GOGO ATC 4 way 2 position Pneumatic air hand lever valve 4HV310-10 Port RC3/8" thread Manual operated control valve
- GOGO ATC Pneumatic 2 position 3 way air hand valve 3R210-08 Port 1/4" BSP Manual control valve
- GOGO ATC Pneumatic 2 position 3 way air hand lever valve 3R310-10 Port 3/8" BSP Manual control valve
- GOGO ATC Pneumatic air valve 4A110-06 Port 1/8 inch BSP 5 way air control valve
- GOGO ATC 5 way Pneumatic hand operated 1/4 inch exhaust Manual Mechanical control valve MSV86522-PB with Large Round Button
Product Details
Brand Name: | GOGO ATC | Place of Origin: | Zhejiang, China | Model Number: | TSV98321-M |
Product Description

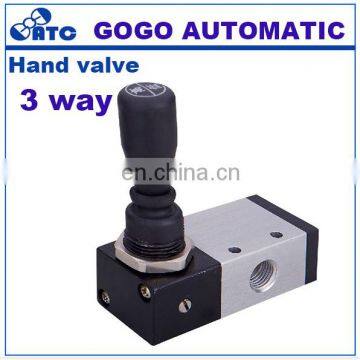

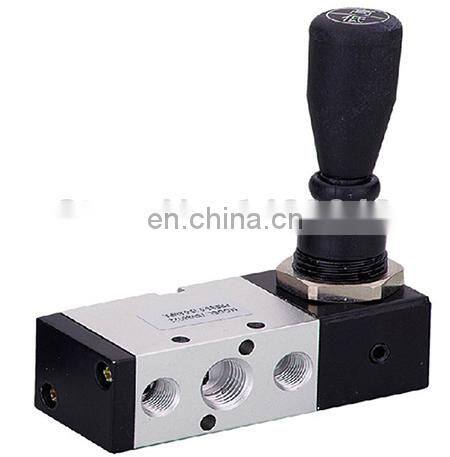

GOGO ATC 3 way 2 position Pneumatic air hand control valve
TSV98321-M Port 1/8" BSP Manual valve
Mechanical lock
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * * **
1.Specification
Features
•Integral slot piston structure
•Process valve hole with special high precision finishing process
•Beautiful appearance
•Good reverser
•Reliable performance
•Seal wear can automatic compensate
Model | TSV86522M | TSV86522S | TSV98322M | TSV98322S |
Working Medium | 40 Micron Filtered Air | |||
Motion Pattern | Direct Drive Type | |||
Effective Sectional Area | 18mm2(CV=1.00) | |||
Joint Pipe Bore | G1/4" | |||
Working-pressure Range | 0~0.8MPa | |||
Operating Temperature Range | 0~60°C |

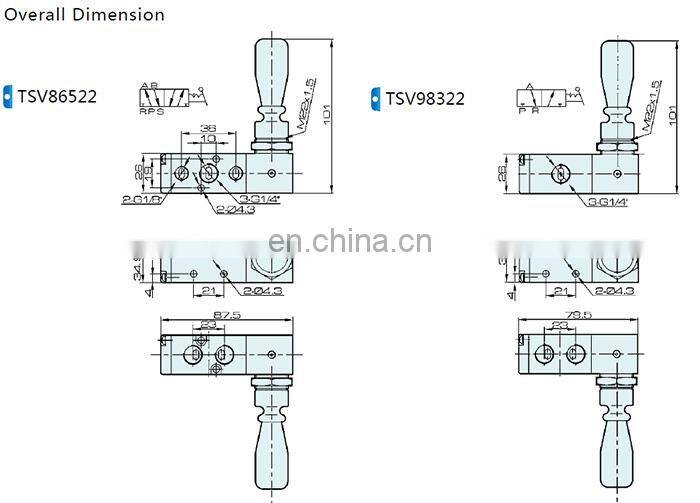

2.Dimensions

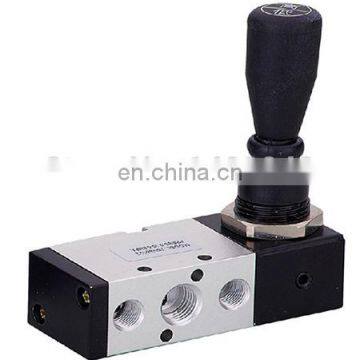

3.PICTURE
