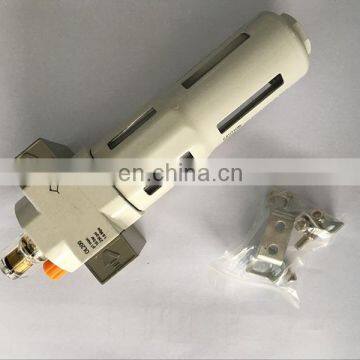

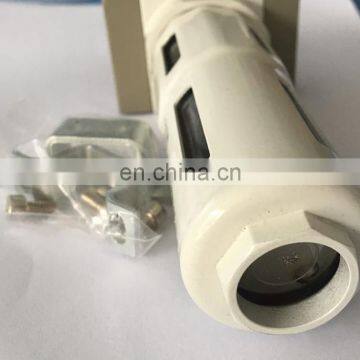

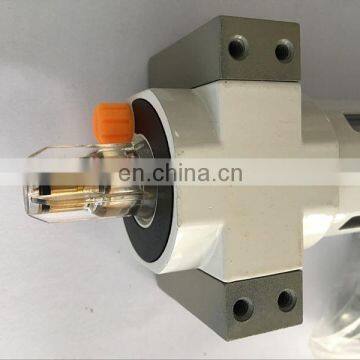

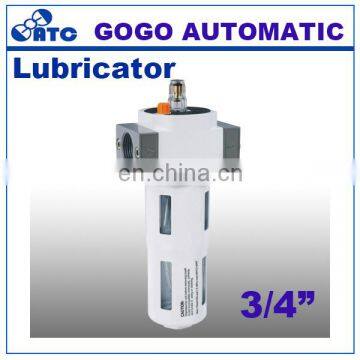

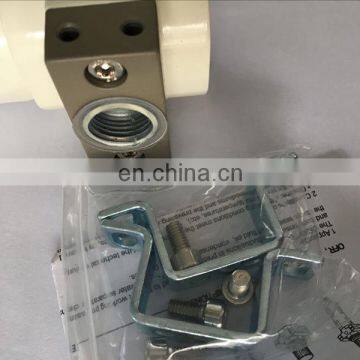

Pneumatic Air Lubricator

Pneumatic air lubricator MINI MIDI MAXI

Specification

1: Air Source Treatment / Air Lubricator
2:widely used in machinery.
3:Port size:G1/8 to G3/4.
4:1 year warranty

Air Source Treatment / Air Lubricator

The OU consisted of OFR and OL,each unit can be ordered separately.

The OR maintain imputting constant operating pressure despite fluctuation in line pressure and the amount of air consumed.

The proportional lubricator adds a regulated quantity of oil to the filtered air.The oil-mist content proportional to the flow and oil can be added during operation.The oil drip rate is controlled by the adjustable bolt.Normally,1to 12 drops /1000L of the air is sufficient.

4.Proof Pressure: 1.6Mpa

5.Pressure Range: 0.05-1.2MPa

6.Temperature Range: 5-60°C

7.Port Size: Mini-1/8", 1/4", 3/8";  Midi-1/4", 3/8", 1/2", 3/4"

8.Min. Standard Normal Flow Rate: Miini: 3L/min;  Midi: 6L/min

9.Material Infomation: Housing: Zinc die-casting;

                                     Filter bowl and oil bowl: PC;

                                     Metal Protective Hood: Aluminium alloy;

                                     Adjusting knob: POM

                                     Sealing: NBR;

Dimensions


Packing

1:Inner packing: opp bag, then carton box for each product.
2:Outer packing: export standard carton, Foam outside protecting the goods against damage

Shipment and Payment

1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.

4: We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal.
