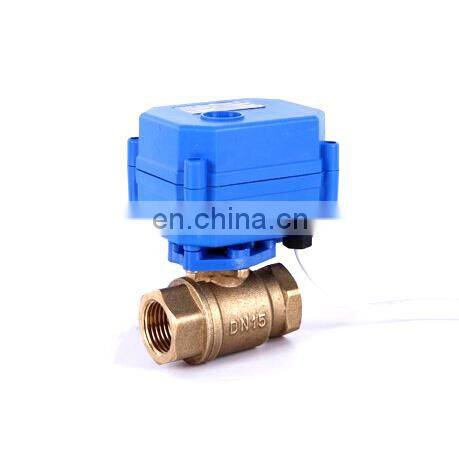

2 Way Mini Electric Actuator Control Valve Brass CR01two Wires DC12V 1/2" NPT Motorized Ball Valve

2 Way Mini Electric Actuator Control Valve Brass CR01two Wires DC12V 1/2" NPT Motorized Ball Valve photo-1
2 Way Mini Electric Actuator Control Valve Brass CR01two Wires DC12V 1/2" NPT Motorized Ball Valve photo-2
US$ 8.5 - 10.9 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
GOGO
Place of Origin:
Zhejiang, China
Model Number:
CWX-15N
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name GOGO
Place of Origin Zhejiang, China
Model Number CWX-15N
Material Brass
Structure Control
Standard or Nonstandard Standard
Pressure Medium Pressure
Power Pneumatic
Port Size 1/2"
Media Water
Temperature of Media Medium Temperature

2 way mini electric actuator control valve brass CR01two wires DC12V 1/2" NPT motorized ball valve



Specification



Product size : 1/2" NPT
Maximum working pressure : 1.0Mpa
circulation means :  fluid, air
rated voltage : DC 3-6V/ DC12V / DC9-24V

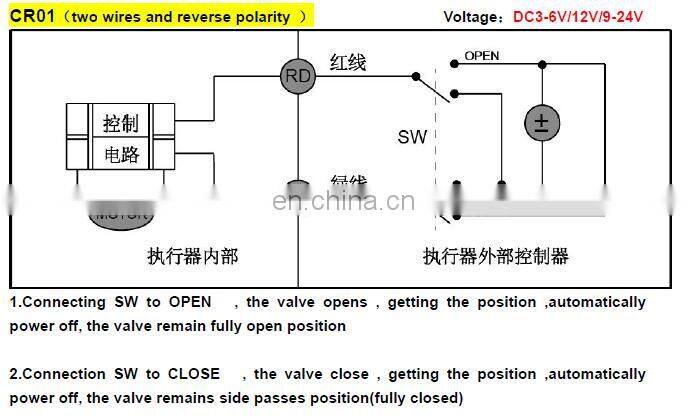

Wiring Control Methods : CR-01
Working current : 80mA
Open / close time : 3-5 S
Life time : 100000 veces
Valve body material : Brass
Actuator Material :  engineering plastics
Seal Material : EPDM y PTFE
Rotation of actuator : 90
Max. par force : 2 n. m
Cable length : 0.5 m
Ambient temperature :-15 ~ 50
Liquid temperature : 0 ~ 80C
Manual override : No
Indicator : No
Protection class : IP65

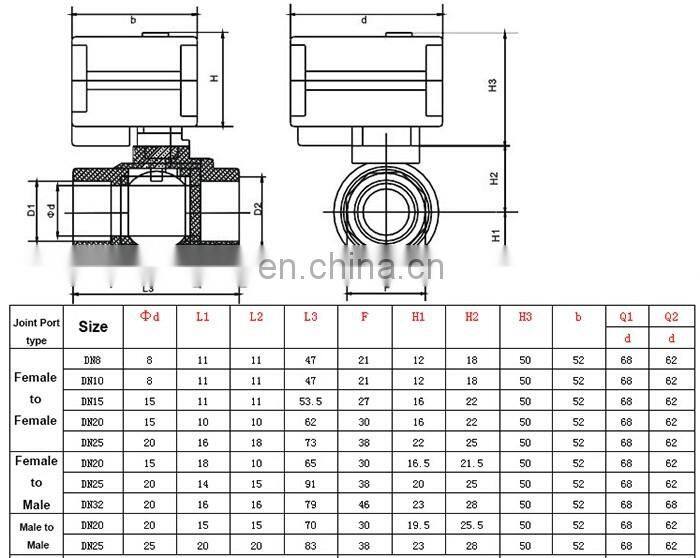

 Dimensions

2 way mini electric actuator control valve brass CR01two wires DC12V 1/2" NPT motorized ball valve

cables



2 way mini electric actuator control valve brass CR01two wires DC12V 1/2" NPT motorized ball valve



Applications:
HVAC
Water treatment
Small equipment for automatic control
Replacing solenoid valve, particularly when solenoid cannot work reliably




2 way mini electric actuator control valve brass CR01two wires DC12V 1/2" NPT motorized ball valve
