AC/DC 24V on/off & Modulating type general damper actuator for hvac system
Features:
Easy installation: can be fixed on the throttle shaft by universal shaft holde
Manual control: can have manual operation if necessary
High reliability: with the overload protection, it will stop automatically without limit switch.
Mechanical stop: with the mechanical stop inside.
Output signal: can output one switching signal within the limit of 0-100%

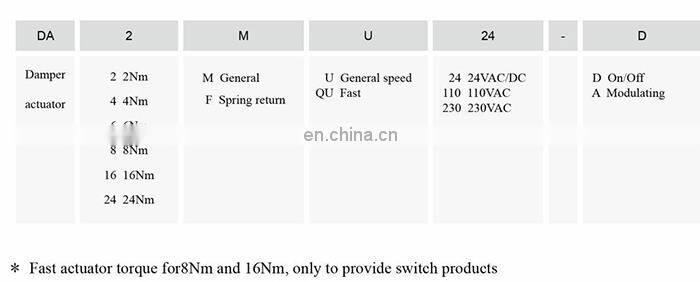

Model Selection Table
Technical Specification:
Torque |
2 Nm |
Service life |
80,000 times |
Damper size |
0.5m² |
Running time |
30S(90°) |
Supply power |
AC/DC 24V AC 100..240V Switching power supply |
Frequency |
50/60HZ |
Control signal |
0(2)…10V / 0(4)…20mA |
Direction of rotation |
Manual regulation |
Manual override |
With |
Angle of rotation |
0- 90°,Max95° ,adjustable by mechanical stops |
Position indication |
Mechanical |
Power |
2W @nominal torque 0.5W @holding |
Sound power level |
45dB |
Protection class |
Ⅱ |
Protection degree |
IP54 |
Ambient temperature |
-20~+50°c |
ambient humidity |
5-95%RH |
Shaft length |
>50mm |
Shaft diameter |
6-16mm / 12×12 |
Weight |
<0.5Kg |
Standard |
CE Requirement |

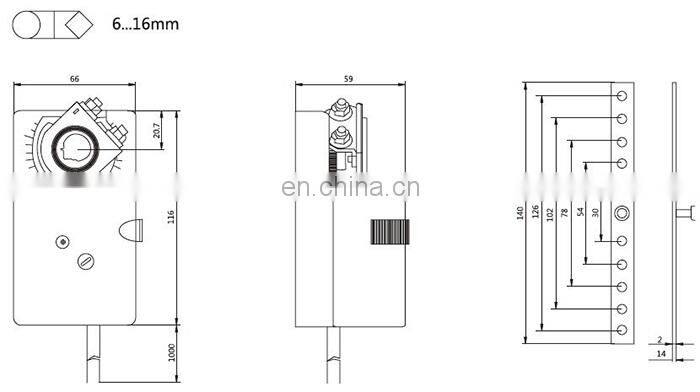

Dimensions
Wiring Diagram

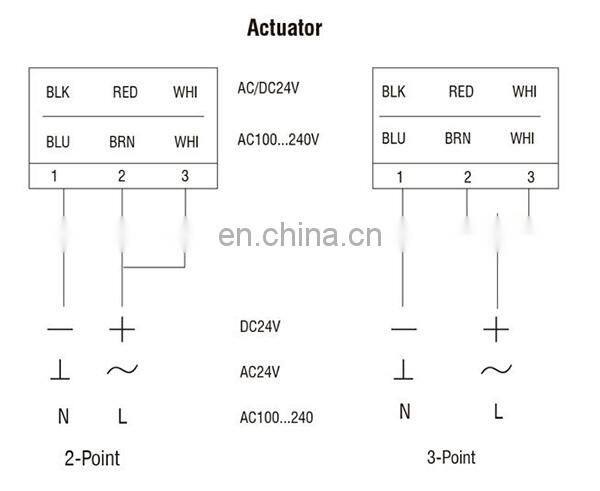

on/off type :

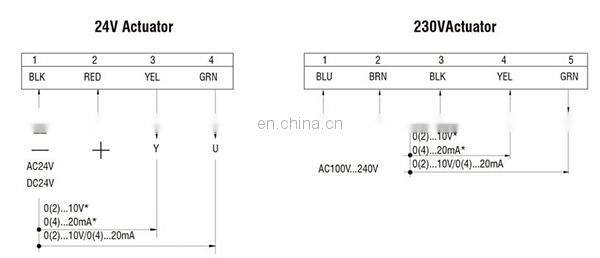

Modulating :

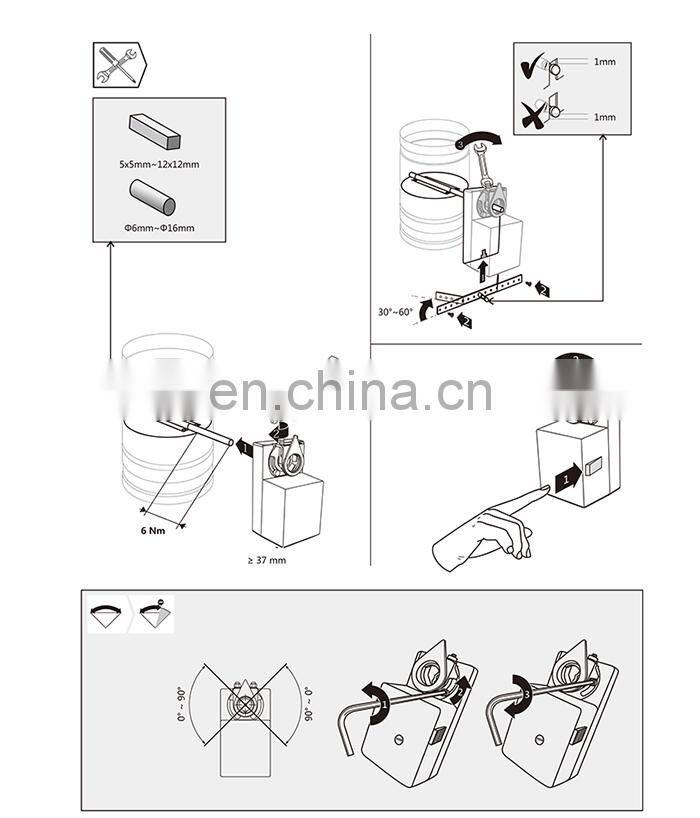

Installation Diagram
DA2MU series
Packaging & Shipping
1 piece per inner box, 12 pieces per master carton, 600 pieces per pallet.
each inner box with instruction manual, metal handler, torque arm, screws
provice OEM service.
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
