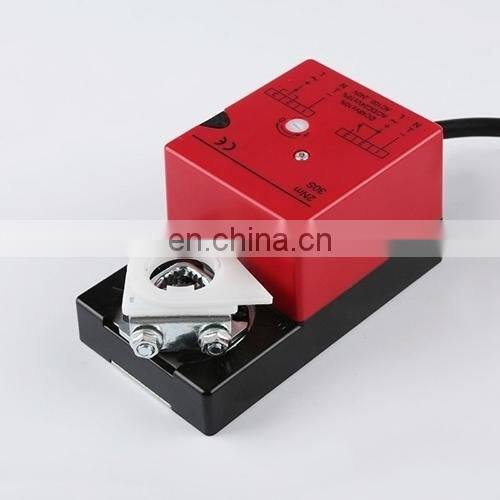

2Nm 24V AC/DC on-off type electric damper actuator for drive building automation system (HVAC)
- 1000 Piece / Pieces per Month
- T/T Credit Card
You May Like
-
2Nm 24V AC/ DC modulating type 0-10V control electric damper actuator for drive building automation system (HVAC)
-
4Nm 230V AC modulating type 0-10V control electric damper actuator for drive building automation system (HVAC)
-
High quality stainless steel 304 mini ball valve 2 way FXF G3/4" BSP
-
High quality stainless steel 304 G3/4" BSP mini ball valve MXM two way valve
-
High quality stainless steel SS304 G1" BSP mini ball valve FXM
-
High quality Stainless steel 304 mini ball valve pagoda 10mm x 1/2" Male thread
Product Details
| Brand Name | GOGO | Place of Origin | Zhejiang, China | |
| Model Number | DA2MU24-D | Application | General | |
| Structure | Control | |||
| Temperature of Media | Medium Temperature |
Product Description
4Nm 24V AC/DC on-off type electric damper actuator for drive building automation system (HVAC)
Overview:
For operation of air control dampers in HVAC system.
Toque : 2Nm
Nominal voltage : AC/DC 24V
Control : On/Off
Features:
Easy installation: through the universal shaft holder fixed to the throttle shaft.
Manual control: manual operation via buttons when needed.
High reliability: drive with overload protection, no limit switches, run to the end of their own to stop.
Mechanical limit: Built-in adjustable mechanical limit mechanical limit.
Output signal: in the range of 0-100% can output a switching signal.
-DS Type contains a set of auxiliary switch
Technical Parameters:
Torque: 2Nm
Life: a rotating 60,000 times
Wind board area: 1.5m2
Running time: 30S (90º)
Power supply: AC/DC 24V
Frequency: 50 / 60HZ
Direction of rotation: manually adjustable
Manual operation: with
Rotation angle: 0- 90 °, maximum 95º rotation angle can be adjusted by adjusting the mechanical limit
Position indicator: mechanical indication
Running state power: 5W, 0.5W standby
Noise: 45dB
Protection level: Ⅱ
Protection: IP44
Ambient temperature: -20 ~ + 50 ℃
Humidity: 5-95% RH
Damper shaft length:> 50mm
Throttle Week Specifications: 10_20mm circular shaft / 16 × 16 square shaft
Standard: CE compliance

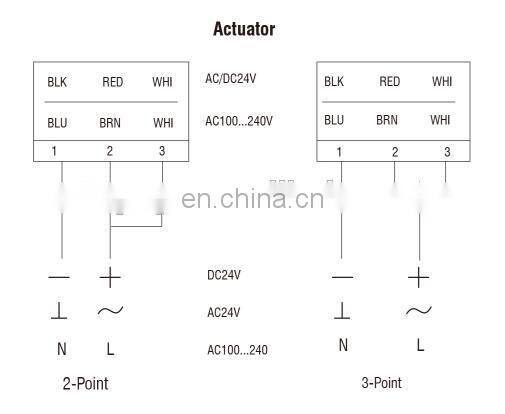

Wiring :
1.Inner packing: opp bag, then carton box for each product 2.Outer packing: export standard carton, Foam outside protecting the goods against damage 3.Usually we ship your order by sea or by air... 4.We do our best to ship your order within 1 week after receiving your payment 5.We'll tell you the tracking number once your order has been sent 6.We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Q: What is your main market?
A: Our main market is north America, especially USA.
Q: Are you products standard?
A: Our model is standard, if you have specific demand, pls tell us.
Q: Do you have interest to do our own design items?
A: Absolutely! We have big interest.
Q: How to make the order?
A: You can send us email or inquiry at alibaba directly. for samples order, you can go to our aliexpress shop and place the order.
