Original Autel MaxiIM IM608 ADVANCED IMMO & KEY PROGRAMMING Get Free Autel G-BOX2 and APB112 Simulator Www.obdfamily.net

Autel MaxiIM IM608 ADVANCED IMMO & KEY PROGRAMMING

Autel MaxiIM IM608 Highlights:

1. Free Update Online for 1 Year, after one year, it will cost $1100
2. Warranty for 12 Months.
3. ADVANCED IMMO & KEY PROGRAMMING
4. OE-Level Diagnostic and Service Functions as MaxiSYS Pro
5. with XP400 and MaxiFlash JVCI for ECU Programming
6. Language: English, Spanish and French. (We can ship to Spain and France now)

Kindly Note: Clients from UK and Portugal please do not buy AUTEL IM608 from China, or your device will get locked.

Description:

Autel MaxiIM IM608 is the most advanced and the unique all in one key programming and diagnostic tool that combines advanced key programming, all systems diagnostics, and advanced services in one Android based 10.1-inch touchscreen tablet. It is equipped with XP400 key programmer and MaxiFlash ECU programmer to provide complete coverage of IMMO and programming functions. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM608 provides you with all special functions. It is the unprecedented key programming and diagnostic tool that you ever wanted

IM608 is a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths. It combines the most advanced key programming and immobilizer experience with advanced automotive diagnostics and service functions, a 10-inch Android-based, touch-screen tablet with the latest in art. Autel MaxiIM IM608, a comprehensive, ideal immobilizer and key programming tool for automobile technicians and locksmiths.




Autel MaxiIM IM608 Features:

The IM608 is an OE-Level Diagnostic and Service Functions as MaxiSYS Pro with additional software and accessories for IMMO and key programming.
1. Extraordinarily powerful Cortex A7+A15 six-core processor
2. 10.1-inch LED capacitive touch screen with 1920x1200 resolution
3. Internal reliable 64GB On-board Memory for better performance
4. Built-in 8-megapixel rear camera with autofocus and flashlight
5. 802.11 a/b/g/n/ac Wi-Fi to access your favorite web resources
6. Open source Android Operating System for fast boot-up and multitasking
7. Powerful combination of advanced key programming/all systems diagnostics/advanced maintenance services
8. Professional key programming equipped with XP400 key programmer and MaxiFlash ECU programmer for complete Immo coverage
9. Smart mode for guided and automated key learning
10. Expert mode for advanced key learning
11. Read PIN/CS (all key lost), generate key, key learning, remote learning
12. IMMO ECU reset/adaptation, refresh/coding
13. Read/write transponder data, ECU/MCU/EEPROM data (eg. 9S12 encryption chip), IC card, detect remote frequency
14. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
15. Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, coding etc.
16. All special functions, EPB, DPF, SAS, Oil reset, BMS, TPMS sensor ID relearn, etc.

Autel MaxiIM IM608 Functions:

1. Read & Clear Fault Codes | Short description & code provided (can clear faults & warning lights)
2. Service Functions | Oil light / EPB / BMS / SAS / DAF etc
3. Access Live Data | Data from the ECU/Modulesnsors displayed in real-time (Oxygen sensor-rich/lean etc)
4. Actuation/Component Testing | Actuate (switch on/off) to diagnose functionality (relays, fans, locks etc)
5. Coding Functions | Allows you to change vehicle parts that need to be "coded" (Injectors, ABS, starters etc)
6. Flashing/ Reprogramming | Advanced updating/coding of ECU's online through a J2534 pass-through flashing device
7. Advanced Key Programming | IMMO functions, Transponder read/write/identify, MCU/EEPROM chip read/write



ADVANCED IMMO & KEY PROGRAMMING:

Connect the IM608 tablet to the vehicle (via the Bluetooth VCI or Main Cable) and to the XP400 (via USB cable) to access IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, etc. The software provides two methods to access IMMO functions
1. Smart Mode – for Guided and Automated Key Learning - step by step through a series of functions.
2. Expert Mode – for Advanced Key Learning - select a specific function.

1). PIN / CS Reading (Full Lost)
2). Key Generation
3). Key Programming
4). Command Introduction
5). Backup / Repair IMMO Data
6). IMMO ECU Brain Reset / Adaptation
7). IMMO ECU Brain Reset / Coding
8). BENZ 3rd Generation IMMO Key Splicing, Full Lost, Key Programming
9). BMW FEM / BDC Key Programming and ECU Adaptation
10). BMW CAS4 / 3/2 Key Programming
11). VW / AUDI MQB Key Programming, 48 Transponder (96-bit) Key Splicing, Full Lost, A6 Full Lost and More ...



XP400 KEY & CHIP PROGRAMMER Introduction:

Connect the IM608 tablet to the XP400 Key Programmer (no vehicle connection required) to access the key chip, read, retrieve and write key information, as well as other key related functions. The XP400 includes 12 ports:

1. DC Port – provides 12V DC power supply.
2. USB Port – provides data communication and 5V DC power supply.
3. DB 26-Pin Port – connects with the Mercedes Benz infrared cable, vehicle key cable, ECU cable, MCU cable, MC9S12 cable.
4. Cross Signal Pins – holds the MCU board, MCU spare cable or DIY signal interface.
5. IC Card Induction Area
6. Vehicle Key Slot – holds the vehicle key.
7. Transponder Slot – holds the transponder.
8. Remote Control Transponder Induction Area Figure 2-5 XP400 Views 11
9. Mercedes Infrared Key Slot – holds the Mercedes infrared key.
10. Status LED – indicates the current operating status.
11. Locker – locks the EEPROM component transponder slot to ensure proper functioning.
12. EEPROM Component Transponder Slot – holds the EEPROM plug-in transponder or EEPROM socket.







ADVANCED SERVICE FUNCTIONS

1. ECU Coding
2. All Special Functions, EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Re-Programming etc.
3. 10.1-inch LCD Touch Screen-64GB Memory-Android Kit Floor-TURKISH LANGUAGE Support-15000mAh Li-polymer Battery-8.0 Megapixel Camera-Wi-Fi-Bluetooth



Autel MaxiIM IM608 IMMO Vehicle List:
Audi:
A1,A3,A4,A5,A6,RS4,B6,B7,RS5,RS6,A4 Allroad,A8,S8,Q3,RSQ3,Q5,Q7,R8,TT,

Seat:
Alhambra,Altea,Altea,Cordoba,CupraLeon,Exeo,Ibiza,Leon,Mii,Toledo

Skoda:
Citigo,Fabia India,Fabia,Kamiq,Karoq,Octavia,Rapid India,Rapid,Roomster,Superb,Yeti

VW:
Amarok,Arteon,Atlas,Beetle,Bora,BoraGli,Caddy,Crafter,EOS,Fox Africa,,Fox EU,Fox,GTI,Gol County,Gol(5U),Gol(5W),Golf PLUS,Golf/Rabbit(1K),Golf6 ESTATE,Jetta,Parati,Passat,Phaeton,Polo,Scirocco,Sharan,Suran,T-Roc,Tiguan,Touareg,Touran,Transporter5/Multivan,up,UP!/cross UP!

Fiat:
500,500L,500X prox,Albea,Boxer,Daily,Doblo,Doblo New,Ducato,Egea,Fiorino,Freemont,,Idea,Grande punto
,Jumper,Linea,Marea,Nemo,Ottimo,Palio,Palio RST,Panda,Perla,Promaster,Punto,Sinea,Stilo,Viaggio

More  Autel MaxiIM IM608 IMMO vehicle models please check here:
/measurecarApp-1-1.html?m=94&proTypeCode=IM608(IMMO)&operatorType=2

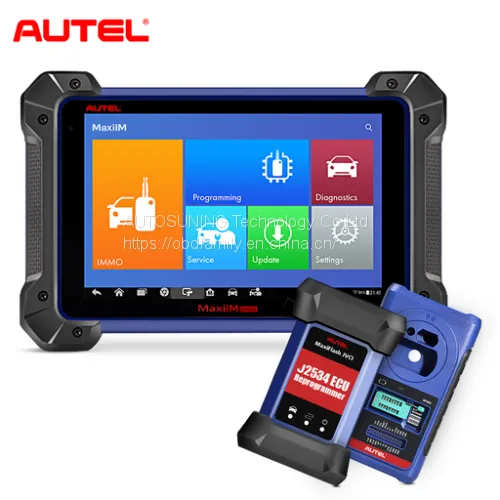

Autel MaxiIM IM608 Main Unit Overviews:



Autel MaxiIM IM608 Packling List:

1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)
1x APA103(EEPROM Clamp)
1x XP400
1x APB102 MB IR Cable
1x APA104 ECU Clamp
1x Main Cable
1x APB104(MCU_FQFP64)
1x APA105(MCU Clamp)
1x USB Cable (2m)
1x APB105 MCU_FQFP80
1x APA106(MC9S12 Clamp)
1x Mini USB Cable
1x APB106(MCU_FQFP144)
1x APA107(Connect Cable)
1x AC/DC 12V Adapter
1x APB107(MCU_FQFP144)
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108(MCU_FQFP176)
1x Packing List
1x Cigarette Lighter
1x APA002(EEPROM Socket)
1x Carrying Case 634*170*404mm
1x AAC001
