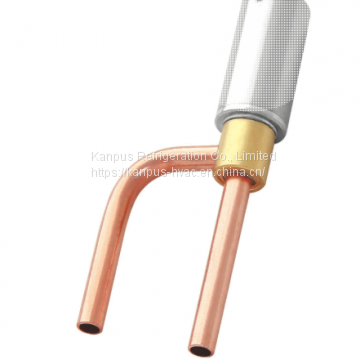

Help CenterElectronic Expansion Valve DPF (brass Valve, Electronic Valve, Refrigeration Valve)
Related Products
-
Refrigeration Solenoid ValveNegotiableMOQ: 100 Pieces -
Refrigeration Solenoid ValveNegotiableMOQ: 100 Pieces
-
Copper Access Valve, Brass Charging ValveNegotiableMOQ: 10000 Pieces
-
Refrigeration Sight Glass, Brass Moisture Indicator, Air Conditioning Part, HVAC/R PartNegotiableMOQ: 100 Pieces
-
Refrigeration Flare Sight Glass, Brass Moisture IndicatorNegotiableMOQ: 100 Pieces
Product Features
◆Smaller installation space: lower height, smaller volume, lower weight ◆High reliability ◆Low energy consumption ◆Suitable for reversible systems, such as heat pumps: bidirectional flow.
Function Introduction
DPF(J)1.3~2.0 small size electronic expansion valve is mainly used in household frequency conversion air conditioning system to achieve automatic adjustment of refrigerant flow.It makes the air conditioning system maintain the best operating conditions, to achieve rapid cooling, heating, accurate temperature control, power saving and other purposes. The valve has a two-way and reversible function.It also has many advantages, such as small size, advanced structure, reliable performance and good-looking,etc.

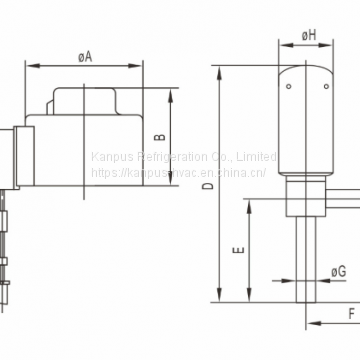

Coil Model
| Order No. | Coil code | DN | Dimensions(mm) | |||||||
| A | B | C | D | E | F | G | H | |||
| 35005 | M04 | 1.3~2.0 | 38 | 33.5 | 700 | 82 | 36 | 30 | 6.35 | 17.4 |
| Note:The recommendation of leading wire:500mm、700mm、1000mm、1500mm | ||||||||||
Valve Body Model
| Order No. | Model No. | DN | R22 capacity KW | Fully open pulse |
Open valve pulse |
Pulse frequency |
Maximum operating pressure difference |
Connecting pipe size |
Maximum working pressure |
PCS/CTN | ||||
| R22 | R407C | R410a | R22 | R407C | R410a | |||||||||
| 35009 | DPF(J)3.2 | ø3.2 | 28.2 （8.0） |
500 | 32±20 | 30~90 | 2.26 | 2.48 | 0~79P：≥2.26 79~500P：≥3.43 |
ø6.35x0.7 | 3 | 3.3 | 4.2 | 160 |
| 35008 | DPF(J)3.0 | ø3.0 | 21.1 （6.0） |
160 | ||||||||||
| 35007 | DPF(J)2.4 | ø2.4 | 17.6 （5.0） |
3.43 | 160 | |||||||||
| 35006 | DPF(J)2.2 | ø2.2 | 10.6 （3.0） |
160 | ||||||||||
| 35000 | DPF(J)2.0 | ø2.0 | 8.8 （2.5） |
160 | ||||||||||
| 35001 | DPF(J)1.8 | ø1.8 | 7 （2.0） |
160 | ||||||||||
| 35002 | DPF(J)1.6 | ø1.6 | 5.25 （1.5） |
160 | ||||||||||
| 35003 | DPF(J)1.5 | ø1.5 | 4.38 （1.25） |
160 | ||||||||||
| 35004 | DPF(J)1.3 | ø1.3 | 3.5 （1.0） |
160 | ||||||||||
