AC/DC Desktop Computer Power Supply 80Plus Bronze/Silver/Gold /Platinum 500W Series

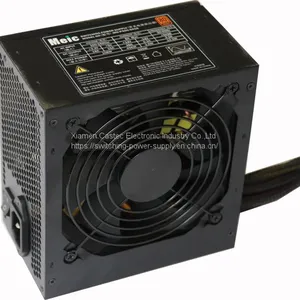

AC/DC Desktop Computer Power Supply 80Plus Bronze/Silver/Gold /Platinum 500W Series thumbnail-1
AC/DC Desktop Computer Power Supply 80Plus Bronze/Silver/Gold /Platinum 500W Series thumbnail-2
AC/DC Desktop Computer Power Supply 80Plus Bronze/Silver/Gold /Platinum 500W Series photo-1

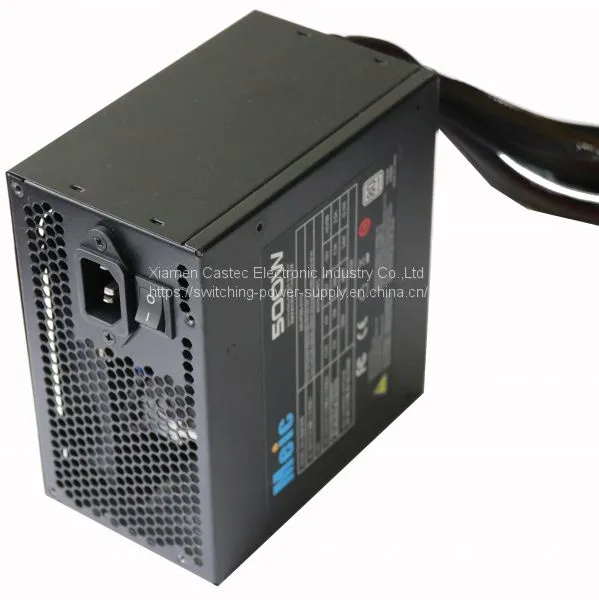

AC/DC Desktop Computer Power Supply 80Plus Bronze/Silver/Gold /Platinum 500W Series photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Meic
Place of Origin:
China
Model Number:
MN-P500-2112
Contact Supplier Request Quote Chat Now
Xiamen Castec Electronic Industry Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Meic
Place of Origin China
Model Number MN-P500-2112
Interface Type 24Pin
Products Status Stock
Application Desktop, Server
Rating Power 501W - 600W

Part Number

PFC

Input Voltage

MN-P500-2112

Active PFC

100-240Vac

FEATURES

=   Dual Switch Forward  Converter design architecture

=115V-230Vac input with active  PFC design

= 12V to 3.3V D-D VRM layout

=  80% efficiency

= Support Intel Core i5 & i7

= Support AMD Phenom &CPU Athlon CPUs

= 90~264Vac wider AC input range to cope with voltage instability

= Compliance with ErP Lot 6 2013: 5Vsb AC input 0.5W at standby & off mode

GENERAL SPEC.

Hold-up Time                  16ms@70% load @230V/50Hz Dimensions  165 x 150 x 86 (mm)

MTBF                                100KHrs

Output Rise Time           0.2~20ms PG Signal Rise Time



ENVIRONMENTAL SPEC.

Operating Temperature     0 ~ 40°C Storage Temperature       -40 ~ 70°C


INPUT SPEC.

Input Voltage Range                100-240Vac Input Frequency Range        47Hz-63Hz

AC Input Current                       4A@200-240V

PFC (Harmonic)                        Meet EN61000-3-2 Class D

EMI/RFI                                       CISPR 22 Class B



OUTPUT SPEC.

Output Power       500W Peak. Power     600W

Efficiency              85%@20% load; 82%@50% load; 85%@

100% load

OVP                        +3.3V:4.5V, +5V:7V, +12V:15.6V

OCP                       +3.3V, +5V, +12V shut down at each output

OTP                        Latch off all main outputs if over temperature

SCP                        Latch off all main outputs reset by cycling on/off control or AC power






Product Tags: Desktop Power Supply , AC/DC Power Supply , Computer Power , Active PFC Power Supply , Switching Power Supply , Closed frame
