Brand Name Genew
Place of Origin China
Model Number CSFB

Genew Core Network Family:


Core Network mSwitch IMS Based on the aTCA/ x86/ Cloud Deployment;  Support 5M subs;  Support 1+ 1 Redundancy & Geographic Redundancy;  Accompanied with powerful I/S/P-CSCF,  MRFC,  BGCF,  MGCF,  AGCF,  iUMG,  iSG,  PCRF,  O&M,  HSS,  Provisioning/ENUM,  BOSS,  EMS,  AS,   SBC,  etc.
mSwitch 5G Core Based on the NFV/Cloud Deployment;  Support 5M subs;  Support 1+ 1 Redundancy & Geographic Redundancy;  Accompanied with powerful AMF,  AUSF, SMF, UPF together with MEC.
mSwitch 4G core Based on the aTCA/ x86/ Cloud Deployment;  Support 5M subs;  Support 1+ 1 Redundancy & Geographic Redundancy;  Accompanied with powerful O&M,  EPC,  MME,  P/S-GW,  EMS,  etc.
mSwitch 3G core Based on the aTCA/ x86/ Cloud Deployment;  Support 5M subs;  Support 1+ 1 Redundancy & Geographic Redundancy;  Accompanied with powerful CS domain,  MSC pooling,  SGSN,  GGSN,  EMS, etc.

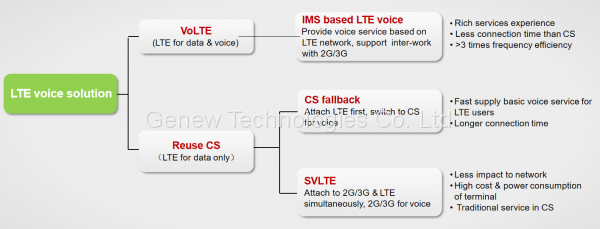

Major Deployment Options of LTE Voice

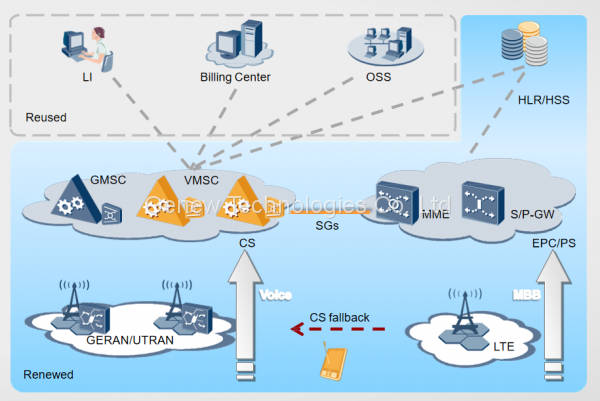

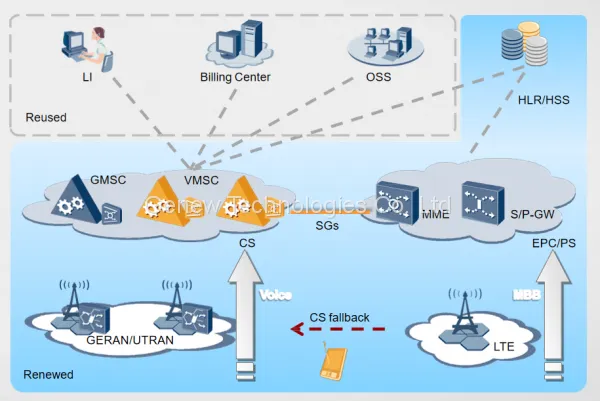

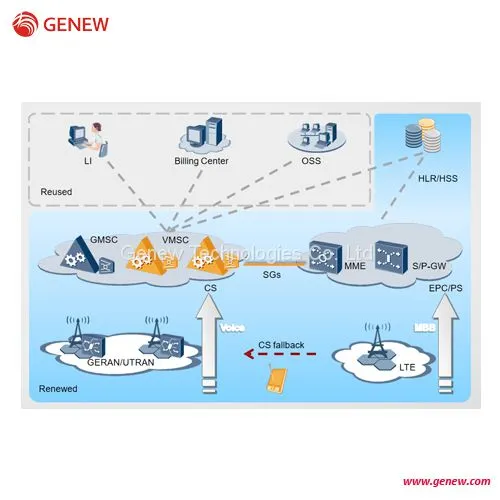

CS Fallback Solution Overview



Terminal

CSFB capable terminal

Radio network

Optional upgrade of BSC/RNC

according to CSFB mechanism

Core network

Upgrade VMSC to support CSFB

function. Or deploy CSFB proxy

New SGs interface connect to MME

Provision

Convergent HLR/HSS for 2G/3G/4G

user is recommended.

No change to LI and charging


NEs List in CSFB Deployment


NE

Function Description

HSS/HLR

Support 2G/3G/4G subscription data. Convergent HSS for 2G/3G/4G recommended to get a simple user data  management

MSC

Support CSFB function, or deploy a new MSC as CSFB proxy

SGSN

No requirements if using R8 Redirection fallback mechanism


RNC/BSS

Support sending the page response to MSC when the page request sent by MME, not through the BSC/RNC

Support 3GPP R8 phase and can broadcast 4G adjacent area information

Fast return to LTE after CS service is recommended to be triggered by BSC/RNC for better user experience

SCP/RBT/SMC

NA

STP

Support FNR(flexible number routing) function while using different HLR/HSS for 2G/3G and 4G user

MME

All the new MME should support CSFB and select a MSC in the Pool base on IMSI-Hash

eNodeB

Support CSFB function and R8 redirection fallback mechanism in blind mode at least



Provision

Support sending data to HSS or HLR based on the user’s type. If the user is 4G, the data should send to HSS and  STP with FNR. if the user is 2G/3G ,the data should send to HLR

Delete the 3G /2G data in HLR when user upgrade to 4G in HSS

Reuse existing CS for LI and charging
