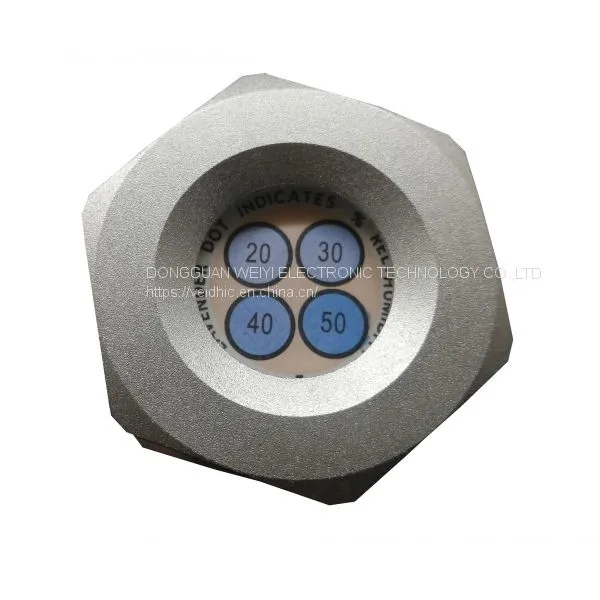

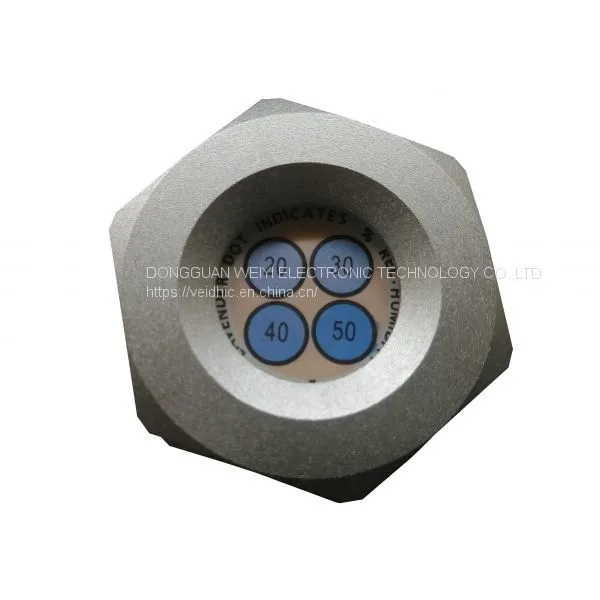

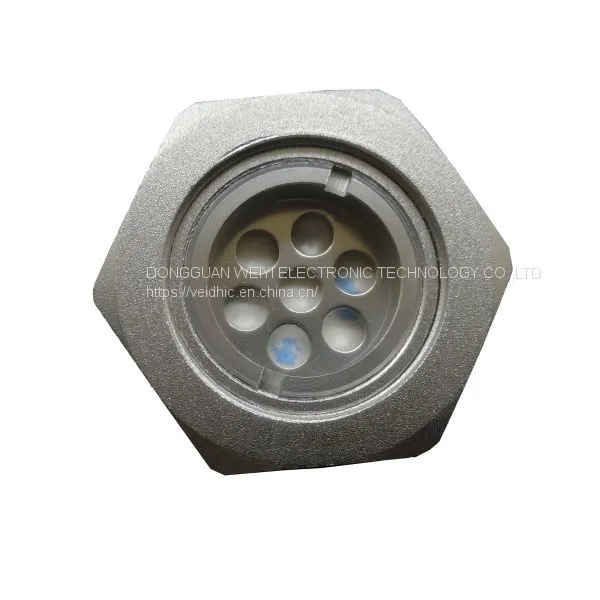

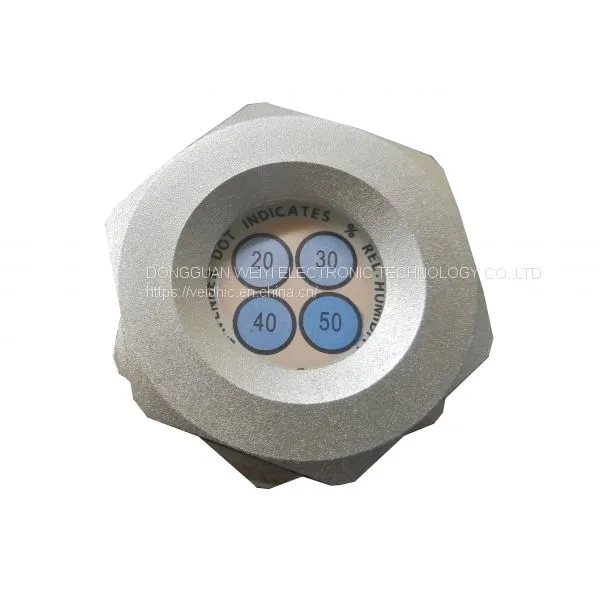

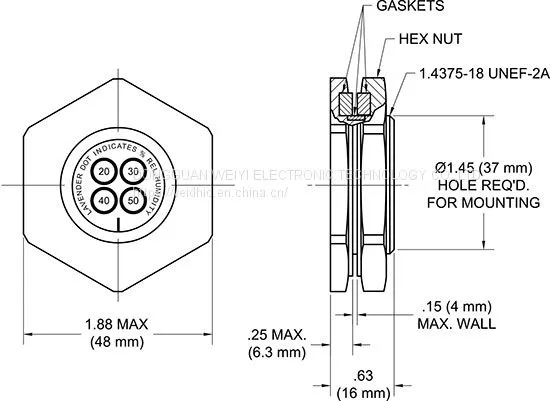

This is a larger-sized clear anodized aluminum Humidity Indicator Plug. It may be installed in a flexible barrier through a 1.45 in. (37 mm) diameter hole. Nut and two gaskets are furnished. It may also be installed in a 1.45 in. (37 mm) diameter hole in a rigid container by removing one gasket and reversing the nut.
SPECIFICATION--- WY-05HIP
Name |
Humidity Indicator Plug |
Part Number |
WY- 05HIP |
Mounting Hole Diameter |
1.45 in (37 mm) |
Window Diameter |
1.00 in (25.4 mm) |
Maximum Internal Pressure |
10 psi |
Finish |
Clear anodized |
Thread size |
¾”-14 Straight pipe |
Recommended Installation Torque |
30 - 40 in. - lbs. (3.4 - 4.5 N·m) |
Maximum Wall Thickness |
0.23 in. (6 mm) |
Body Material |
Aluminum |
Internal O-Ring Material |
IAW MIL-PRF-6855 |
External Gasket Material |
IAW MIL-PRF-6855 |
Military Specifications |
SAE AS26860 Type II |
CONFIGURATION | |||
PART NUMBER |
HUMIDITY INDICATION |
STYLE |
COMPLIANCE |
WY- 05HIP-246Y |
20/40/60 |
PIE |
N/A |
WY- 05HIP-357Y |
30/50/70 |
PIE |
N/A |
WY- 05HIP-123Y |
10/20/30 |
PIE |
N/A |
WY- 05HIP-234Y |
20/30/40 |
PIE |
N/A |
WY- 05HIP-345Y |
30/40/50 |
PIE |
N/A |
WY- 05HIP-456Y |
/40/50/60 |
PIE |
N/A |
WY- 05HIP-2345Yp |
20/30/40/50 |
PIE |
N/A |
WY- 05HIP-3456Yp |
30/40/50/60 |
PIE |
N/A |
WY- 05HIP-40Y |
40 |
SPOT |
N/A |
WY- 05HIP-60Y |
60 |
SPOT |
N/A |
WY- 05HIP-2345Ys |
20/30/40/50 |
SPOT |
MIL-Std-2073-1 Method 50 AS262860 |
