ZN63A-12 (VS1), (24kV Avl) AC High Voltage Vacuum Circuit Breaker (VCB)

Zhebao Electric (Hangzhou) Group Co., Ltd.
ZN63A-12 (VS1), (24kV Avl) AC High Voltage Vacuum Circuit Breaker (VCB) thumbnail-1
ZN63A-12 (VS1), (24kV Avl) AC High Voltage Vacuum Circuit Breaker (VCB) thumbnail-2
ZN63A-12 (VS1), (24kV Avl) AC High Voltage Vacuum Circuit Breaker (VCB) photo-1

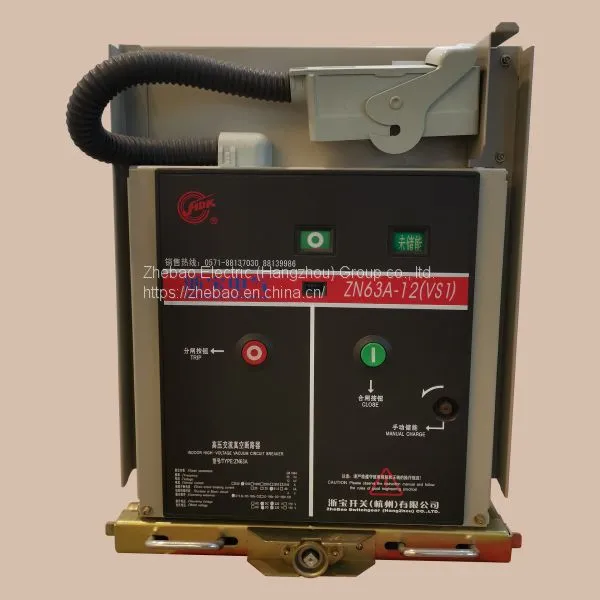

ZN63A-12 (VS1), (24kV Avl) AC High Voltage Vacuum Circuit Breaker (VCB) photo-2
US$ 1000 - 20000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Zhebao Electric
Place of Origin:
China
Model Number:
ZN63A-12 (VS1), (24kV avl)
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Zhebao Electric
Place of Origin China
Model Number ZN63A-12 (VS1), (24kV avl)

● Model: ZN63A-12 (VS1), (24kV avl)

● Name: AC High Voltage Vacuum Circuit Breaker (VCB)

● Rated frequency: AC 50Hz / 60Hz;

● Rated voltage (Ue): 12kV;

● Power frequency withstand voltage (1min): 42kV;

● Rated impulse withstand voltage (Uimp): 75kV;

● Rated current (Ir): 630A 1250A 1600A 2000A 2500A 3150A 4000A;

● Short time withstand current (Icw) (4s): 25kA 31.5kA 40kA;

● Short circuit drop-out current: 25kA 31.5kA 40kA;

● Phase spacing: 150/ 210/ 275mm;

● Install mode: trolley, fixed;

● Common insulating tube structure;

● Spring operating mechanism 10k time;

● Standard: IEC62271-100, IEC60694


Product Tags: VCB , AC , High , voltage , vacuum , circuit , Breaker , ZN63A , zhebao
