HOWO 10 Wheeler Diesel 50t Heavy Cargo Truck
Chassis Model: ZZ1257M3247C
Engine: WD615.47, 371hp, Euro II
Cabin: HW76, 2 seats & 1 sleeper, with A/C & deflector(cabin hat)
Front Axle: HF9(drum). 1x9 ton loading capacity
Rear Axle: HC16(drum), 2x16 ton loading capacity
Transmission: HW19710, 10 forwards & 2 reverse
Steering: ZF8118 hydraulic steering with power assistance
Tires: Radial 12.00R24, 10pcs+1 spare tire, with 2 U-Pull
Oil Tank: 400L+400L
Box Size: 7500x2300x1500mm, bottom 4, side 3mm
Color: yellow, white, blue, red for option
Specification
Cabin |
Model |
SINOTRUK HW76 Lengthen cab |
HW76 Long cab, with two seats and one sleeper, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air conditioner with transverse stabilizer, with 4-point support fully floating suspension + shock absorber and deflector(cabin hat) | ||
Make |
SINOTRUK |
|
|
Engine |
Model |
WD615.47(Euro II) |
Type |
4-stroke direct injection diesel engine, 6-cylinder in line with water cooling, turbo-charging & intercooling |
|
Horsepower |
371hp |
|
Maximum output Kw/r/min |
273/2200 |
|
Maximum torque N.m/r/min |
1500/1100-1600 |
|
Bore x Stroke |
126x130mm |
|
Displacement |
9.726L |
|
|
Transmission |
SINOTRUK HW19710,10 forward and 2 reverse |
|
I II III IV V VI VII VIII IX X | ||
14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1 | ||
R1-13.91 R2-3.18 | ||
Clutch |
SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
|
Steering |
ZF8118 ( left hand driving) hydraulic steering with power assistance. |
|
Front Axle |
SINOTRUK HF9(1x9000kgs loading capacity), equipped with drum brakes, steering with double T-cross section beam |
|
Rear Axles |
SINOTRUK HC16(2x16000kgs loading capacity) Pressed axle housing, central double reduction with differential locks between wheels and axles |
|
Brake System |
Service brake:dual circuit compressed air brake |
|
Electrics |
Operating voltage: 24V, negative grounded Starter: 24V, 5.4Kw Alternator: 3-phase, 28V, 1500w Batteries: 2x12V,165Ah |
|

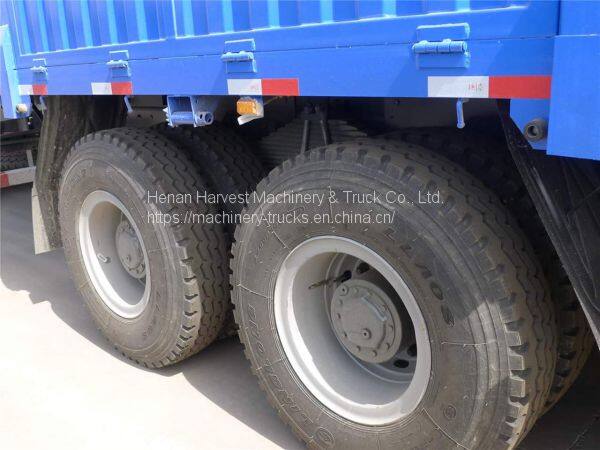

Tires |
Radial 12.00R24, 10pcs+1 spare tire |
|
Oil Tank |
400L+400L(2 oil tank) |
|

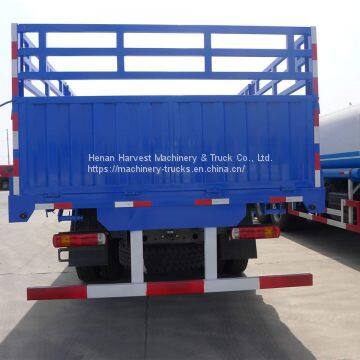

Cargo Box |
7000x2300x1500mm, bottom 4mm, side 3mm |
|
Overall Dimension |
9614x2496x3450mm |
|

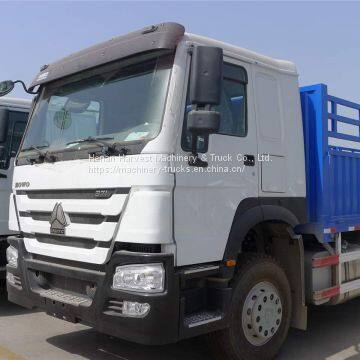

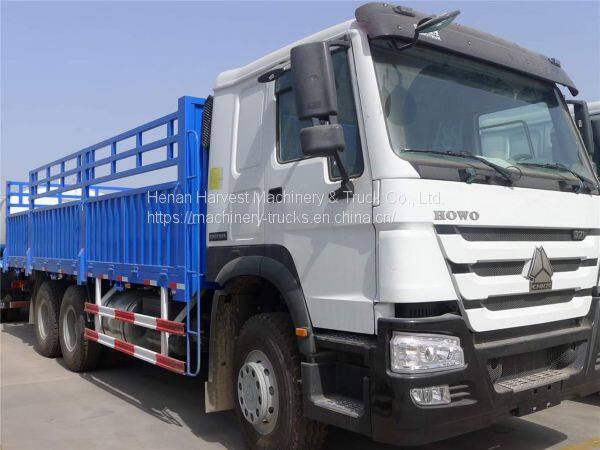

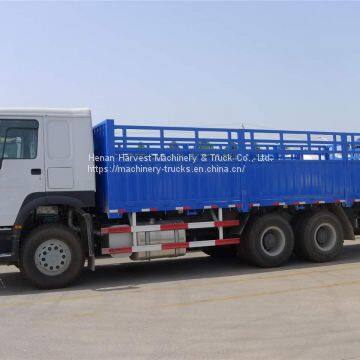

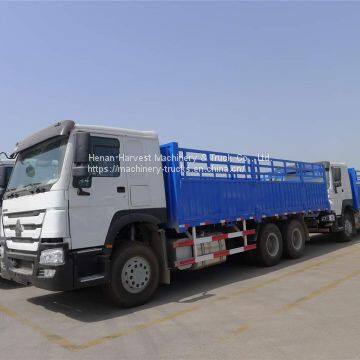

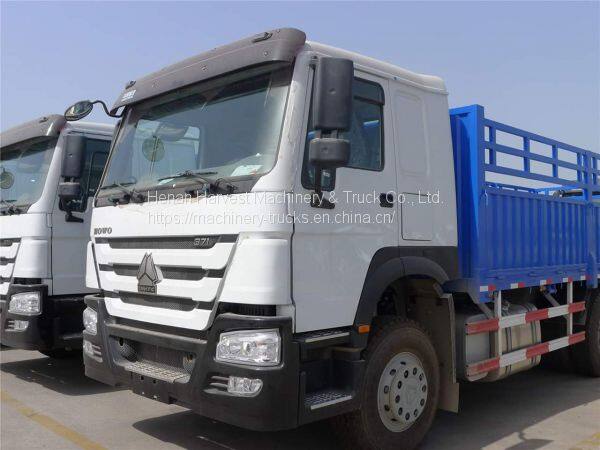

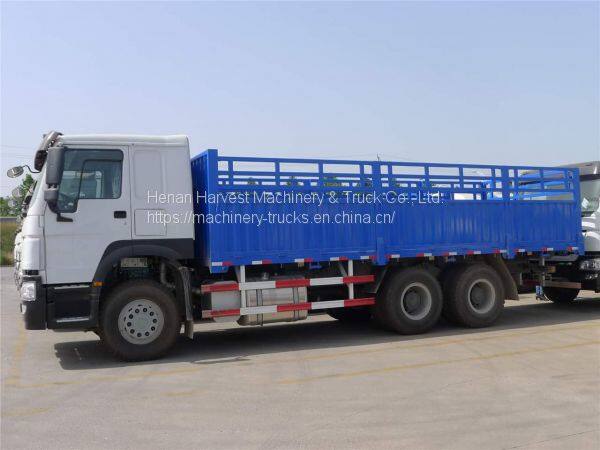

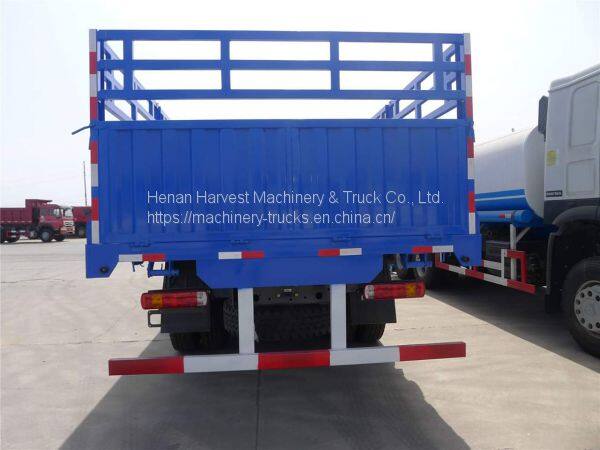

Pictures
