Cheap AAC Block Production Line, AAC Plant, AAC Panel Production Line

Quick Details:

Type: AAC Autoclave   Size: Φ2.5*31m (according to your requirement)

Heating medium: saturated steam                      Rail distance & height: 800×200(General) (can be design according to buyer)

Light rail: 15kg/m (China-standard)                     Admission direction: both middle-sides inlet

Door opening form: double upside opening      Inlet pipe diameter:DN100

Plate thickness: 20mm                                          Designed temperature: 204 Celsius degree

Designed pressure: 1.6 Mpa                                Working temperature: 201 Celsius degree

Working pressure: 1.5 Mpa                                   Hydraulic test: 2.1 Mpa

Safety valve working pressure: 1.58Mpa            Working medium: saturated steam

Heating method: High temperature steam        Main pressure parts: Q345R(GB713), 16MnⅡ (NB/T47008)

Designed service life: 20 Years                           Weight: 58 Tons

The enclosure dimensions are 33m×3m×2.9m . (nude package)

Raw Material: sand lime brick, cement, flyash brick, slag brick, aerated concrete block, etc.

After-sales service

What is AAC ?

1. Aerated Autoclaved concrete block (light block ) is the light and porous building material. It has light ,keeping temperature , Environmental protection,can't burn and other advantages.it has a wide prospect of market.it is the main building material in the future. it can be made into many kinds of bricks(for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.

2.Areated concrete common conception.Common concrete density is usually 1600-2400kg/m3,but areated concrete are 500kg/m3,600kg/m3,700kg/m3.It has not the big grain,main use silicon material (for example:flyash,sand,stone dust and others ),through making the material small for example sand,they can be used directly if has enough degree of small (for example fly ash.Mixing calcium material lime, cement water to a special slop,then add the aluminum dust and the additive.Make the aluminum dust and the special slop have a Chemical reflect.then produce Hydrogen to make the concrete slop to expanding or swell,foam.Next,put them into the curing room to concreting cutting steaming curing,last,there will bacome the light brick,the porous rate is 70-80%.

Feature of AAC:

AAC land and workshop require:

Product Description:

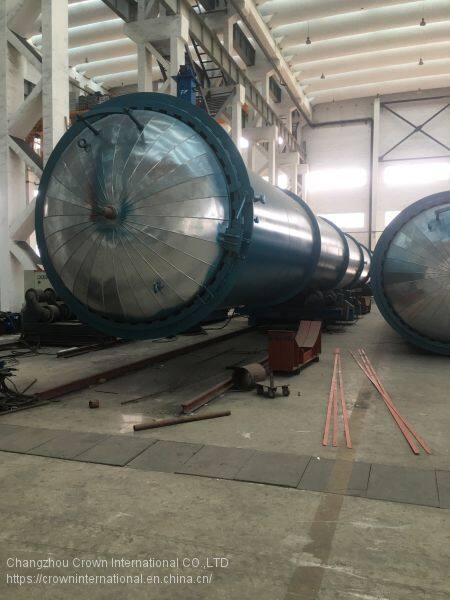

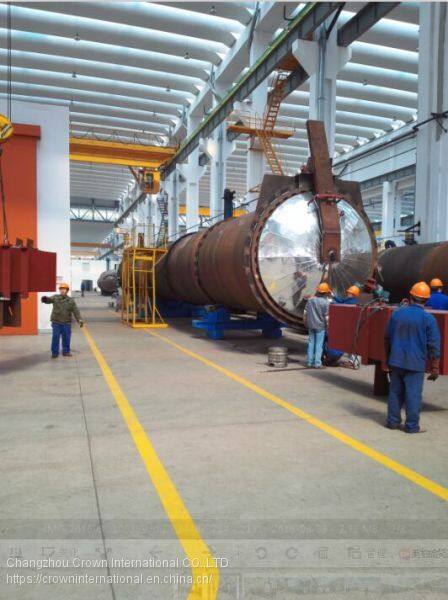

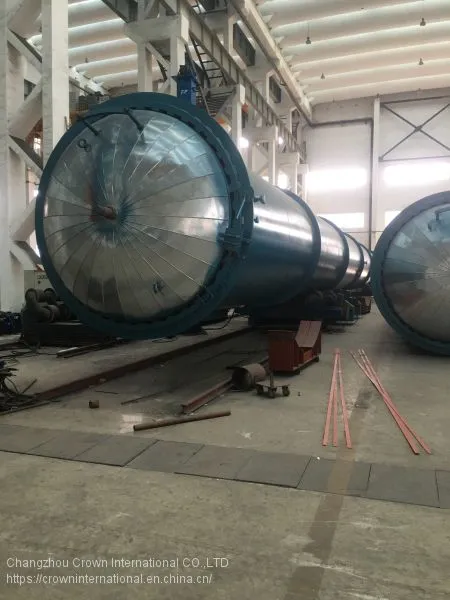

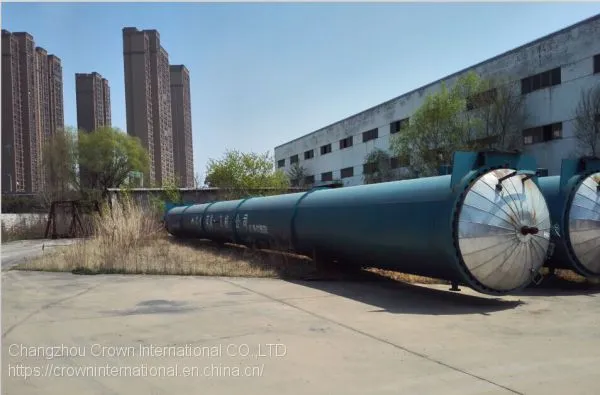

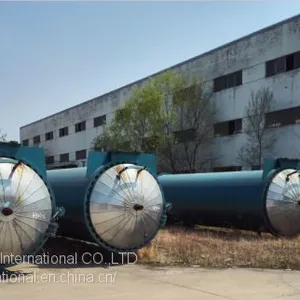

Autoclave is key equipment which has a widely application in building material factory to autoclaved cure different kinds of building materials. It is also used in areas of chemical, textile, wood, Glass, Brick, metallurgy, Rubber, military industry. Convenient operation, security and reliable are its advantages.

Autoclave belongs to pressure vessel which has explosion risk. According to the supervision regulation on safety technology for pressure vessel on divide standard of pressure vessel, the product is part of first and second class pressure vessel. Before putting into operation, the end-user must register in the local boiler and pressure vessel safety supervision organization and acquire the operation permit, at the same time it must accept supervision and inspection.

Advantages of Autoclave

1. Patents we possess at present:

Specifications:
