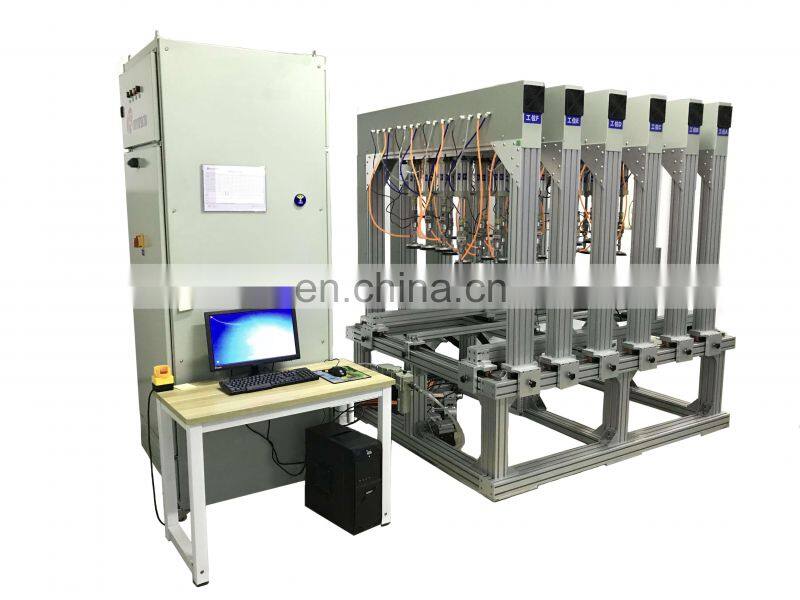

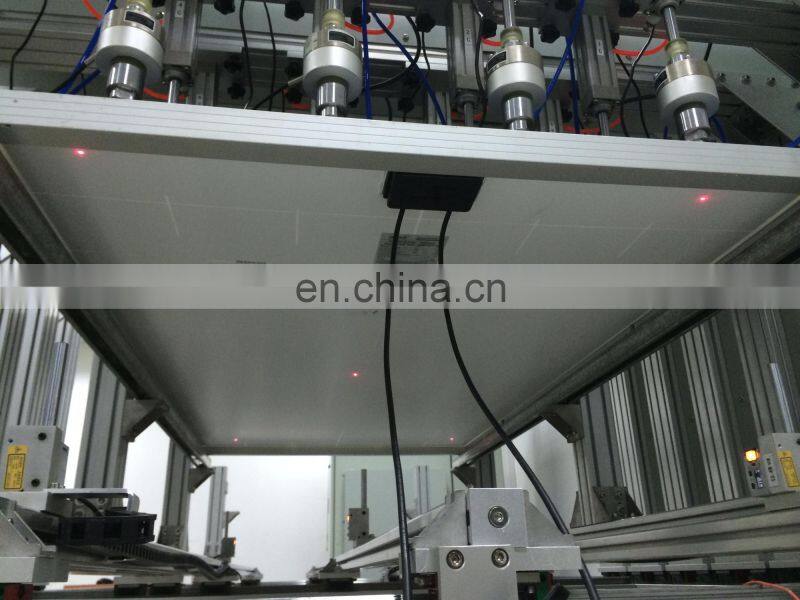

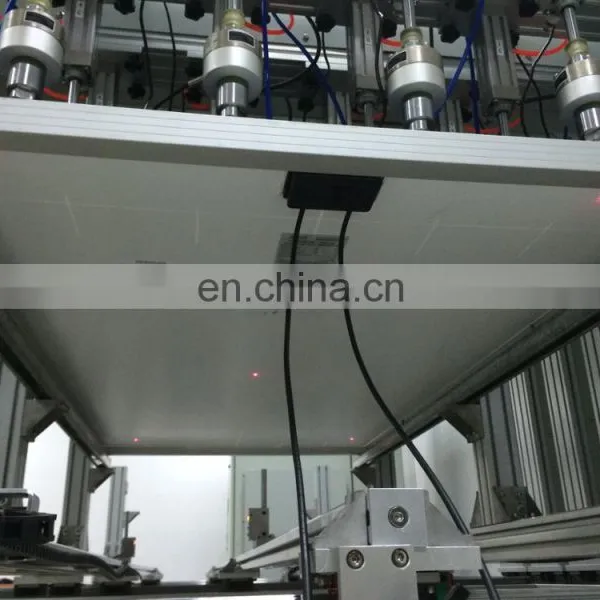

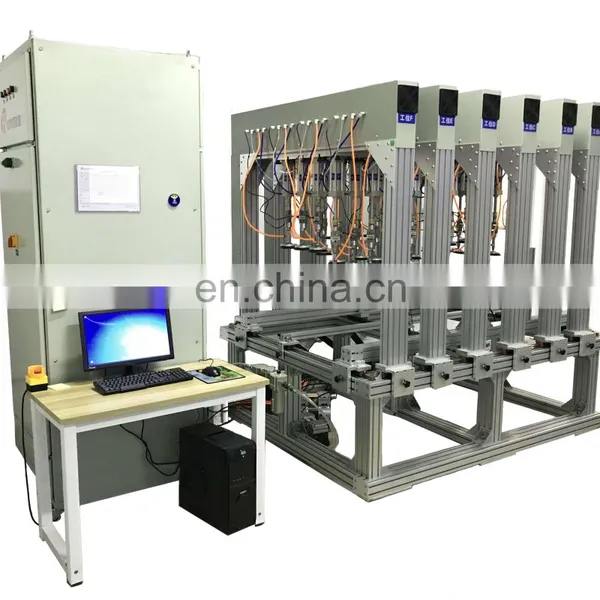

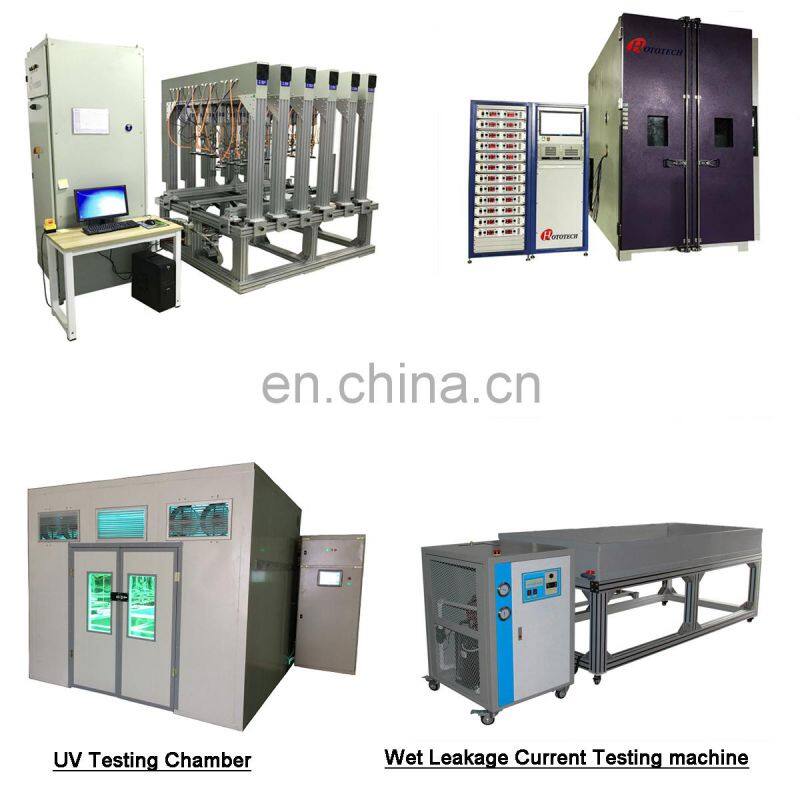

Dynamic Mechanic Loading Tester/Solar panel testing equipment / PV Module testing machine with IEC61215 & IEC61730 testing
Testing standard
It's conform IEC61215-22:2016 & IEC61730-2:2016 testing standard
Purpose
This test is to determine the ability of the module to withstand wind , snow , static or ice loads
The Main Technical Specifications
The machine test stand appearance dimension |
approx:L 2650 × D 23200 × H ×2650 mm |
Test Positive load |
the maximum arrived +10000Pa |
Reverse load |
the maximum arrived -6000Pa |
Cycle times |
free setting |
Dynamic load test frequency |
7s±3s |
Dynamic load |
1000Pa,1000 cycles |
| Pressure control accurate |
5% |
|
Pneumatic and force value feedback ways |
low friction force cylinder,tensile pressure sensor(accurate 0.1N) |
| The maximum test dimension | 2000×1000mm (customized) |
Cylinder |
4 groups |
| Sucker | 32 pcs ( one cylinder attached 4 suckers) |
| Control ways | Computer control |
| Electricity | 220V 50HZ |
Testing Procedure
1.Equip the module so that the electrical continuity of the internal circuit can be monitored continuously during the test
2.Mount the module on a rigid structure using the method prescribed by the manufacturer including the mounting means (clips/clamps and any kind of fastener) and underlying support rails, if t here are different possibilities each mounting method needs to be evaluated separately , for all mounting methods , mount the module in a manner where the distance between fixing points is worst case, which is typically at the maximum distance. 3.On the front surface , gradually and uniformly apply the test load, load uniformity needs to be better than ±5% across the module with respect to the test load, maintain his load for 1h
4.Apply the same procedure as in step c to check back surface of the module or as uplift load to the front surface
5.Repeat step c and d for a total of three cycles
