IEC61215 UL1073 Damp-heating Testing Machine (environment Chamber) / Testing Equipment

Damp -heating testing machine (environment chamber)

Standard:

According to IEC61215,UL1703 standard requirement

Purpose:

To determine the ability of the module to withstand the effects of long -term penetration of humidity

Technical specifications

1,Test temperature:85℃±2℃

2,Relative humidity:85%±5%

3,Temperature fluctuation:≤±1℃

4,Temperature deviation:≤±1℃

5,Temperature uniformity:≤2℃

6,Humidity range:30~95%RH

7,Relative humidity deviation:≤±2.5 %RH(Humidity>75%RH)

8,Common moisture point:85℃/85%RH continue time≥1000h 90℃/90%RH continuity≥1000h

9,Touch screen +PID intelligence control

10,Can placed 12 PCS test modules

11,Inner chamber size:approx 1.5×2.5×1.5m (L*W*H)

12,Outer chamber size:approx 2.5×3.0×2.5m (L*W*H)

13,Inner chamber material:Stainless steel(SUS #304)

14,Outer chamber material:Steel plate baking finish

15,PID automatic calculus

16,Thermal insulation material: hard foam and glass wool

17,Chamber door :double type

18,With cut off program memory:restart after can automatic restart and continue perform program function

19,Communicate interface:RS-232 or RS-485 communicate interface

20,Air supply circulation system:Motor

21,Refrigerant:Environmental protection refrigerant; condenser: water-cooled

22,Interface show:Touch screen control

23,Language: Chinese and English change each other

24,data acquisition:Export, view graphic function

25,Power:380V 60HZ

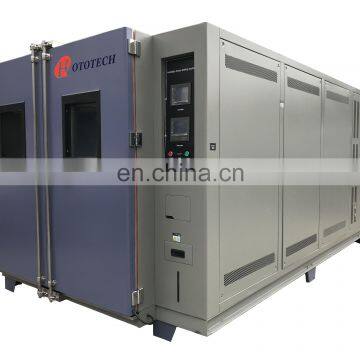

Damp -heating testing machine (environment chamber)

picture show
