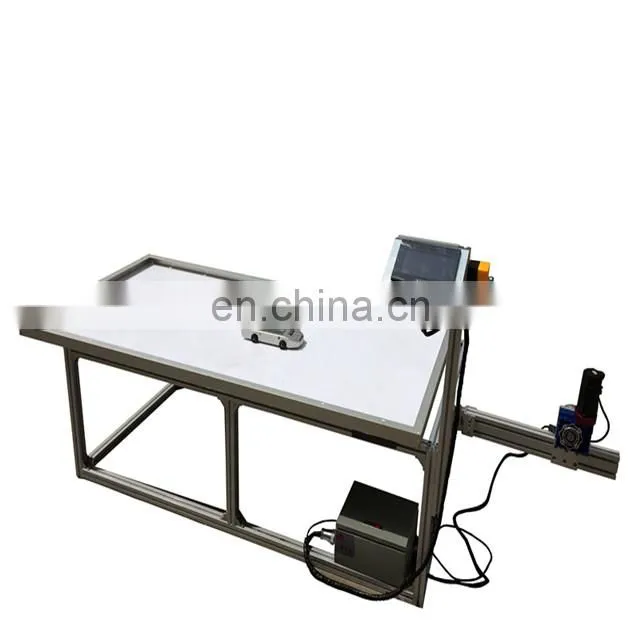

solar panel Backplane scratch resistance testing machine /solar panel Backboard withstand scratch testing equipment
- 100 Set / Sets per Month
- Shenzhen
- T/T Credit Card
- IEC61215-2 Cord Anchorage torsion testing machine / testing equipment
- IEC61215 UL1073 Damp-heating testing machine (environment chamber) / testing equipment
- solar PV module Thermal cycling testing machine / solar PV module Thermal cycling testing/ High low temperature testing machine
- IEC61701-2011 solar panel PV module Slat+flow mixed gas corrosion test chamber / testing equipment for solar panel / tester
- solar panel PV module Simulate environment damp heat testing chamber / Damp hot evnironment testing chamber
- UL1703-20 GB/T15763.2-2005 Fall Ball impact testing machine testing equipment
Product Details
Brand Name: | HOTOTECH | Place of Origin: | China | Model Number: | HTPV-02 |
Power: | Electronic |
Product Description
Standard:According to IEC61730-2 , UL1703 standard requirement
Purpose:
to determine whether any front and rear surfaces of the module of polymeric materials are capable of withstanding routine handling during installation and maintenance without exposing personnel to the danger of electric shock
Technical specifications:
1,Aluminum alloy material operate table,size approx 1.4m×0.65m.
2,Operate table include tracking pulley wheel, tracking head slide and moving convenience
3,test fixture:
3.1,Adopt carbon steel blade
3.2,Promise 0.64mm±0.05mm thick requirement,and satisfy 0.115±0.025mm blade radius requirement
3.3,Distance and angle can adjust
3.4,included the weights box on the saw bar
3.5,According to IEC61730-2 standard requirement to adjustable weights, promise the test point
suffer gravity 8.9N±0.5N
4,Adopt motor constant speed tracking , speed continue and adjust, tracking directing can adjust
5,Promise the test fixture to(150±30)mm/s speed pull the module
