Model:HTPV-17

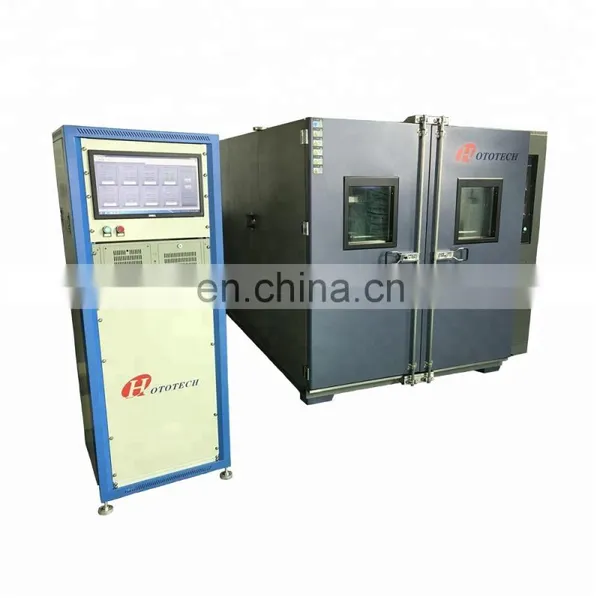

Name:Thermal cycling/Humidity -freeze testing machine (environment chamber)
Solar panel Environment climate chamber
Standard:According to IEC61215,UL1703 standard requirement
Purpose: To determine the ability of the module to withstand thermal mismatch, fatigue and other stresses caused by repeated changes of temperature
Technical specifications:
Temperature range |
-40~85℃ |
Temperature fluctuation |
≤±1℃ |
Temperature deviation |
≤±1℃ |
Temperature uniformity |
≤±2℃ |
Rise and down speed rate |
IEC 61215 |
Humidity range |
30~98%RH, |
Relative humidity deviation |
±3%FS;deviation 85±2%RH;90±2%RH |
Humidity fluctuation |
±2%RH |
Humidity uniformity |
≤2%RH |
Placed test module |
12 PCS |
Inner chamber size |
approx 1.5×2.5×1.5m (L*W*H) |
Outer chamber size |
approx 2.5×3.0×2.5m (L*W*H) |
Inner chamber material |
Stainless steel |
Outer chamber material |
Stainless steel |
Control system |
automatic calculus |
Display panel |
Touch scree |
Language |
Chinese and English |
Power down reset |
√ |
power down memory function |
√ |
Inner material |
SUS#304High temperature resistant high tension stainless steel sheet |
Outer material |
Antirust steel plate + baking finish |
Thermal insulation material |
High density hard PU foam and glass insulation cotton |
Refrigerant |
HFC environmental protection refrigerant |
Refrigerant valve |
automatic switch regulating refrigerant valve |
Power |
380V 260HZ |
Thermal cycling test curve figure as below
Humidity -freeze testing test curve figure as below
1.High quality and best after-sell service
2.100% quality inspection before delivery
3.Managment Innovate
4.Strong R & D team
5.Can handle customers's feedback problems and doubt timely
6.Our testing machine have one year Warranty time
FQA :
-Can the equipment be customized?
Provide technical specifications and standards, customized
-About warranty?
Our quality is trustworthy, but we promise a one-year warranty.
-Worried not to use?
We will have professional technicians to guide us remotely. If you like, you can also teach on site.
