Module Breakage Testing Machine/Tempering Glass Testing Machine /Solar Panel Testing Machine for IEC61730 Testing Standard
US$ 6,000 - 7,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HOTOTECH
Place of Origin:
Guangdong, China
Model Number:
HTPV-03
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen YanTian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Nominal Working Temperature Test System/testing Machine for PV ModuleUS$ 120,000 - 160,000MOQ: 1 Set -
Salt Spray Corrosion Testing Machine/Salt Spray Testing Chamber/Solar Panel Environment Chamber With IEC 61701 TestingUS$ 900 - 1,500MOQ: 1 Set
-
IEC 61215-2:2016 Solar Panel Terminal Strength Cord Anchorage Torsion Test Equipment/testing MachineUS$ 3,235.29 - 3,676.47MOQ: 1 Set
-
IEC 61215 Standard Terminal Strength Cord Anchorage Pull Testing Machine/Testing Equipment for Solar PanelUS$ 600 - 900MOQ: 1 Set
-
PV Module Backplane Scratch Resistance Testing Machine/PV Module Testing Equipment/PV Module TestingUS$ 800 - 1,000MOQ: 1 Set
Brand Name
HOTOTECH
Place of Origin
Guangdong, China
Model Number
HTPV-03
Power
Electronic
Company logo
Product Description

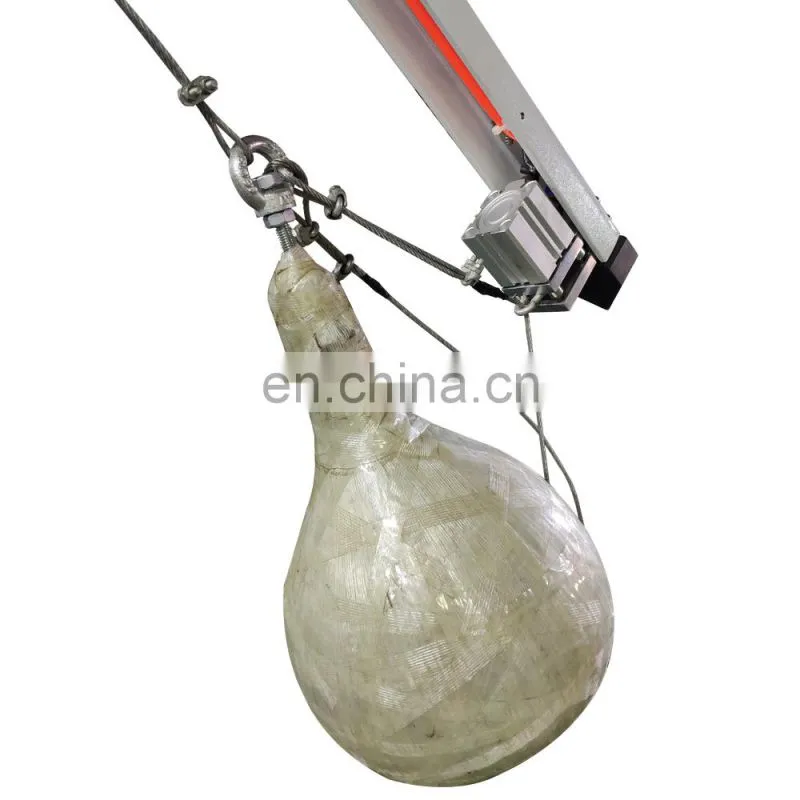

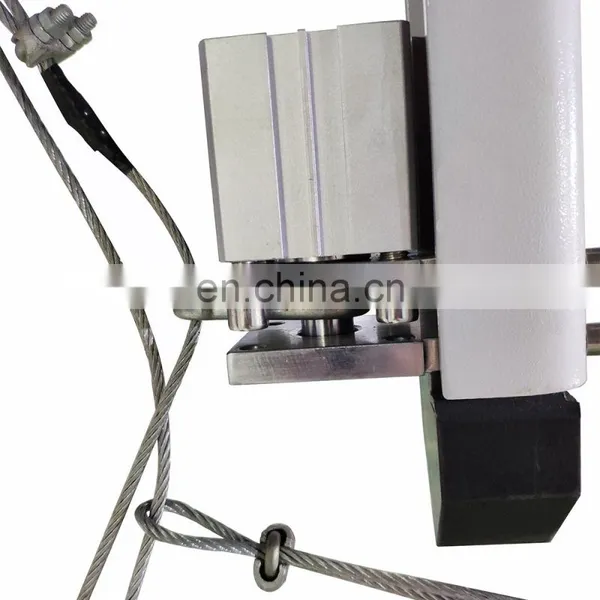

Module Breakage Testing Machine/Tempering glass testing machine /Solar panel testing machine for IEC61730 testing standard
Standard
According to IEC61730-2004, JJG 128-1999
Purpose
This test is provide confidence that cutting or piercing injuries can be minimized if the module is broken
The Main Technical
| Product Name | Module breakage testing machine/tempering glass testing machine/solar panel testing machine for IEC61730 testing standard |
| Testing standard | IEC61730-2:2016 |
| Testing sample | PV Module , Tempering glass |
| Impact height | 300mm~1220mm |
| Impact sample size | 2000mm×1000mm (customized) |
| The inner dimension of test sample | According to customer's pv module size requirement |
| Sample frame material | Chnnel wideth≥100mm, thickness 3mm |
| The mass of impactor | 45.5±0.5kg |
| Inner filling diameter pellets | 2.5-3.0mm |
| Protection device | Protection frame |
| Electricity | 220V 50HZ |
