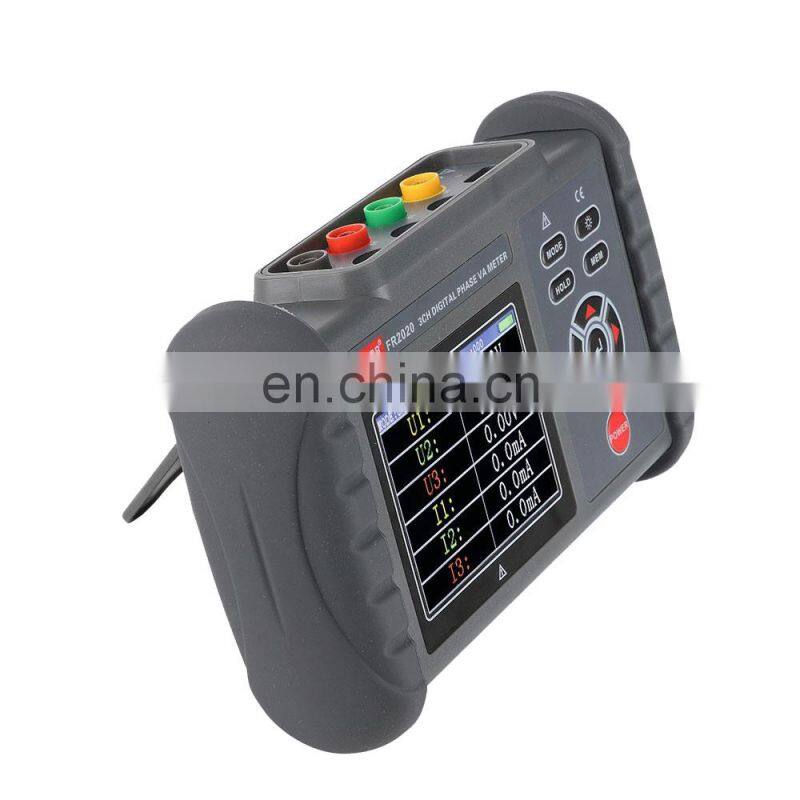

High-precision AC 600V three-phase digital phase volt-ampere meter with USB

Power

3.7V lithium rechargeable battery

Power consumption

Max 50mA

Display mode

LCD color display,72×55mm

Instrument size

W/H/T:187*119*48mm

Voltage range

AC 0.00V~600V

Resolution:0.01V

Accuracy:±0.5% FS

Current range

AC 0.0mA~20.0A

Resolution:0.1mA

Accuracy:±0.5% FS

Phase range

0.0°~360.0°

Resolution:0.1°

Accuracy:±1°

Frequency range

45.00Hz~65.00Hz

Resolution:0.01Hz

Accuracy:±0.5Hz

Active power range

0.0W~12kW

Resolution:0.1W

Accuracy:±(3%rdg+3dgt)

Reactive power range

0.0W~12kVAR

Resolution:0.1VAR

Accuracy:±(3%rdg+3dgt)

Apparent power range

0.0W~12kVA

Resolution:0.1VA

Accuracy:±(3%rdg+3dgt)

Power factor range

-1~+1

Resolution:0.001

Accuracy:±0.03

Current vector sum

0mA~60.0A

Phase sequence

Normal phase:U1,U2,U3 or I1,I2,I3 cursor blinks from left to right

Opposition:U1,U2,U3 or I1,I2,I3 cursor blinks from right to left

Detection rate

About 2 second/time

Data hold

Press HOLD key to hold data during test, "HOLD" symbol display

Data storage

500 groups

Silicone protective cover

Have

USB interface

USB interface, uploading data to a computer for analysis of management data

Automatic shut-down

About 15 minutes after power on, the meter will automatically shut down to reduce battery consumption

Backlight function

Yes, suitable for dark places and night use

Voltage detection

When the battery voltage is lower than 3.2V, the battery voltage is low and the symbol indicates, prompting timely charging

Instrument weight

Host:380g(including battery)

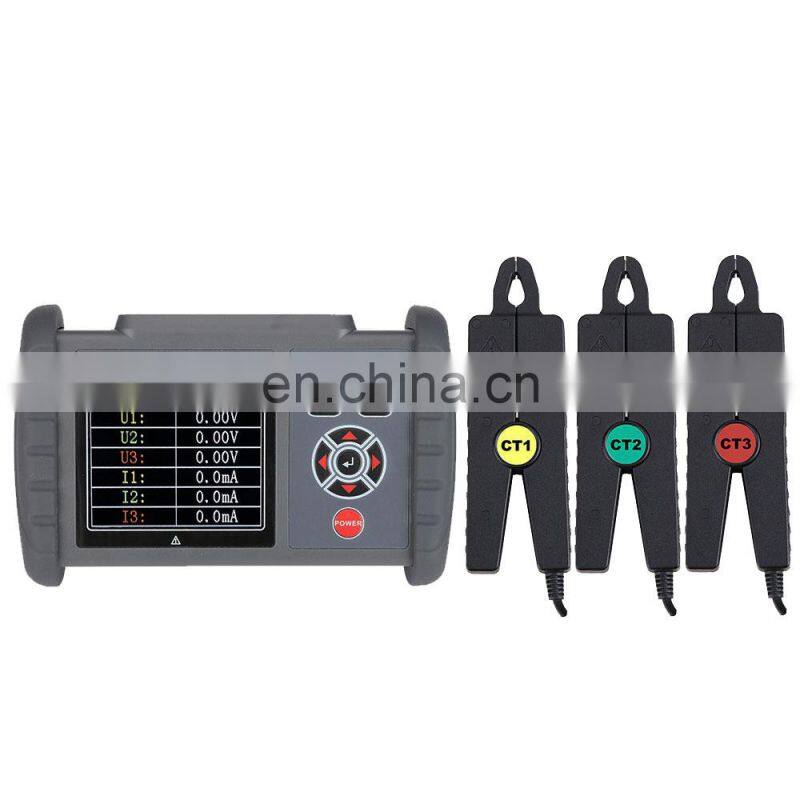

Tip-shaped current clamp:180g×3

Test line:190g

Voltage test line length

1.5m

Current clamp line length

2m

Working temperature and humidity

-10℃~40℃;below 80%Rh

Storage temperature and humidity

-10℃~60℃;below 70%Rh

 Input impedence

Test voltage input impedance is:1MΩ

Pressure resistance

The withstand voltage of 1000V/50Hz sine wave AC voltage between the instrument circuit and the housing lasts 1 minute

Insulation

Between instrument line and housing≥100MΩ

Structure

Housing insulation

Suitable for safety regulations

IEC61010-1 CAT Ⅲ 600V,IEC61010-031,IEC61326,pollution level 2
