Discount! waterproof test equipment IEC60529 IPX5/X6 water jet nozzle with pressure gauge
- 100 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
You May Like
-
Promotion discount! IEC60529 IPX5 water jet equipment with 6.3mm nozzle head
-
IPX3 IPX4 Spray Nozzle test device for waterproof test
-
IPX3 and IPX4 spray nozzle Ingress protection test equipment
-
shenzhen water splashing and spraying IPX3 IPX4 tester for IEC60529
-
Discount Sell! IEC60529 IPX3 IPX4 brass water spray nozzle for hand sprayer
-
IEC60529 IPX3/4 Spray Nozzle test device for water resistance test
Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-BZ | Power | Other | |
Aluminum box+Carton box
Product Description
Discount! IP test equipment IEC60529 IPX5/X6 water jet nozzle with pressure gauge
Application:
IPX5 and IPX6 call for a specimen to be sprayed with water from all practicable directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min. IPX6 specifies a nozzle with a 12.5mm diameter opening and a flow rate of 100L/min.
Instrument

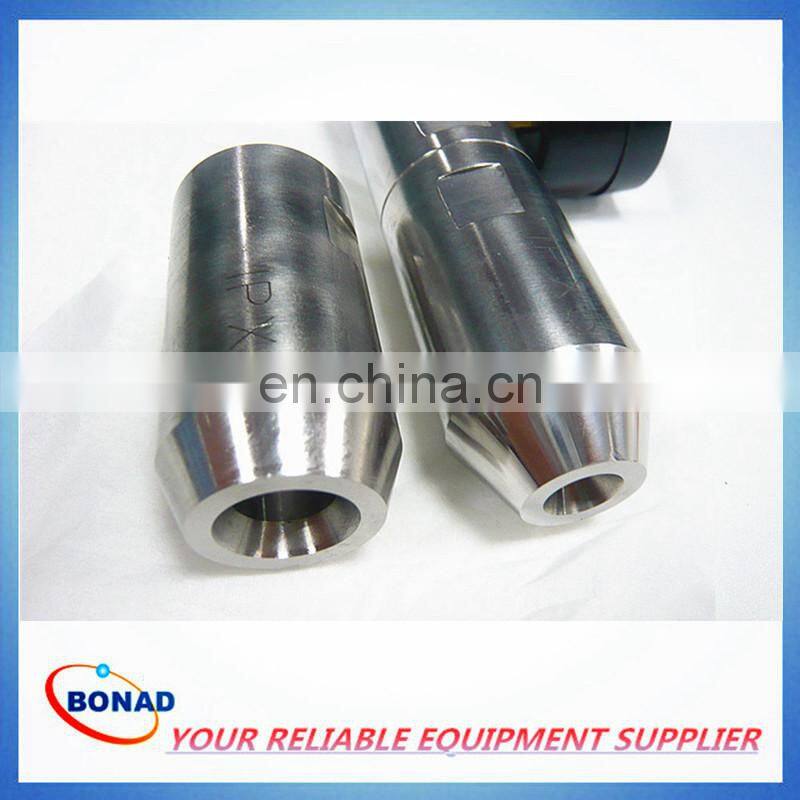

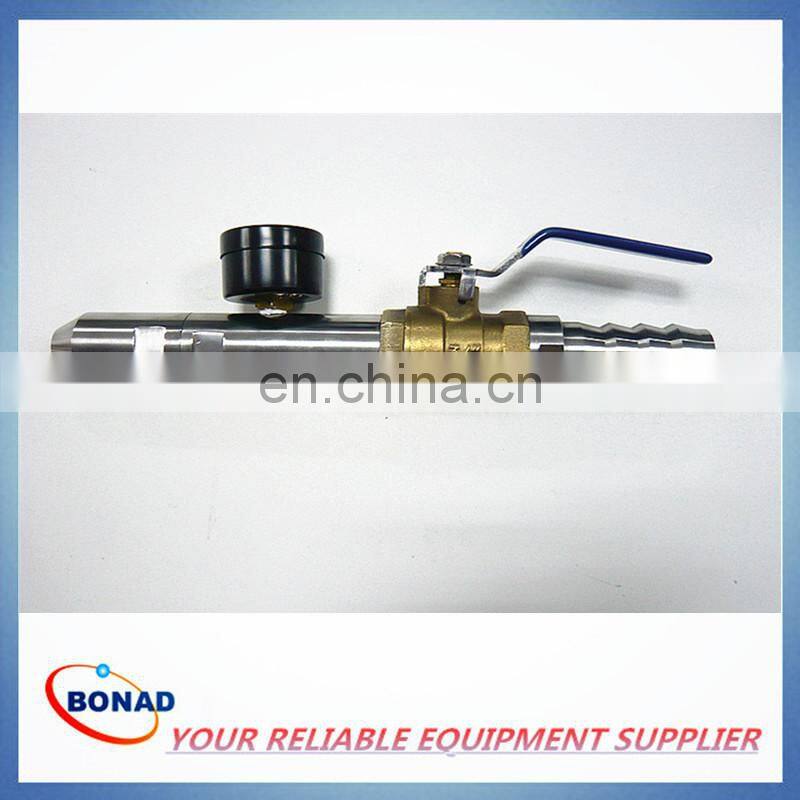

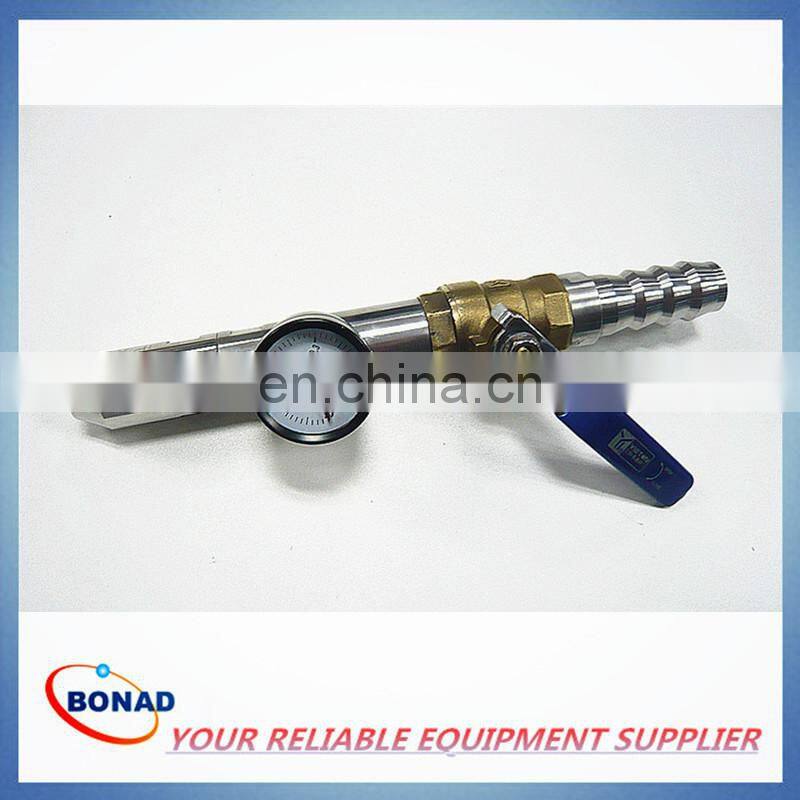

The IPX5-6 Jet Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.
Features
- Stainless steel nozzles
- Valve for water flow regulation and shut off
- Pressure gauge
- Hose connector
- Interchangeable nozzles
Conforms To
IEC60529, 60598-1, 60335-1, EN60335-1, 60950,60529, GB4208,2423., 7000.1 GB/T4942.2, 4706.1
item |
|
Model | BND-IPX5/X6 |
IPX5 aperture | 6.3mm |
IPX6 aperture | 12.5mm |
IPX5 water flow rate | 12.5±0.625L/min |
IPX6 water flow rate | 100±5L/min |
Note:
1.Adjust the water flow according to regulation.
2.Test the product in 2.5m-3m in front of the spray.
How to order
1. Place the order and pay directly if you have no question to the product. 2. If you have some questions, don't bother to send me a message to ask. 3. After you have paid the money, we will deliver the goods as soon as possible. |
Packaging and Shipping
1. Aluminium box and carton box, careful and tight package, make sure the package is intact. 2. The package will be shipped by DHL/Fedex/TNT/EMS/UPS/China post/EF-Express/Special line, as you have chose in the order. 3. The shipping time is different, it depends on the distance bewteen us. At usual, exclude the preparing time, the goods would be sent to you in 5days. |
Company Profile
14 Stanards drafted and issued by Labthink -- 100 Patents granted by Labthink -- 410 m2 Laboratory to provide testing services -- 20 years experienced lab technicians to provide solutions -- 12 months warranty -- Remote Services (Free of Charge allthrough lifetime)
