Article NO.BND-ZJ

in accordance with VDE 0700 part 1 picture 7 resp. IEC/EN 60335-1
Additional standards: IEC/EN 60745-1

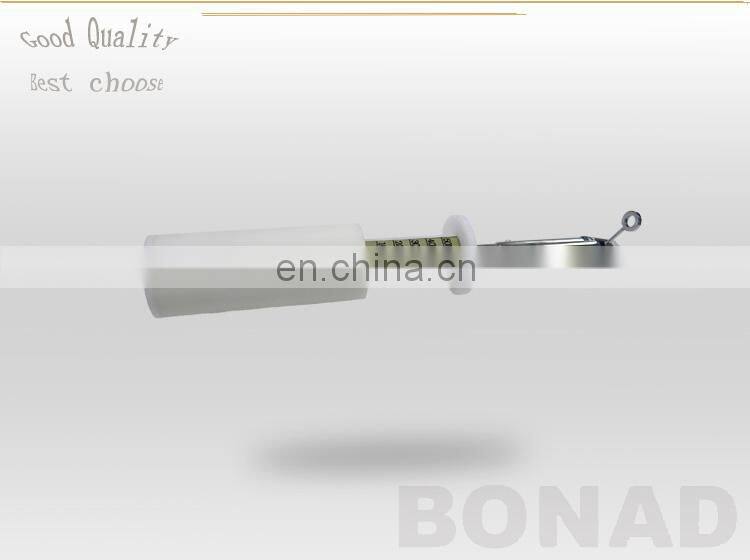

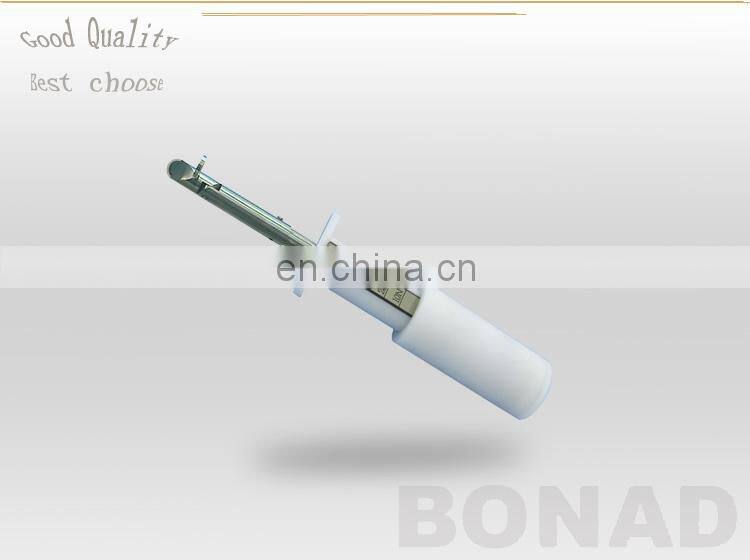

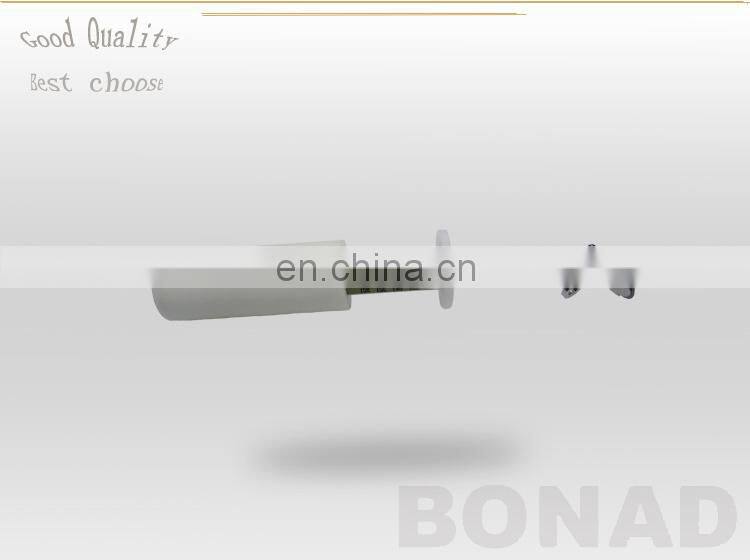

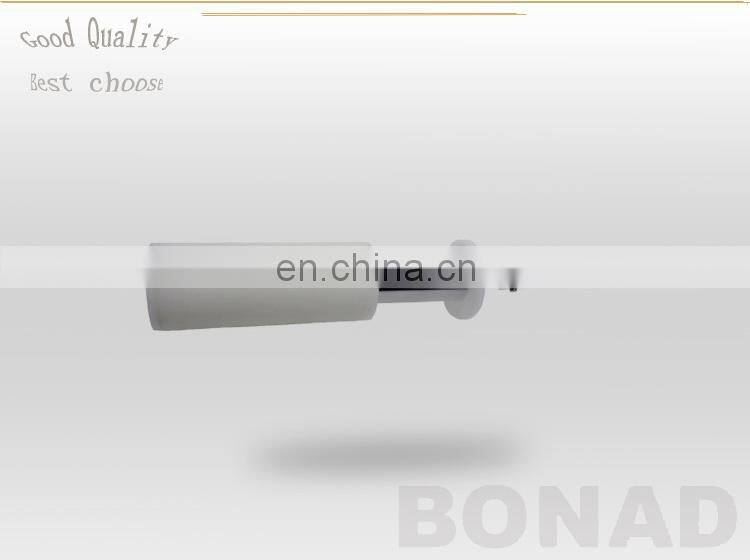

The fingernail is made of high-grade steel. It can be attached to all infl exible finger probes and is used for the verification of the sufficient mechanical resistance of parts which are likely to be touched.On the finger tip, which can be bent to an angle of 90 degree, a grommet for the tensile test is attached.

Technical parameters

1,Test Finger Nail components:fingertip,the middle finger ,finger base.

2, exert pressure: 10N, 20N, 30N,40N,50N

3, Reference standard: IEC60335-1 in figure 7

Application:

1,,The Test Finger Nail is mainly used for the shocking  or  the non-removable parts of contacting with moving parts to determine whether it  can withstand the  mechanical pressure in normal use ,to reach the required level of protection test.

2, The surface pressure 10N on the scratch test, material scraped surface can not be separated.Using the test finger insert any seam or joints,and then impose vertically a 10N side draw in ,but can not be twisted and leveraged.The related components can not be fell off or be damaged.
