Spring Impact Tester for Iec60068-2-75 Hammer

2.0J impact tester iec60068-2-75

Instrument

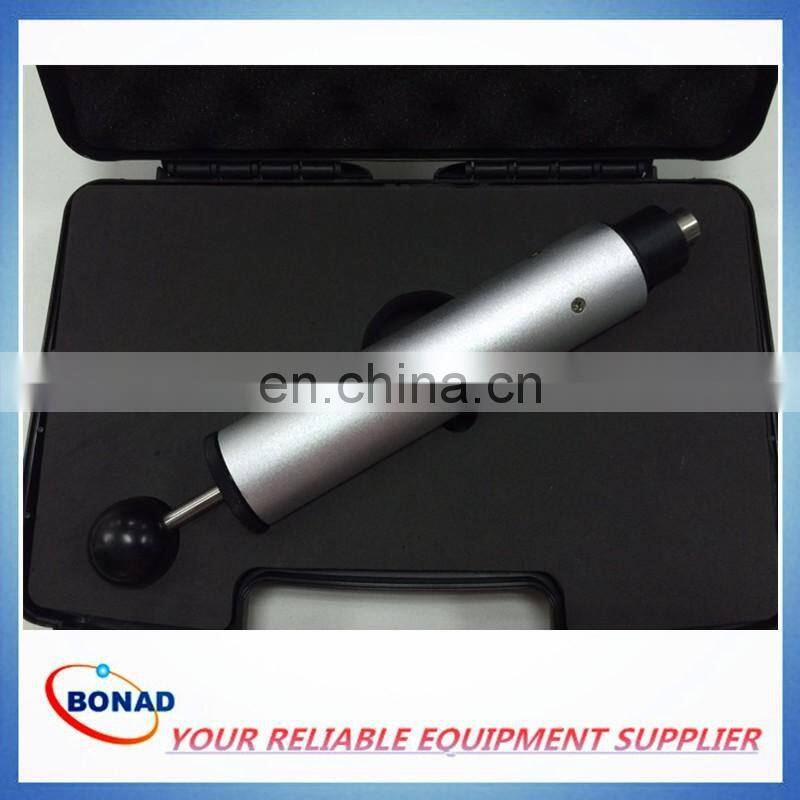

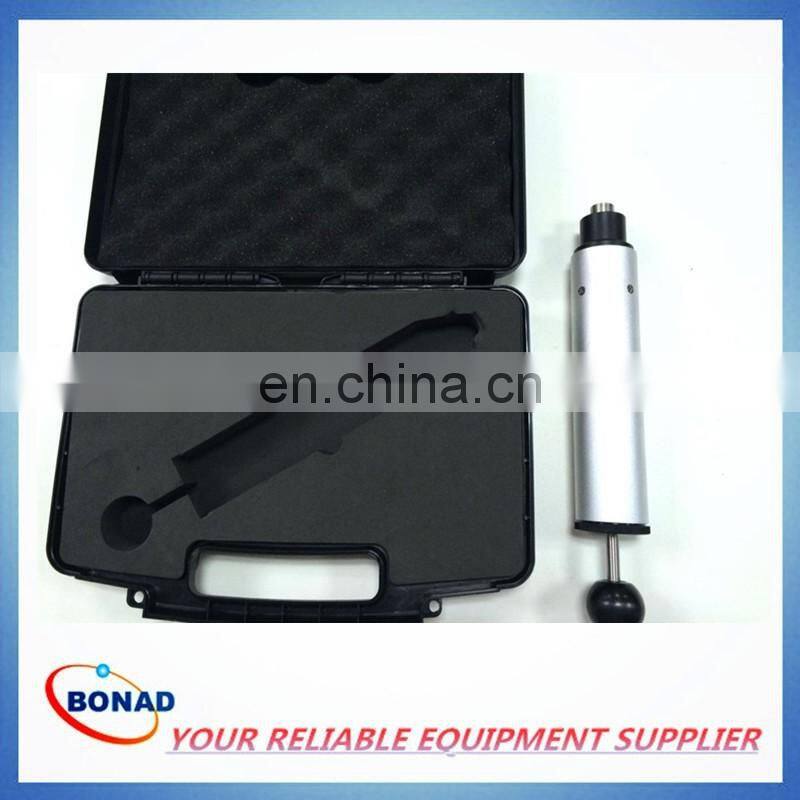

The instrument is designed to conform to IEC60068-2-75 and other commonly used standards in the market. All components are made to the specifications required by the standards. Hammers are available in single force selections or a Universal Spring Hammer that offers five selectable impact energies. Each hammer is delivered in a protective case with a calibration certificate.

Application

Impact Hammers are used to check the durability of enclosures for electrical appliances or other electronic products. If damage occurs from the Impact Hammer test, Accessibility Probes can be used to measure the extent or severity of the damage. The Impact Hammer simulates the mechanical impact to which electrical equipment may be subjected.

Features

Body (includes release mechanism and striking element guide) mass = 1250g

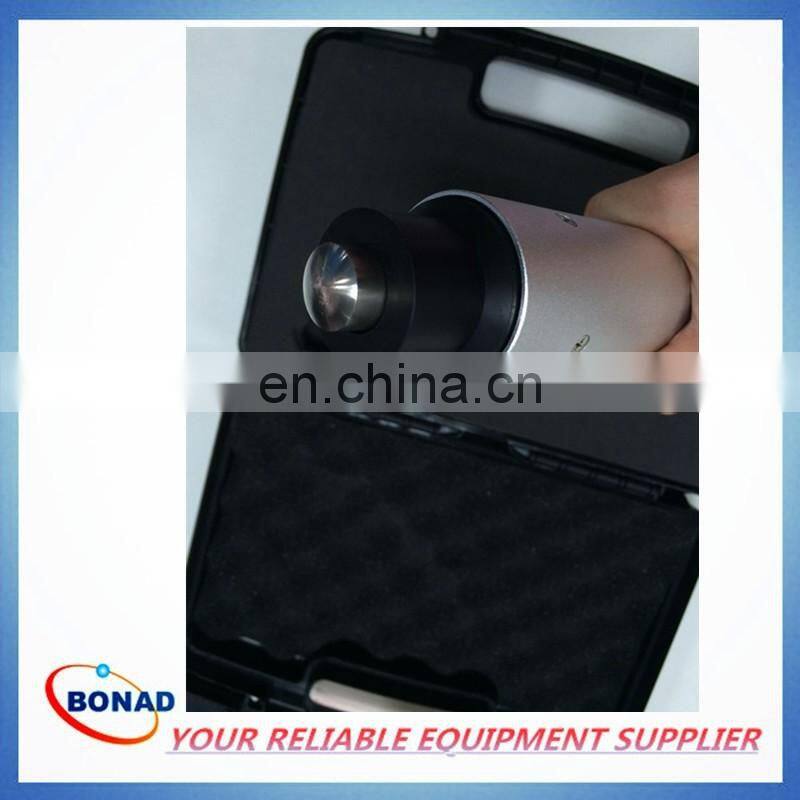

Striking element with cocking knob and hammer head, polyamide face with a radius of 10mm mass = 250g

Hardness of Hammer Head = R100 (Rockwell Hardness)

Release Cone: 60g, release pressure <10N

Conforms To

IEC60068-2-75, IEC60065, IEC60335-1, IEC60598-1, IEC60745-1, GB4706.1, GB8898,GB7000.1

Calibration

Calibration from the third party institute, provide CNAS and ILAC certificate

Type

Method of Application

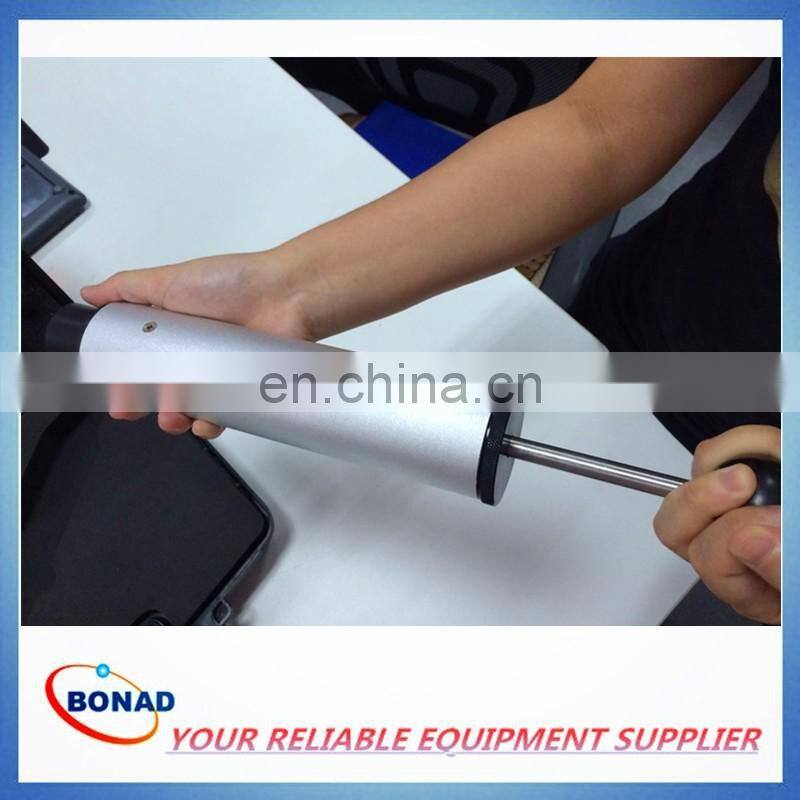

Single spring hammer : To steady and hold the hammer, choose an impact point on tested surface, then pull the operating handle of the hammer. At this moment, the impact hammer is activated. Let the impact hammer vertical towards the sample's surface, then make the head of the hammer impact the surface.
