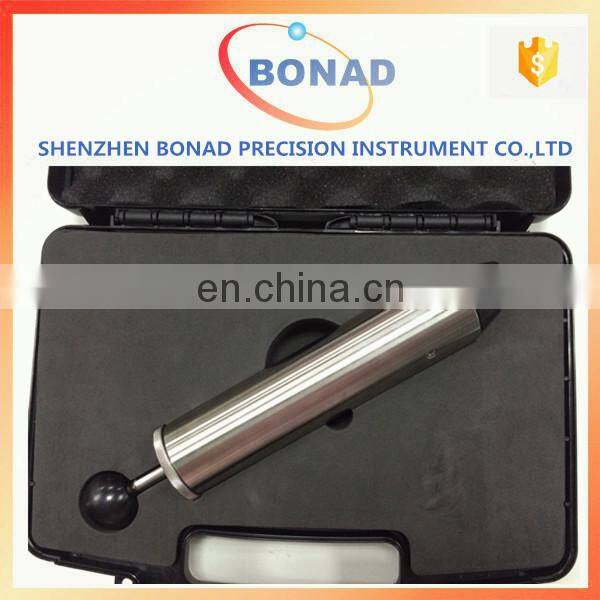

spring operated impact hammer (iec 60068-2-75) 0.14J-1.0J single energy type

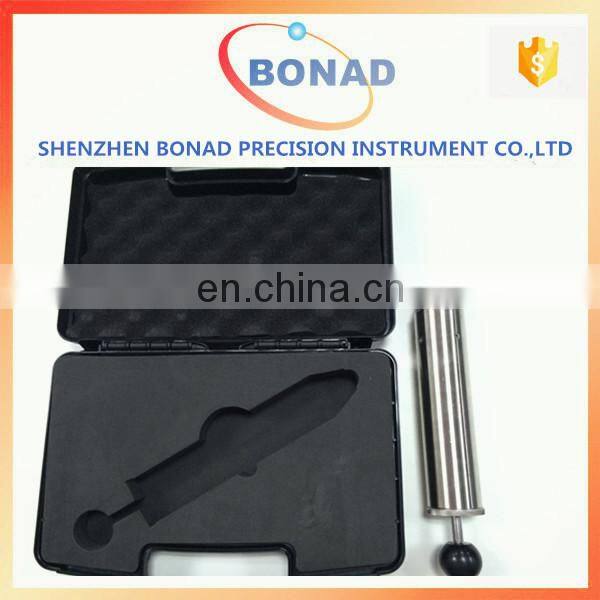

Aluminum box+Carton box

spring operated impact hammer (iec 60068-2-75) 0.14J-1.0J single energy type

Standard:  IEC60068-2-75    IEC60884    UL1244

Technical parameters:

Length:211mm

Weight:1250g

OD : 50mm

Hammer Weight :60g

Hammer Radius:10mm

The release force of impact: <10N

Impact Components: Including the hit ball handle the hammer ,weight 250g

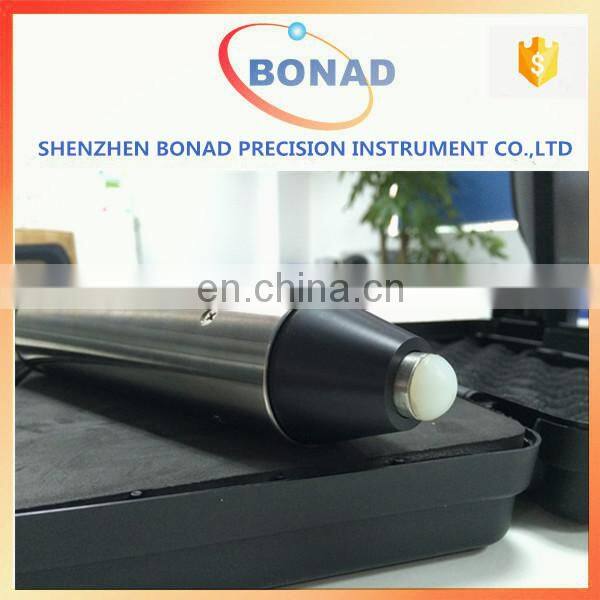

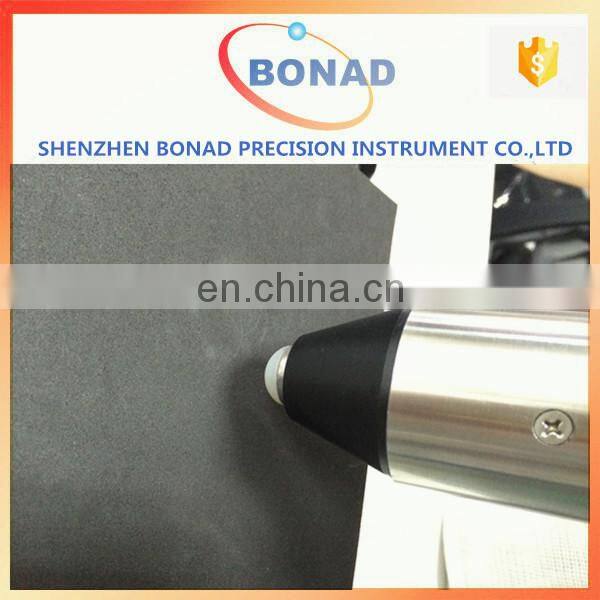

Hammer head is made from white polyethylene imine first

Types: Spring Operated Impact Hammer 0.14J/0.2/0.35/0.5/0.7/1.0J

Introduction:

Spring impact hammer is designed according to the IEC60068-2-75 for testing the resistance of impact of electrical and electronic products. Spring impact hammer is the necessary test probe to check the safety performance of  enclosure of electrical products under the condition of external mechanical forces.

It is used for the mechanical robustness testing of domestic and similar electrical appliances, electronic products, such as lights, enclosure of electrical accessories, lever, handle, knobs, indicator lights, signal lights, lampshades and so on.

Spring impact hammer can make sure that the tested products can withstand the possibility of reckless operations and other accidents. The electrical appliances can run safe and reliable and won’t cause harm to people.

Method of Application

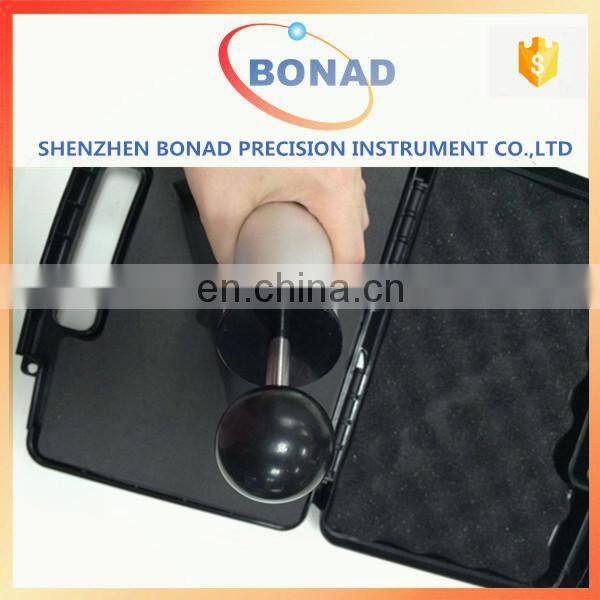

Single spring hammer : To steady and hold the hammer, choose an impact point on tested surface, then pull the operating handle of the hammer. At this moment, the impact hammer is activated. Let the impact hammer vertical towards the sample's surface, then make the head of the hammer impact the surface.
