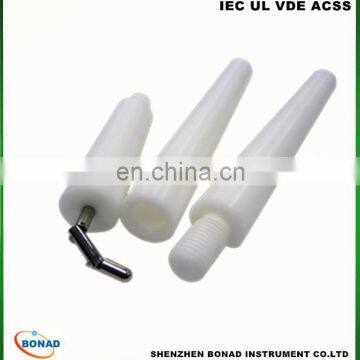

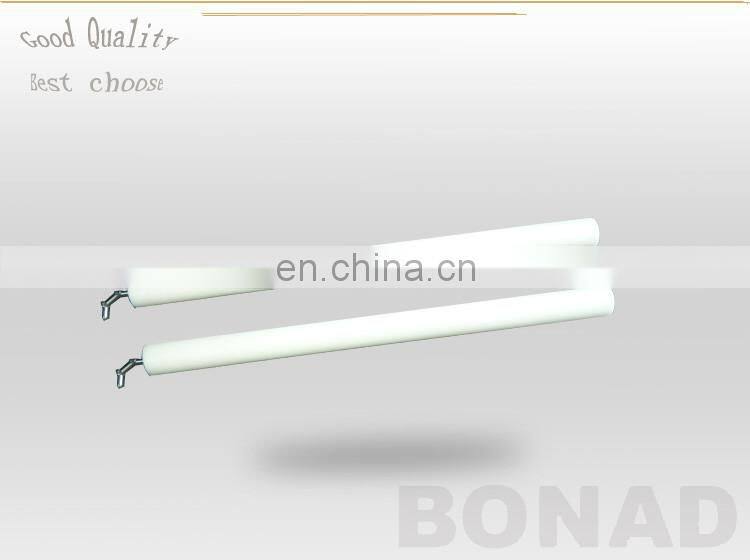

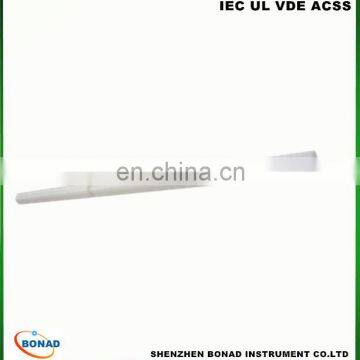

children jointed finger probe iec/en 61032 with arm extension

children joint finger probe iec/en 61032 with arm extension

These size test fingers are to test for protection against access to hazardous parts
with a human finger and / or arm. These are high precision probes made in exact
accordance with IEC 61032, Figures 12 and 13,EN71,ASTM F963. The child's finger
is also called out in U.S. Federal Regulations, Title 16, Volume 2, Chapter 11, Part
1500 for consumer products.

Product information:

Children test finger probe HT-I12 conforms to IEC61032 figure 12 finger probe 18, IEC335.1,UL1017 standards. It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.

Children finger probe HT-I13 conforms to IEC61032 figure 13 finger probe 19, IEC335.1,UL1017 standards. It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector.

Note

Test probe is precision stainless steel products, please use of gently and pay attention to maintenance

IEC61032 Figures 12 and 13 EN71

ASTM F963

NO.18: Knurled finger

diameter:8.6mm

Knurled finger length:

57.9mm(Three knurls,19.3mm/

knurl)

Head Radius:2.8mm

No.19:Knurled finger diameter:

5.6mm

Knurled finger Length:44mm

(Threeknurls,14.6mm/knurl) Head Radius:2.8mm
