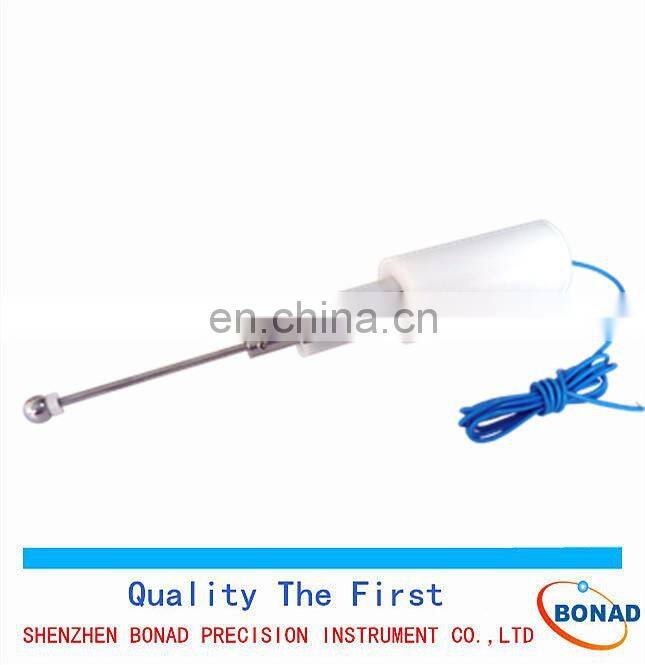

IEC60529 12.5mm Sphere Test Probe With 50N Force for Safety Test

IEC60529 12.5mm sphere test probe with 50N force for safety test

BND-2A

The Test Porbe meets the standard requirements of IEC60529. The Test Probe is a wide range of probes to meet the most common standards including those from IEC, EN, UL, GB, and others. Such standards require the checking of accessibility to dangerous parts of home electronics and appliances, toys, tools, and a host of other products that are intended to be protected by enclosures. These probes simulate human fingers, tools, and other items that would be hazardous to come in contact with certain parts of products.


Basic Introduction:

1, According to the IEC60529

2, 12.5MM test probe is necessary appliance for household and similar electrical appliance of against electric shock protection test.

Technical parameters:

1, Ball Diameter :12.5 mm

2, Baffle Plate Diameter:4 mm

3, Baffle Plate Thickness:10 mm

4, Handle Diameter: 4mm

Application:

1, The ball cannot touch the live parts or approach to hazardous parts

2, In the test requirements of preventing from accessing to the hazardous parts,the test steel ball without thrust needs to be used with pushing tension meter,and steel body needs to exert a 50N force on the protection layer.
