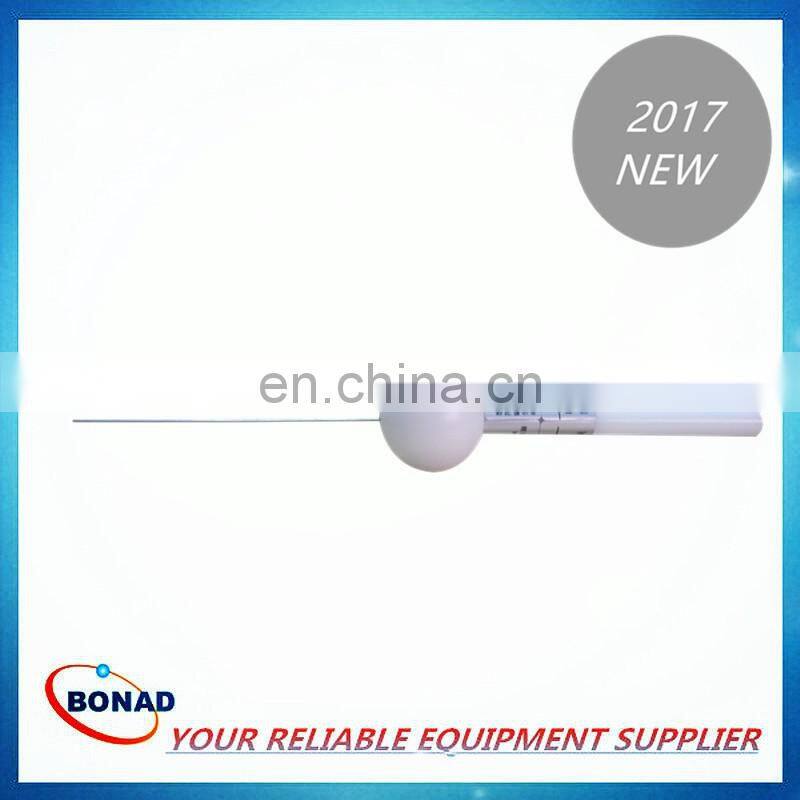

IEC 61032 Figure 4 IP4X Test Probe D for Safety Test

IEC 61032 IP4X Test Probe D for safety test

Article NO.,BND-D

Basic Introduction:

1,According to: IEC61032:1997/IEC60529:2001 AND UL

2,P4X Test Probe D ( Test Probe D) is a necessary appliance for domestic and similar electrical appliance of against electric shock protection test.

Technical parameters

1, Test Probe Length :100mm

2, Test Probe Diameter:1.0mm

3,Dam- sphere Diameter:35mm

4,Handle Diameter:10mm

5,Handle Length 100mm

6, According to IEC61032 figure 4 (the Test probe D)

Application:

1, Standard test refers to the joint part can't touch the live parts or approachi to the hazardous parts, 30mm circular baffle cannot enter .

2,In the test requirement for preventing from approaching to the hazardous parts,  Test Probe D need to exert a thrust 1±0.1N

Shipping

1. FedEx/DHL/UPS/TNT/EMS;

2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving

3. Customers specifying freight forwarders or negotiable shipping methods;

4. Delivery Time: about 7-15 working days after receiving payment.

Payment Terms

1. Payment: T/T, Western Union, PayPal in advance ; 30% deposits,70% balance before delivery

2. MOQ: 1pcs

3. Warranty : 12 months
