iec60335-1 handled short test pin probe
- 100 Piece / Pieces per Month
- shenzhen
- T/T Credit Card
-
JOINTED TEST FINGER with insulated disc 125 mm IEC/CEI EN 60335-2-14
-
IEC61032 Figure 8 Long Test Pin Probe 12
-
protection accessibility articulated test finger b
-
iec standard test probe finger ip2x tool for household appliance protection testing
-
12.5mm stainless steel impact test sphere ball with guard
-
electronic equipment creepage distance test card ck GB2099
Product Details
| Brand Name: | bnd-13 | Place of Origin: | Guangdong, China | Model Number: | short test pin probe |
Packaging Details
Safety Aluminum foil box for iec60335-1 handled short test pin probe
Product Description
iec60335-1 handled short test pin probe
short Test Pin Probe is used to test for accessibility of small objects and meets IEC and UL requirements. The probe is made of stainless steel with a Delrin® handle. Meets IEC 60950 and 61032, as well as other national and international standards. There is an additional fee for the data, and it must be ordered in advance.

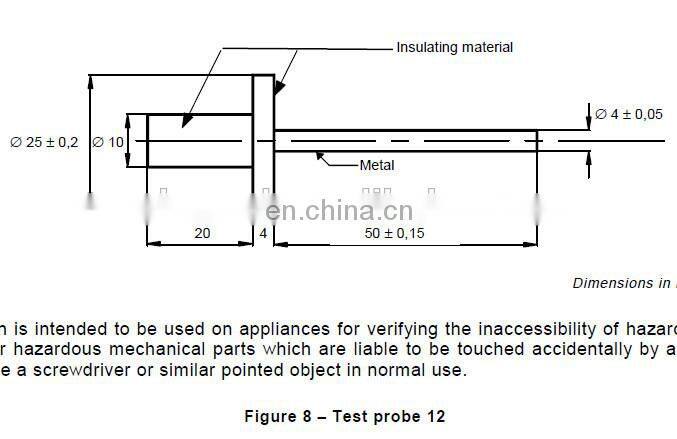

The Long Test Pin (Figure 8 - Test probe 12) of IEC 61032.
This long test pin probe is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
The Short Test Pin (Figure 9 - Test probe 13) of IEC 61032
the short test pin probe is intended to verify the protection against access to hazardous live parts in class 0 equipment and class II equipment (IEC 60536).
Both are made on stainless steel and are Polished.
Note
Long Test pin probe is precision stainless steel products, please use of gently and pay attention to maintenance
IEC60065 IEC60335-1 IEC61032
The probe Diameter:Head 3mm Tail 4mm
The probe Length:15mm
Dam-board Diameter:25mm
Dam-board Thickness:4mm
Product picture | Reference Standard | Specification |
Long test pin probe | IEC61032 | The probe Diameter:4mm The probe Length:50mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
Short test pin probe | IEC60065 IEC60335-1 IEC61032 | The probe Diameter:Head 3mm Tail 4mm The probe Length:15mm Dam-board Diameter:25mm Dam-board Thickness:4mm |
