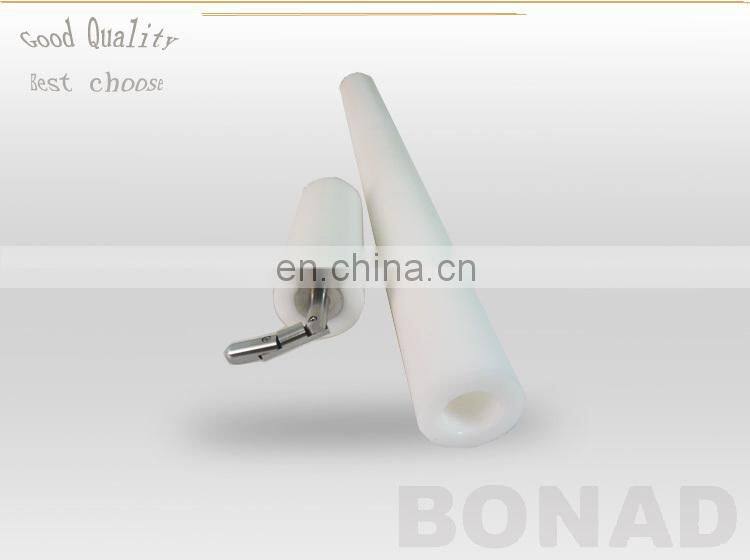

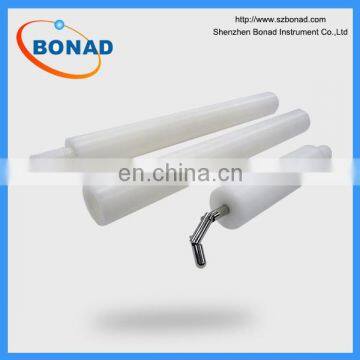

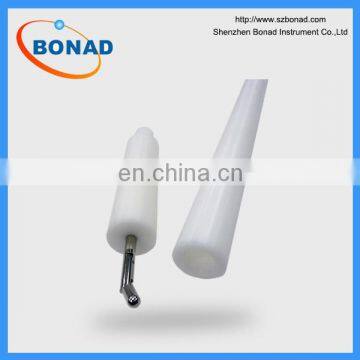

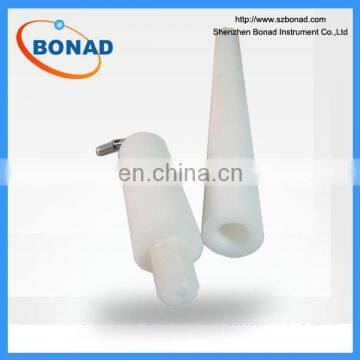

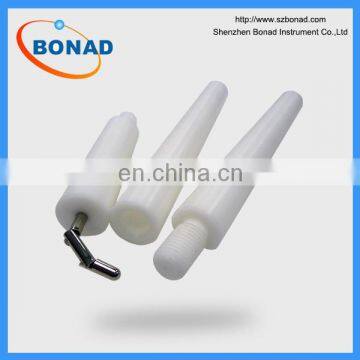

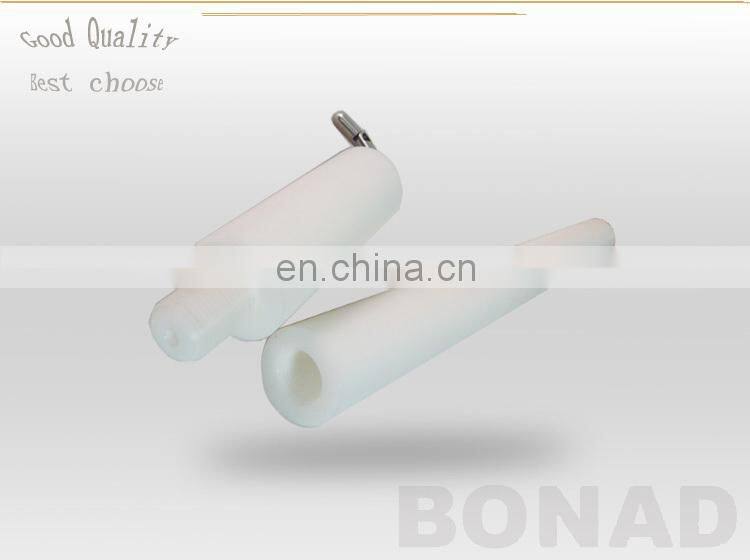

IEC61032 EN71 Children Test Finger Probe for Safety Testing

IEC61032 EN71 children test finger probe for safety testing

Article NO.:BND-19

Specification:

Children Test Finger / Children Test Finger19

1, According to : IEC61032-1997 Fig12 and Fig.13 / EN71 ASTM F963 and UL

2, Children Test Finger 19 Probe is the necessary appliance to prevent electric shock for household and similar electrical problem

Technical Parameters:

1, Knurled Finger Diameter: 5.6mm

2, Knurled Finger Length :44mm

3, Head Radius:2.8mm

4, The First Handle Diameter: 101.6mm

5, The First Handle Length:101.6mm

6, The Second Handle Diameter:25.4mm

7, The Second Handle Length:464.3mm

8, Reference Standards: IEC61032:1997 Figure 13,

– Finger: metal material

– Handle: insulating material

--lightly put and take when using, and pay attention to maintenance

Application:

1, The metal parts of the Test Probe can not touch the live parts or not close to hazardous parts, plastic dam-board can not be enter .The reference standards are different ,please according to related standards on the detailed test . This shows that only based on IEC 61032

The extension of the handle represents the arm of the child.

The handle is provided with an extension, 464,3 mm long and the probe should be applied with or without this extension, whichever is the more onerous condition. Both joints shall permit movement in the same plane and the same direction through an angle of 90°. This probe is intended to simulate access to hazardous parts by children of 36 months or less.
