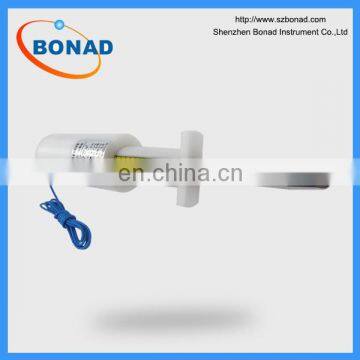

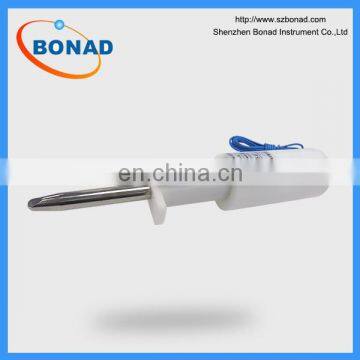

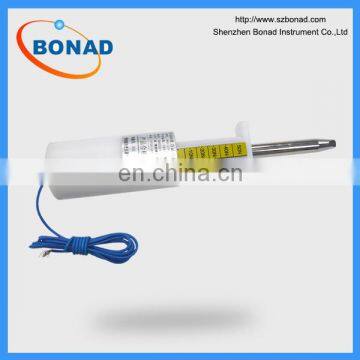

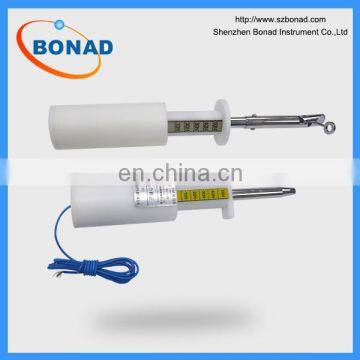

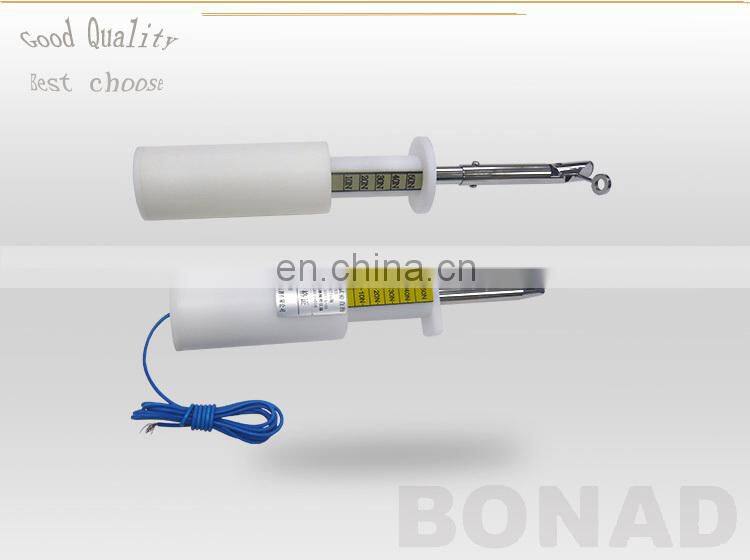

IEC60035 Standard Rigid Test Probe With 50N Force

IEC60035 standard Rigid test Probe with 50N force

Article NO.,BND-1150

Basic Introduction:

1, According to : IEC60035 /IEC60065/ IEC61032

2,It is used to the protective performance check of the apparatus structures and shells which is easy to access live parts

Technical parameters

1, Nodular Finger Diameter :12mm

2, Nodular Finger Length:80mm

3,Dam- board Diameter:50mm

Dynamometer:

BND-1150 type:10N-50N

BND-1175 type: 10N-75N

Application:

1, The finger of the Thrust Test Finger Probe can not touch the live parts or not close to hazardous parts, 50m,-20mmdam-board can not be enter .

2,In the test requirement for preventing access to the hazardous parts, Thrust Test Finger should be applied thrust
