Model BND-PA100 Articulated Metal Finger Probe
- Shenzhen
- T/T Credit Card
You May Like
Product Details
| Brand Name | BONAD | Place of Origin | Guangdong, China | |
| Model Number | BND-PA100 |
To be packed in aluminum foil box
Product Description
Product Description

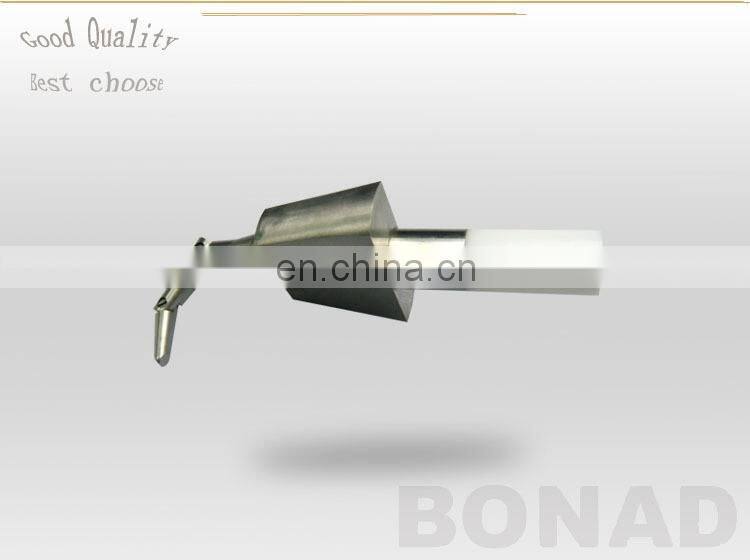

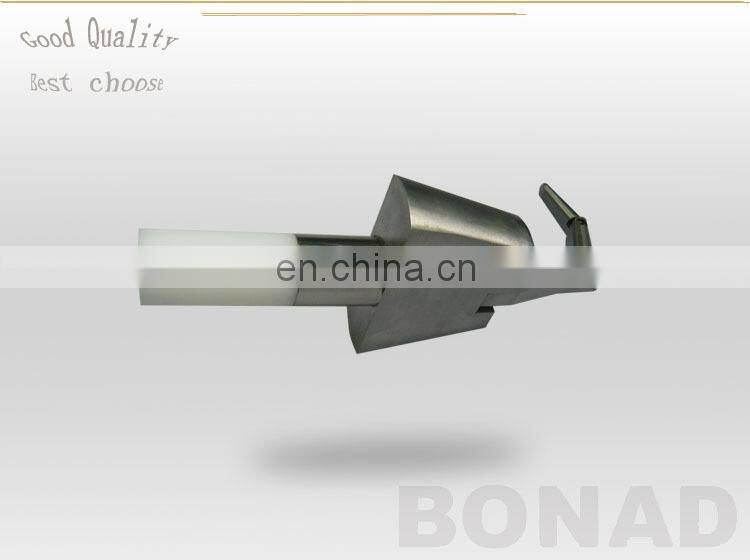

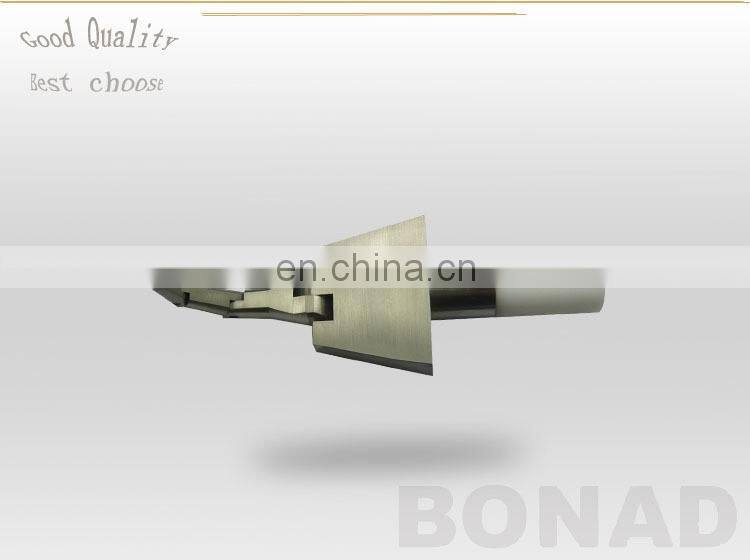

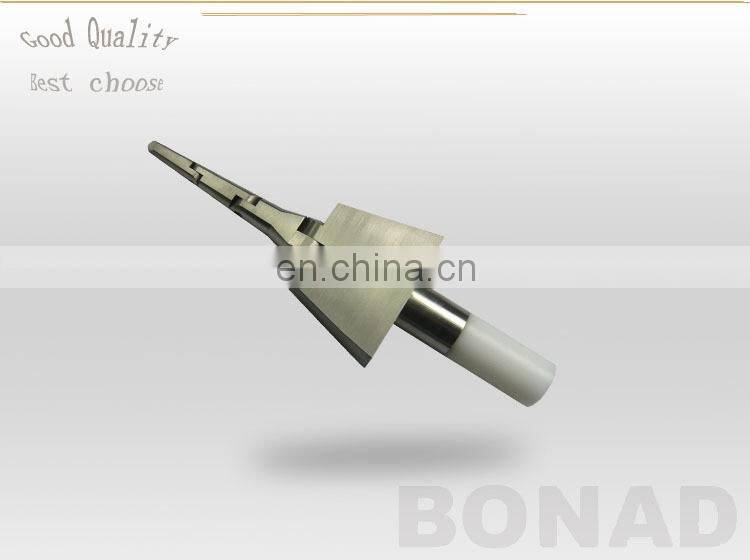

Model BND-PA100 Articulated Metal UL Finger Probe
Introduction:
1. BND-PA100 is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. The joint parts and also the stop surface are made of high-grade steel. The handle consists of. The links can be positioned at a right angle. 4 mm receptacle is integrated at the handle, which is conductively connected to the finger probe.
2, Mainly used for the inspection to prevent the body touch dangerous live parts,heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is necessary for protection against electric shock test of household and similar electrical appliances
Standard: UL507,UL982
Application: electronic products and electrical appliances.
Product show
Detailed Information
Model Number | BND-PA100 |
Materials | Stainless Steel+ polyamide. |
Test finger length | 234mm |
Knurled length | 30/30/40mm |
Material | stainless steel and nylon |
Reference | UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065 |
Packaging & Delivery
Packaging : To be packed in aluminum foil box
Delivery : Within 3-7days after receiving your payment
