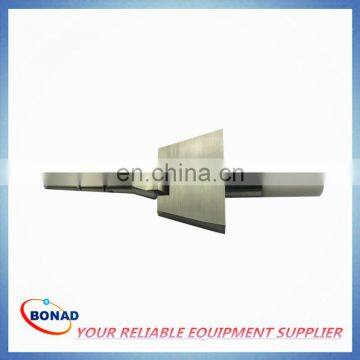

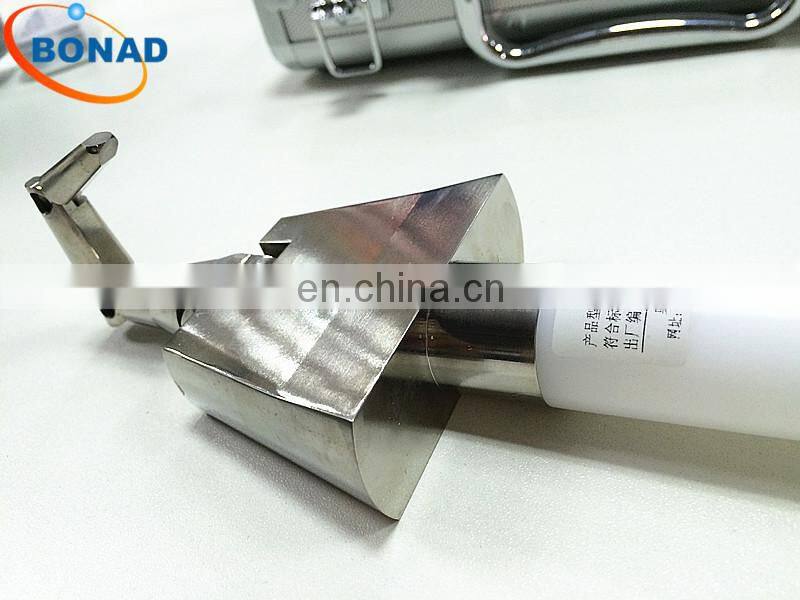

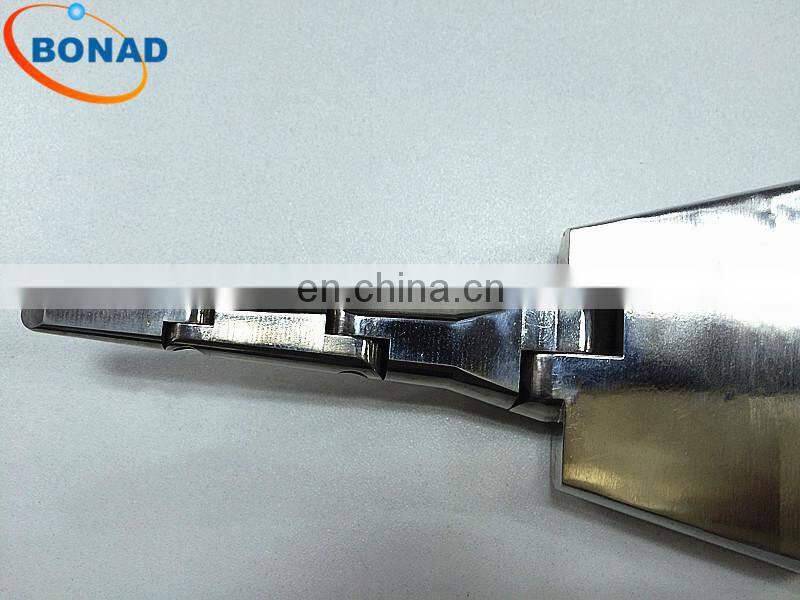

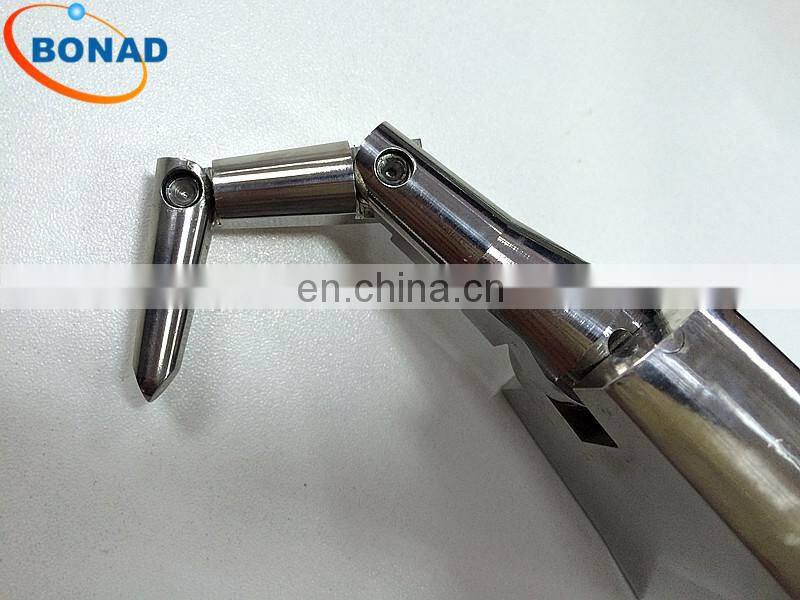

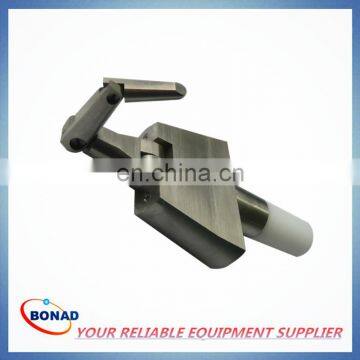

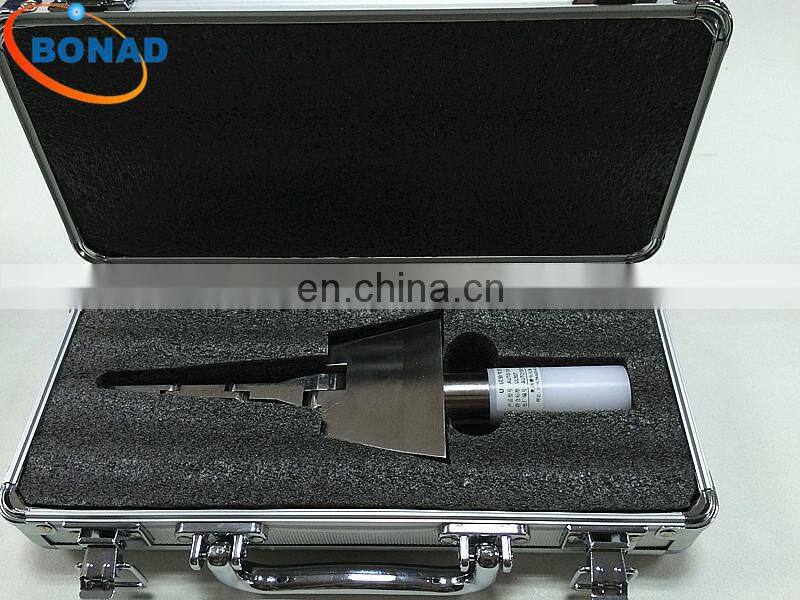

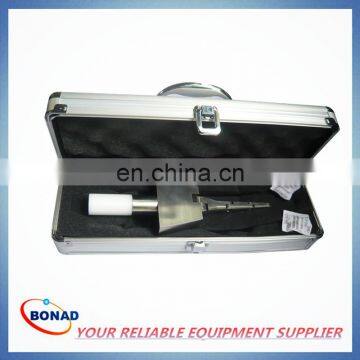

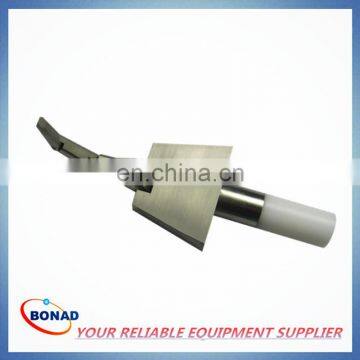

Articulated Jointed Test Finger

UL standard Articulated Jointed Test Finger

Article  NO.:BND-PA100

Test Finger Length: 234mm

The Bending Part Length: 30/30/40mm

1, According to : UL507 (PA100A), UL1017 figure 2, figure 6.5 UL1062, UL982 figure 7.1 and figure 1.2 UL474 figure 5.1 and figure 14, UL60065 UL6500 figure 14, Figure 7.2 and figure 8.3 UL1278 UL1082

2, UL Jointed test finger probe meets the standard requirements of UL60335,UL476,UL1026,UL5076,used for simulating fingers in the test. It is mainly used for preventing the finger from approaching to the hazardous parts in the condition of exerting forces, to ensure the products have enough safety protections when accidentally touching the live parts in the process of the normal use.

3,This is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. Made of all nylon. Bell-Core accessory available.The handle is made of nylon. The finger is made of stainless steel.

4.The finger part of UL jointed test finger probe cannot touch the live parts or the hazardous parts, and 50mm-78mm dam-board cannot enter entirely. In partly of the preventing from approaching the hazardous parts test, UL test finger probe should be exerted thrust.
