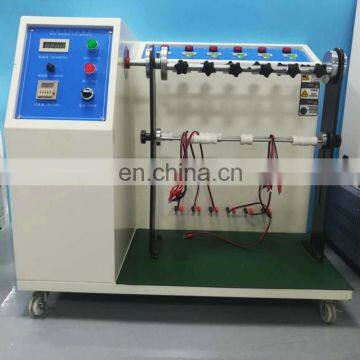

Summary —— Power line/Wire swing test machine
Cable Plug Bending Testing Machine is suitable for the plug pinouts, power cord, USB cable, headph-one
cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen
is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view
the total number of oscillations, it can automatically count, try to bend to break when not powering on, and
automatically stop operation. Native UL817 related standards such as "cords General safety requirements
for components and power supply cords" provisions and general technical requirements for the headphone
wire bending tests of the standard GB/T14471-93.
Main Parameters —— Power line/Wire swing test machine
| Product name | Power line/Wire swing test machine |
| Test stations | 6 groups |
| Bending angle | 0-180 ° adjustable |
| Test speed | 10-60/min |
| Control system | Digital with LCD screen |
| Counter | 0-999999 |
| Load weight | 50, 100, 200, 300, 500g |
| Machine weight | Approx 100kg |
| Power | AC220V, 50HZ |
Features —— Power line/Wire swing test machine
1.The Cabinet with electrostatic paint treatment, according to various standards of design, machine design
is reasonable, Fastening structure, safe, stable and accurate;
2.Counter can be preset, test, test automatic counting of conduction, reached number machine Stop with
power off memory function, convenient and practical;

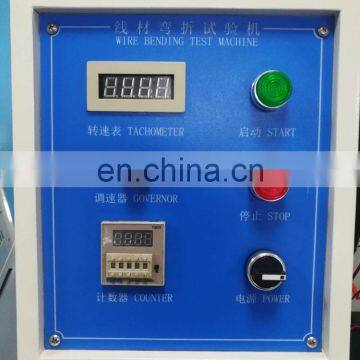

3.Speed knob adjustable, LCD display, set customers according to their requirements, the user friendly
design;
4.Manually adjustable bending angle, indicates the needle indicates the scale dial, to better regulation;

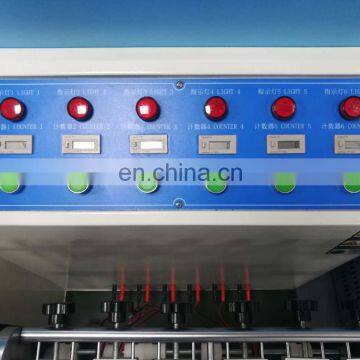

5.Six stations while working independently, respectively, counting, one line, the corresponding counter; stop
counting machine as usual test, improve testing efficiency;

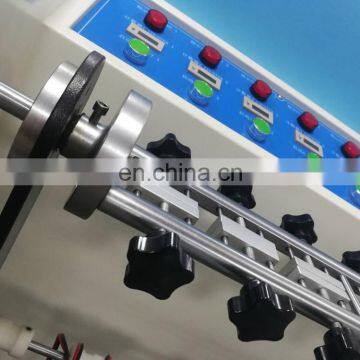

6.Six groups of nonslip, easy to damage materials specially designed handle, clamping products more
convenient, fast;
7.Test rods can be adjusted up and down, according to the standard requirements, and test better;
8.The distribution of weights with hook loading, multiple stacking, hanging more convenient.
Full imagines——Power line/Wire swing test machine
We have professional packing workers to pack your products!
Packing:
1. Out packing:Standard export wooden case.
2. Inner packing:With careful stretch film wrap product, hard wood board+ strong bandage to fix corners.
3. Checking teams: Specialized staff to inspect and classified your goods.
Shipping:
You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt ofyour order. It's more preferable for you to provide us with your own FEDEX/DHL account number so that the delivery charge can be charged directly from your account.
ZONHOW has been providing companies with materials testing equipment for over 10 years,addressing the
many quality analysis needs of products. It will perform tests in conduct tensile, compression,bending, shearing,bonding strength, peeling, tearing and other tests. It is suitable for rubber, plastic,leather, metal, nylon line,
fabric, paper, aviation, packaging, construction, petrifaction, electrician, vehicle and other materials.
There are many built-in test procedures to meet most requirement and standards. It is our objective at ZONHOW to provide our customers the best ownership experience by delivering the highest quality products and accessories that offer accurate and reliable test results and time savings.
Our Products
Alcohol Abrasion Test Machine Drop Test Machine Of Free Fall Material Tensile Testing Machine Mobile tumbling test machine
Here just just parts of our mobile testers , do you want to know more ? Please click here!
Together create a better future
1.Are your company a trading one or a factory ?Factory + trade (integration),10 years focusing on test instruments field,3 years exporting experience.
OEM is also acceptable for us.
2.How to choose the most suitable products?
Our professional team will give you the best suggestion as long as you tell us what kind of test you
need to do and the required specification.
3.What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
4.Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
5.Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to
arrange hotel and pick up you from airport.
6.Do you have customers of our country before?
Now our testing machines have been sold to more than 26 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,Iran,
Brazil and so on.
7.How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
8.How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
9.What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and
debugging - balance payment - packing - delivery - customer receiving - after service.
10.How to install and use the product
The product is shipped with an operating instructions and video of English version.
