High-performance Cable Bending Testing Equipment Supplier
Summary --Copper Wire Flex Testing Equipment, Cable Bending Fatigue Testing Machine

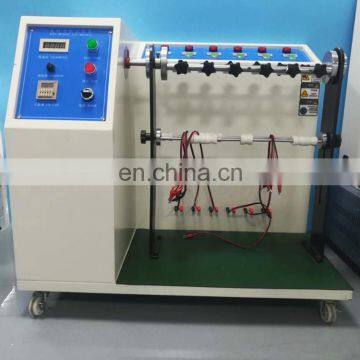

Wire bending testing machine is suitable for the plug pinouts, power cord, USB cable, headphone cable, audio cable, headphone cable and other products wire rod bending tests or swing test. The specimen is fixed at fixture, and adding certain load, test swing around and through a few times, its outage, and view the total number of oscillations, it can automatically count, try to bend to break when not powering on, and automatically stop operation. Native UL817 related standards such as "cords-General safety requirements for components and power supply cords" provisions and general technical requirements for the headphone wire bending tests of the standard GB/T14471-93.
Main Parameters --Copper Wire Flex Testing Equipment, Cable Bending Fatigue Testing Machine
| Test stations | 6 groups |
| Bending angle | 0-180 ° adjustable |
| Test speed | 10-60/min |
| Control system | Digital with LCD screen |
| Counter | 0-999999 |
| Load weight | 50, 100, 200, 300, 500g |
| Machine weight | Approx 100kg |
| Power | AC220V, 50HZ |
Features --Power Wire Bend Tester Laboratory Equipment Wire Bending Tester
1,The Cabinet with electrostatic paint treatment, according to various standards of design, machine design is reasonable, Fastening structure, safe, stable and accurate;
2, Counter can be preset, test, test automatic counting of conduction, reached number machine Stop with power off memory function, convenient and practical;
3, Speed knob adjustable, LCD display, set customers according to their requirements, the user-friendly design;
4, Manually adjustable bending angle, indicates the needle indicates the scale dial, to better regulation;
5, Six stations while working independently, respectively, counting, one line, the corresponding counter
Stop counting machine as usual test, improve testing efficiency;
6,Six groups of nonslip, easy to damage materials specially designed handle, clamping products more convenient, fast;
7, Test rods can be adjusted up and down, according to the standard requirements, and test better;
8, The distribution of weights with hook loading, multiple stacking, hanging more convenient.
Detailed Information-Copper Wire Flex Testing Equipment, Cable Bending Fatigue Testing Machine
3.4 Point Bending Testing Machine Wire and Cable Bending Testing Machine
Tooth brush bundle bending force tester Leather/Cloth Flex testing machine
We have professional packing workers to pack your products!
1.Out packing:Standard export wooden case;
2.Inner packing:With careful stretch film+ hard cardboard;
Company Information
ZONHOW Though 10 years of continuous development, our company has established the main products line of Universal strength testing machines. Environmental testing chambers and Cell phone, computer testing machines.Package and paper print test equipment and so on! Our equipment is used in over 80 countries worldwide and supported by a network of offices and approved agencies. Our products are used in all industries and educational sectors and we have an enviable reputation for innovation, quality product and excellent customer support.
Our Service
Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--18 months warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
FAQ
1. Q: What is your warranty ?
- 12 months product warranty.Free components will be provided if any performance failure occurs within 12 months caused by non-human damage.
2. Q: How-to vedio provided ?
- Yes, if required, our engineers will record a specialize how-to video for you.
3. Q: Is the machine made in your own plant ?
- Yes, welcome to visit our plant(factory), also we support OEM and ODM.
4. Q: What about the quality ?
- Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.
All of our machine are strictly according to CE & ISO standards.
