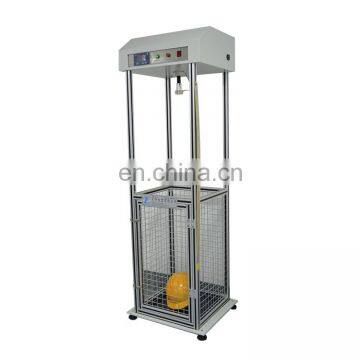

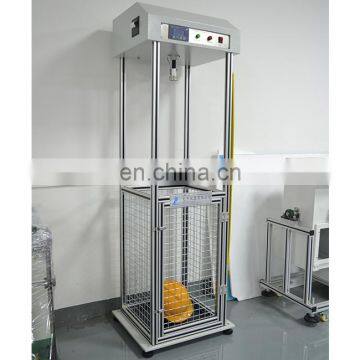

Testing Machine for Safety Helmet Safty Helmet Impact Testing Machine Safty Helmet Impact Tester

Summary:

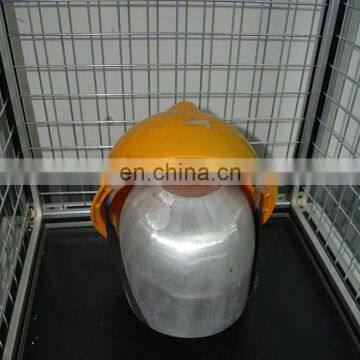

This machine specially test fire helmets impact resistance performance, can also do the anti-penetration properties test. Determination of fire helmets impact resistance performance, put the special head model with a good helmet (aluminium magnesium alloy materials) installed in the high sensitivity of the sensor, then use the 5kg hammer from 1 m height of impact, and the high sensitivity strength induction device detect the impact instantaneous force value to judge helmet shock absorption performance is good or bad.

Principle:

Determination of the helmet antipenetration properties test, first fix the head model on the base, make head model,Steel cone and electrical contact display device to form a closed circuit, then put 3kg steel cone from 1 m height fall to puncture helmet, after puncture observation electrical contact display device. Judge helmet anti-penetration properties is good or bad.

Specifications:

Standard:

GB / T 2812-2006: Test method for safety helmet

ISO 3873: Industrial safety helmets

GB2811-2007: Safety Helmet

Other international Safety Helmet Test Method

Features:

1, Drop hammer and hammer to replace simple operation.

2,With automatic guidance system to ensure accurate impact hammer and hammer down exactly hit the helmet.

3, The puncture hammer adopt a closed circuit, will alarm after puncture

4, wallop professional precision sensors, range is 2t, accuracy is ± 0.02%.

5, LED digital display, auto-save maximum force.

6, The height of impact hammer and puncture hammber can be adjustable.
