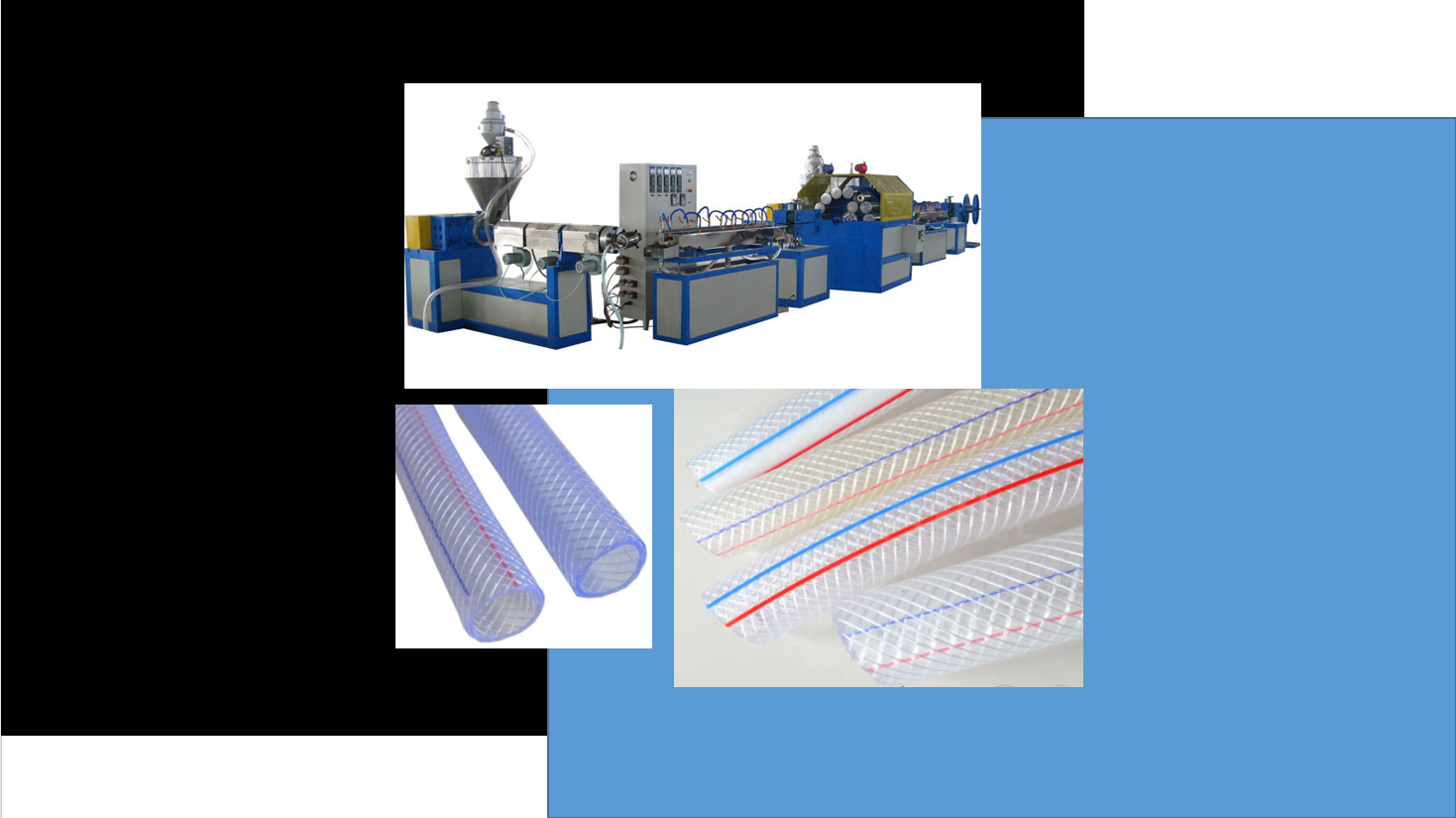

PVC Fiber Reinforced Flexible Water Hose/ Flexible Pipe Machine
Fiber reinforced hose is divided into two types: fiber-reinforced polyurethane hose and fiber-reinforced nylon hose.
Fiber reinforced polyurethane hose (XPU)
Features: smooth appearance, small bending radius
Properties: high strength, high modulus, high elasticity, tear resistance, solvent resistance, oil resistance, weather resistance, and also in rubber and plastic properties. His outer diameter, bending radius and weight are all 1 / 2-1 / 3 of the inner diameter rubber pipe of the same use, which is very convenient for process design and manual installation.
Application: high pressure and low pressure hoses are mainly used in machine tools, automobiles, engineering machinery, high pressure hoses on motorcycles, brake oil pipes, and pneumatic instrument lines in automatic control of industries such as petroleum, chemical, pharmaceutical, smelting, etc.
Structure: inner core nylon (XPA) reinforcement layer: fiber woven skin: polyurethane (PU)
Features: smooth appearance, small bending radius
Properties: high strength, high modulus, high elasticity, tear resistance, solvent resistance, oil resistance, weather resistance, and also in rubber and plastic properties. His outer diameter, bending radius and weight are all 1 / 2-1 / 3 of the inner diameter rubber pipe of the same use, which is very convenient for process design and manual installation.
Application: high pressure and low pressure hoses are mainly used in machine tools, automobiles, engineering machinery, high pressure hoses on motorcycles, brake oil pipes, and pneumatic instrument lines in automatic control of industries such as petroleum, chemical, pharmaceutical, smelting, etc.
1.Construction of PVC Fiber Reinforced Flexible Water Hose/ Flexible Pipe Machine
-Tube: Extrude industrial grade, food grade or medical grade material with DOP or DDP or with health protect soybean oil plasticizer
-Reinforcement:one or two layers fiber braid reinforcement
2.Constant operation: -5℃to +65℃
3. Color available: Transparent or by customer’s request
Supplying water, gas, oil in agriculture and industry.
Conveying solid particles, pulp in mines, engineering etc.
Good adaptability to hard weather condition and minus pressure, small bending radius, anti-abrasion.
| Voltage | 380V/ 3P/ 50Hz |
| Raw Material | PVC Granules |
| Product Specification | 16-32 mm |
| Output | 50kg/h |
| Total Power | 45kw (Normal Power 36 kw) |
| Coling Water | Circulating Water 15-30℃ |
| Equipment Size | 18000*2500*2300 mm |
| Weight | 2000kg |
