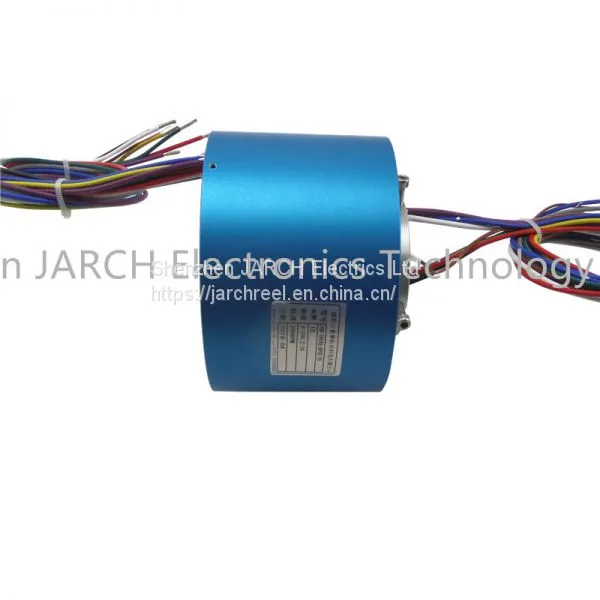

hollow shaft through bore slip ring
Jarch slip ring provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 100mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.
Benifits:
· Unique signal handling performance with minimal electrical circuit noise
· Tight packaging to fit in the most demanding space constraints
· Fully compatible with both analog and TTL control level signals
· Precision ball bearings for long life
· Sealed units available,IP67 optional
· Rugged anodized aluminum construction
· Available with Ethernet
· Rapid delivery of electric swivel slip ring
You can tell us the specifications of the slip ring you need, we will do as your requirement.
Specifications:
| Rings | 2~36 | Current | Signal(2A) or 5A/10A/15A/20/30 |
| Voltage | mV~380 VDC/VAC | Max speed | 500RPM (1000~3000RPM Optional) |
| Through bore size | 25.4mm(1.0") | Overall diameter | 78mm(3.0") |
| Housing Material | Aluminium Alloy | Torque | 0.05N.m;+0.03N.m/6rings |
| Working life | 50million | Contact material | Precious Metal:Gold-Gold |
| Electrical noise | Contact Resistance | ||
| Dielectric strength | 1000VDC@50Hz | Lead Wire | UL Tf Awg26,Awg22,Awg16 |
| Insulation resistance | 500MΩ@600VDC | Lead Lengths | 300mm(12") |
| Operating Temp. | -40°C to 80°C | Protection | IP54 (IP68 Optional) |
| Materials | Lead Free, ROHS | Certificate | CE,FCC,UL,ROHS |
Electric swivel slip ring Applications:
• Exhibit/display equipment
• Packaging / wrapping machinery
• Semiconductor handling systems
• Industrial machinery
• rotary index tables
• Process control equipment
• Heavy equipment turrets or cable reels
• Emergency lighting, robotics Palletizing machines, Option
• Medical equipment | rotary sensors, emergency lighting, robotics
• Miniature cable reels
Why to choose JARCH slip ring?
JARCH Company is a professional slip ring manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
With more than 19 years' experience in the field, JARCH has established long term business relationships with transnational corporations, research institutes, military-industry departments, famous universities as well as a lot of companies in various industries at home and abroad.
We specialize in custom slip rings solutions tailored to meet your project's requirements for performance, testing, qualification and delivery. Our teams understand the importance of comprehensive project planning ensuring your project's success.
