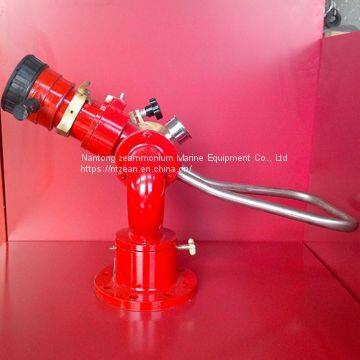

Ps40-50 Fire Water Monitor Inlet Flange DN100 Fire Monitor Chemical Acceptance Fire Water Monitor 3C Approval

Equipment description

Fire water monitor is a fire-fighting equipment which uses water as the medium to put out the fire in a long distance. The gun is suitable for petrochemical enterprises, tank farms, aircraft hangars, warehouses, port terminals and other places. It is also an ideal vehicle mounted fire monitor for fire trucks.

Equipment features

The fire water monitor is composed of base, water inlet pipe, revolving body, water collecting pipe, jet regulating ring, handlebar and locking mechanism, which can make horizontal rotation and pitching rotation and realize positioning. The gun has a wide range of pressure, a long range, and can be used to adjust the water mist jet from DC to 90 °. It is characterized by light weight, small volume, full function and good fire extinguishing effect.

technical parameter

Use and maintenance

1. The gun should be used within the working pressure range.

2. The integrity and operation flexibility of the gun should be checked frequently. If the fastener is loose, it should be repaired in time to keep the gun in the position of

Good working condition.

3. During the water injection operation, loosen the locking screw, adjust the injection direction and angle of the gun, and then increase the pressure to be used.

4. By rotating the jet regulating ring, the direct current of water can be transformed into flowering, or the flowering can be transformed into direct current.

5. After each use, water shall be sprayed for a period of time, and then the water in the gun shall be discharged completely.

6. The rotating part of the gun should be lubricated frequently to ensure flexible rotation.

7. When spraying, no one can stand in front of the muzzle.

8. Cannons should not be used to put out live equipment to avoid electric shock.

9. In non working state, the gun shall be placed in horizontal state and covered with rainproof cloth.
