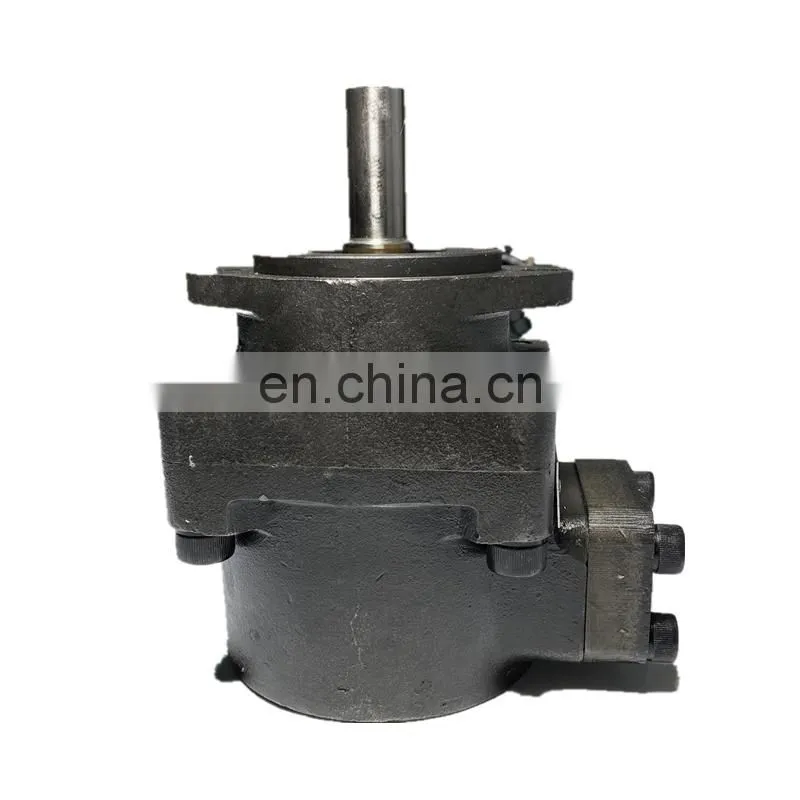

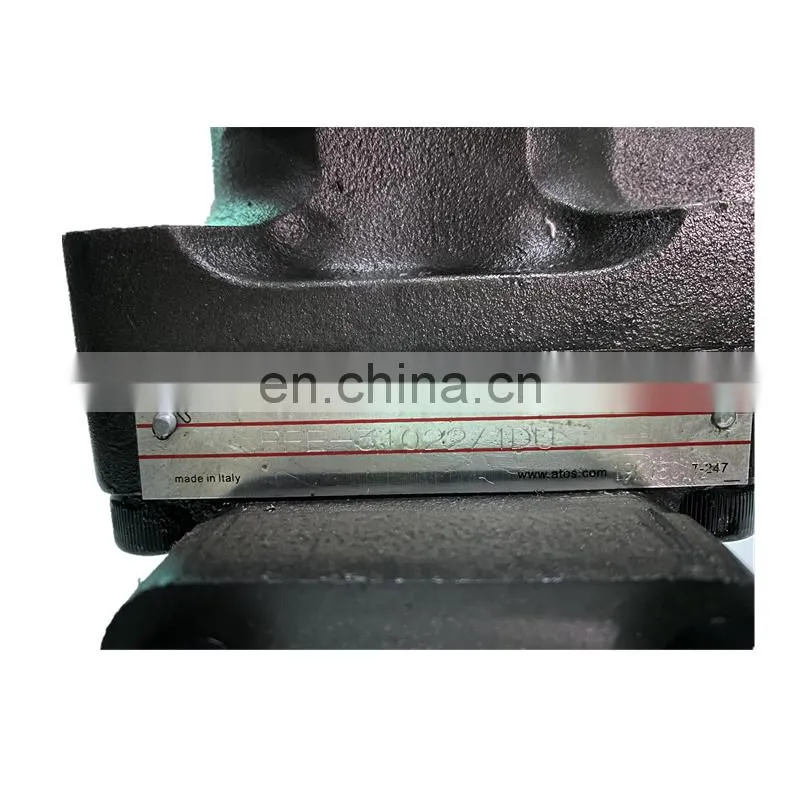

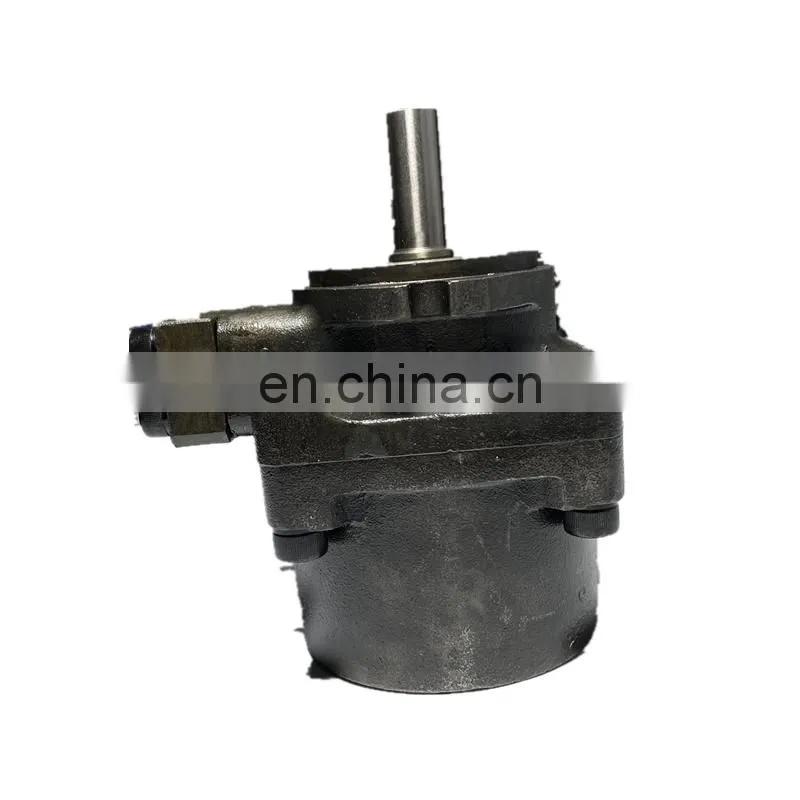

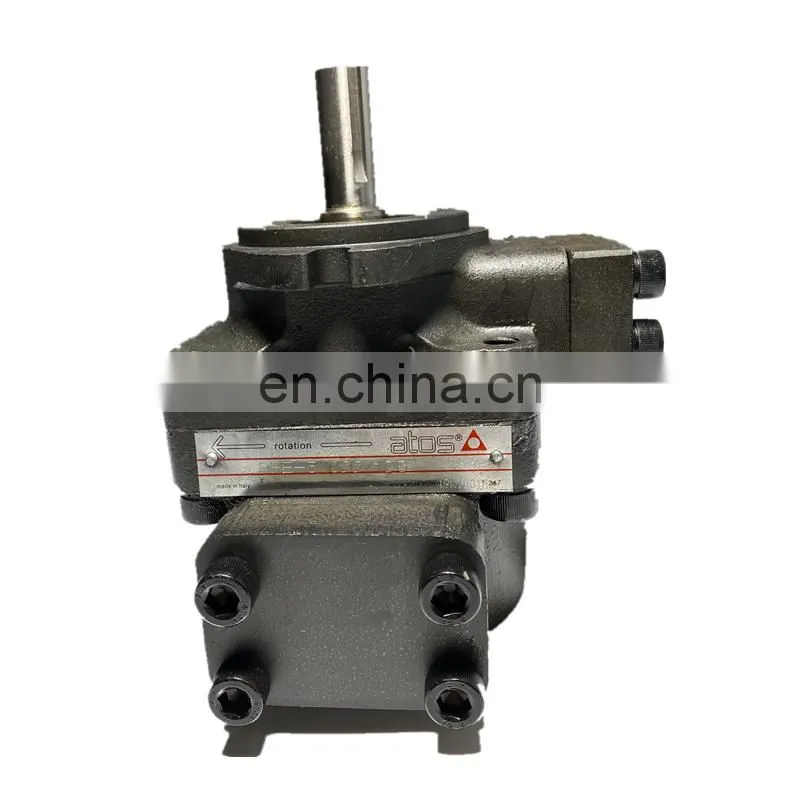

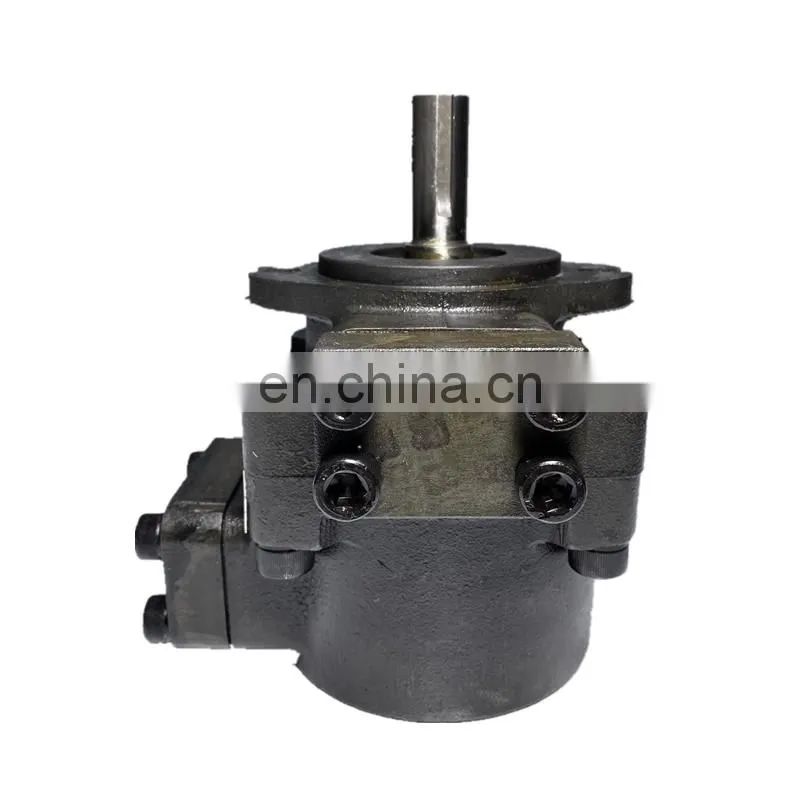

Trade Assurance Italian original ATOS PFE-42 series PFE-42045 PFE-42056 PFE-42070 PFE-42085 hydraulic vane pump

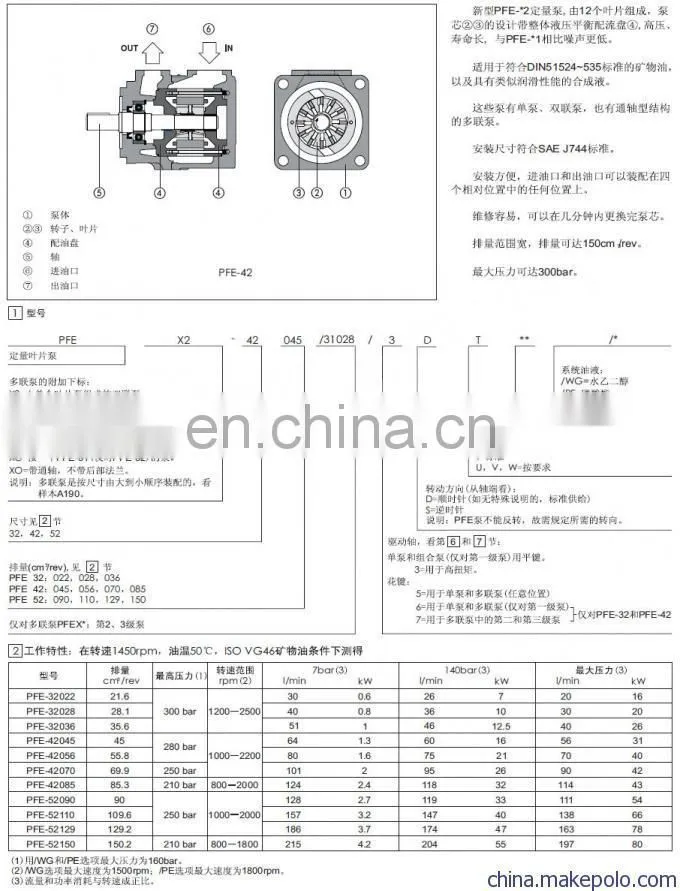

PFE series high performance vane pump has eight series and 75 specifications of single pump (pfe-31 / 41 / 51 / 32 / 42 / 52) and double pump (pfed-4131 / 5141). Its displacement range is 16.5-150ml / R, rated pressure is 21-30mpa, speed range is 600-2800r / min (on this basis, pfe-21 / 61 two series single pump, the displacement range is expanded to 5-250ml / R).
The pump is designed with unique technology and eccentric pin vane structure. It has a series of advantages such as high pressure, large flow, small volume, stable operation, low noise, high efficiency and long service life. Its main technical indexes reach the advanced level of similar products in the world.
This series of pumps are of plug-in structure. The optimum design of the movement further reduces the pressure, flow pulsation and noise. The front and rear side plates have the same structure and symmetrical grooves, and are hydraulically balanced to ensure consistent deformation and compensation, so that better volumetric efficiency can be obtained. The reasonable design of the oil supply system at the root of the blade and the pin ensures the good contact between the blade and the stator, and minimizes the flow loss. Unique design, high precision machining and reasonable selection of materials make the pump have very good life index.
PFE series vane pump has complete specifications, excellent and reliable performance, simple and reasonable structure, convenient installation and maintenance (installation and connection conform to ISO / SAE standard), and can be widely used in machine tools, pressure casting machinery, engineering machinery, metallurgy, mining, light industry, chemical machinery, agricultural machinery and various hydraulic systems.
PFE-21 series: PFE-21005, PFE-21006, PFE-21008, PFE-21010, PFE-21012, PFE-21016
PFE-31 series: PFE-31016, PFE-31022, PFE-31028, PFE-31036, PFE-31044,
PFE-41 series: PFE-41029, PFE-41037, PFE-41045, PFE-41056, PFE-41070, PFE-41085
PFE-51 series: PFE-51090, PFE-51110, PFE-51129, PFE-51150
PEF-61 series*: PFE-61160, PFE-61180, PFE-61200, PFE-61224
PEF-22 series: PFE-22008, PFE-22010, PFE-22012
PEF-32 series: PFE-32022, PFE-32028, PFE-32036,
PEF-42 series: PFE-42045, PFE-42056, PFE-42070, PFE-42085,
PEF-52 series: PFE-52090, PFE-52110, PFE-52129, PFE-52150

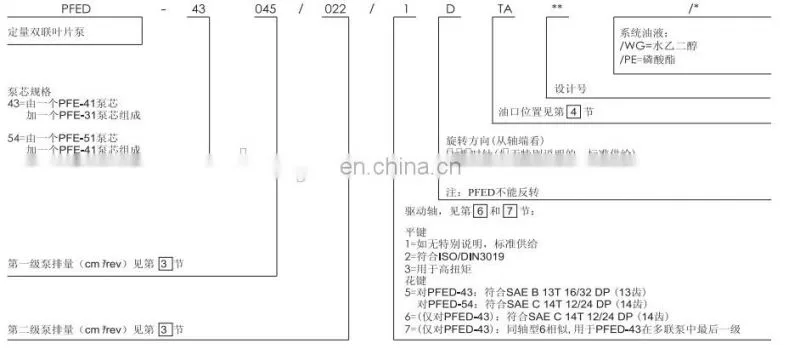

Double PFED series:
PFED-32, PFED-42, PFED-43, PFED-53, PFED-54
| Our product range | Hydraulic pump parts | |
| Hydraulic pump | Cylinder block | Press pin |
| Piston motor | Piston shoe | Snap ring |
| Piston pump | Retainer plate | Coil spring |
| Gear pump | Ball guide | Disk spring |
| Charge pump | Valve plate | Barrel washer |
| Pilot pump | Shoe plate | Oil seal |
| Vane pump | Bearing plate | Frication plate |
| Repair OEM parts | Swash plate | Steel plate |
| Motor spare parts | Drive shaft | Metal |
Product Features:
Packaging details
Standard export wooden case or as your requirements
Delivery details
3~5 days after payment
FAQ
Q:What Is Our Main Application?
A:1.Hydraulic system
2.Agriculture machine
3.Construction machina
4.Automobile
5.Local distributors
Q:What Is The Payment Terms?
A:Full order:30% as desposit, the balance before shipment:
Small order /sample ordre: full payment in advance:
Q:Can I Mark My Own Brand On The Pump?
A:Yes. Full order can mark your brand and code.
Q:What Is Our Main Export Market?
A:Europe (41.7%):Italy,Germany,England,France,Holland,Greece,Spain,Portugal,Swissland,Finland,Czekh,Russia,Poland
Asia(40.5%):China,Korea,Singapore,India,Turkey,Iran,Vietnam,Saudi Arabia,Syria,Isreal,Lebanon
Q:How Long Is Guarantee?
A:We give 1 year guarantee.
