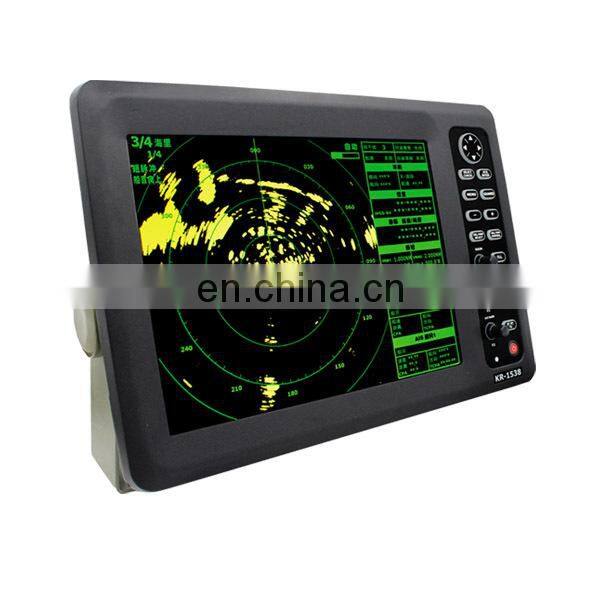

36NM 15inch Color LCD Marine Radar
- 100 Set / Sets per Month
- China Mainland
- T/T Credit Card
Product Details
Brand Name: | Dowin | Place of Origin: | Chongqing, China | Model Number: | DW-KR |
Product Description
36NM 15inch Color LCD Marine Radar
Customizable Data Field, more flexible data display.
System Software can be upgraded via USB.
AIS display function.
Multiple-Color selection for target and background.
Rugged die-cast, waterproof housing.
“Target Tracking” (TT) function, can track and trace up to 20 targets.
User-programmable function keys.
Automatic optimization of radar picture.
Newly enhanced performance.
Head-up, Course-up and North-up representation mode.
Economy Mode, Guard Zone Alarm and Watch Mode.
ANTENNA RADIATOR | |
Type | KR-1538: 55cm hybrid array |
Length and Rotate speed | KR-1538: Radome 60cm (KRA-1004) 24RPM |
Wind load | Relative wind 100 knots |
Beam width | KRA-1004: Hor: 4″ Vert: 25″ |
RF TRANSCEIVER | |
Frequency | 9410 +/-30MHz (X-band) |
Pulse length PRR | 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm) 0.3µ s/1200 Hz(1.5*, 2, 3 nm) 0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48**, 64**nm) Pulse length & PRR for 1.5 and 3nm ranges can be select in menu** KR-1568 |
Peak Output Power | 4KW nominal |
Mixer and Local Oscillator | Microwave Inter grated Circuit |
IF | 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s) |
Noise Figure | 10dB nominal |
ENVIRONMENT | Temperature: |
POWER SUPPLY | 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode) |
DISPLAY UNIT | |
Type | 15″ LED backlight, 32-bit TFT Color LCD Display |
Display Modes | Head-up, Course-up*, North-up*, True Motion** |
Range Scale (nm) | Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48**, 64**, 72** |
All the pack can make according to customers requirments.
1. Customized Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 12 hours.
4. 24 hour online service.
5. After shipping, we will track the products for you every single day until you get the products. When you get the goods,test them, and give me a feedback.Please feel free to contact us if you have any questions, we will offer the solutions for you.
DOWIN is driven by innovation and aimed for building long lasting relationships with our customers.We are dedicated in the pursuit of good quality of our products in this marketing with high-efficiency and profession. In a word, your concern is our top priority.
Professional technicians, fantastic products, competitive prices and good after-sales services enabled us to earn high reputation among our customers all over the world. We work hard to make sure everything goes as required and with high standard quality. There should be no hesitation in contacting DOWIN for your needs in steel products, marine equipment, automobile and motorcycle parts, for either standard products or new designs.
Just contact DOWIN.We will be your reliable partner.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T(T/T 30% as deposit, and 70% before delivery),Western Union,Paypal. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU,DDP.
Q4. How about your delivery time?
A: Generally, it will take 7 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
