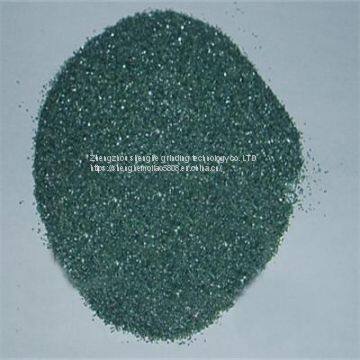

Green silicon carbide is green, containing more than 97% SiC, crystal structure, high hardness, strong cutting ability, stable chemical properties, good thermal conductivity.
The microcosmic shape is hexagonal crystal, the mohs hardness of silicon carbide is 9.5, the microhardness is 3280--3400kg/mm2, and the specific gravity is 3.20 ~ 3.25. The hardness
It is between corundum and diamond, and its mechanical strength is higher than that of corundum. Green silicon carbide is petroleum coke and high quality silica as the main raw materials, adding salt as Tim
Added, through the resistance furnace high - temperature smelting.
Main applications: solar wafer, semiconductor wafer, quartz chip cutting and grinding; Polishing of crystal and pure grain iron; Fine ceramic and special steel
Dense polishing; Consolidation and coating abrasives, cutting, free grinding and polishing; Can also grind glass, stone, agate and fine jewelry and other non-metallic materials
And can manufacture advanced refractory materials, engineering ceramics, heating elements and thermal energy elements.
2. Physicochemical indicators of green carbon:
brand
Particle size range chemical composition (%)
Particle size range SiC, f, c, Fe2 o 3
GC F4 - F90
P12 - P100 ≧99.10 ≦ 0.20 ≦ 0.20
F100 - F150
P120 - P150 ≧ 98.6 ≦ 0.25 ≦ 0.45
F180 - F220
P180 - P220 ≧98.00 ≦ 0.25 ≦ 0.50
F230 - F280
P240 - P360 ≧98.00 ≦03.0 ≦ 0.50
F320 F500 -
P400 - P1000 ≧97.5 ≦ 0.30 ≦ 0.50
F600 - F800
P1200 - P1500 ≧ 97.00≦ 0.35 ≦ 0.50
F1000 - F1200
P2000 - P2500 ≧96.50 ≦0.40 ≦ 0.50
