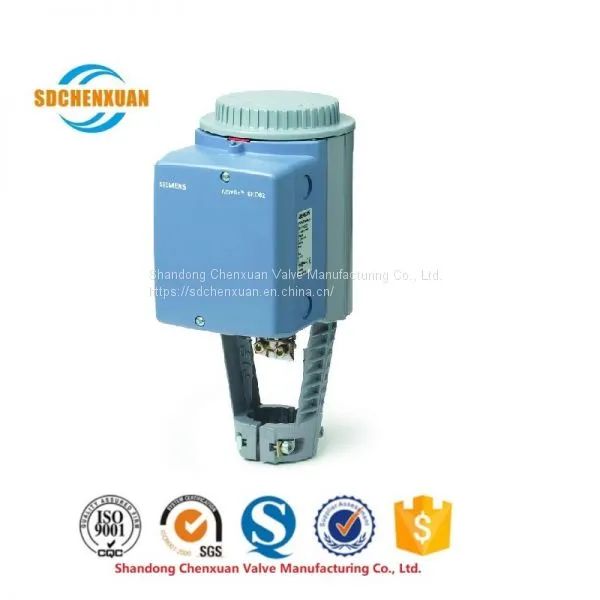

Electromotoric actuator for the operation of Siemens Combi valves, types VPF43.. and VPF53.. with 20 mm stroke as control valves in ventilation, air conditioning, district heating and cooling systems. With manual adjuster and position indicator, status indication per LED. With manual adjuster and position indicator, status indication per LED. Optional functions with auxiliary switches, potentiometer, functional module and stem heater.
Additional info
SA..81P.., SA..61P.. are UL listed.
Attribute |
Value |
Stroke |
20 mm |
Degree of protection |
IP54 |
Ambient temperature, operation |
-5...55 °C |
Mounting position |
Upright to horizontal |
Position feedback |
DC 0...10 V (SAX6.., SAX8..) |
Product Variants
SAX31P03 - Electromotoric actuator, 500 N, 20 mm, AC 230 V, 3P, 30 s
SAX61P03 - Electromotoric actuator, 500 N, 20 mm, AC/DC 24 V, DC 0…10 V / DC 4…20 mA, 30 s
SAX81P03 - Electromotoric actuator, 500 N, 20 mm, AC/DC 24 V, 3P, 30 s
