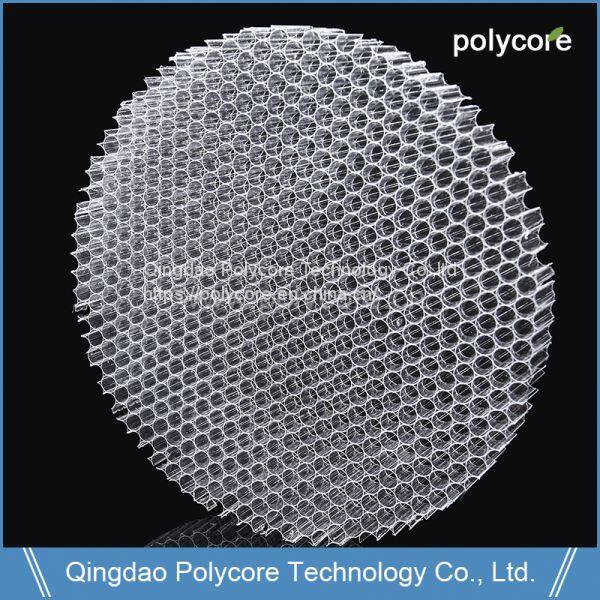

Sandwich Cores Available Transparent And In Colors Pc3.5 Honeycomb Panel

Introduction
Polycore is plastic honeycomb and honeycomb series products expert manufacturer,main products are PP honeycomb,PC honeycomb, FRP pp honeycomb sandwich board,non-woven roving fiberglass PP honeycomb composite board,PC sheet ,PC honeycomb sandwich board ,transparent honeycomb,transparent plates ,honeycomb plates ,honeycomb panel supplier from China.
light weight, stiffness PP honeycomb supplied with/without pet tissue on surface,  applied in boat, yatch, van, truck,ship, decoration , partition,building and others.

Application

Honeycomb sheets are used in the fabrication of lightweight structures.  The core material is typically 'sandwich' with plywood, aluminium, fiberglass, steel, granite, paper and other solid surface materials,  etc. To attach the surface material to the honeycomb sheet, a bonding adhesive can be used or the materials can be laminated with polyester or epoxy systems. For example,if select plywood as skin material,PP honeycomb as core material,one kind of resin or glue which is familiar with wood at same time it’s familiar with plastic material will be work to laminate plywood with PP honeycomb. In a similar way,if select fiberglass as skin material,PP honeycomb as core material,one kind of resin which is familiar with fibergalss at same time familiar with plastic material will workable to laminated fiberglass with PP honeycomb. Now most of client select fiberglass as skin material,epoxy or unsaturated resin as adhesive to laminate on PP honeycomb sheet.The resultant honeycomb panel results in one of the highest strength to light weight available.

Features

light weight with stiffness strength ratio
energy absorption；
corrosion,  fungi,  rot,  chemical,  moisture resistant；
Sound and vibration dampening；
Recyclable；
Electrical characteristics；
Magnetics characteristics；
Flexible；
Easy assembly

Polycore polypropylene (PP) honeycomb reportedly provides greater strength-to-weight ratio than traditional polyaramid or aluminum honeycombs. The cells of the PP honeycomb are essentially circular rather than hexagonal and are fused together rather than glued. The recyclable honeycomb can be thermoformed and cut to shape easily has energy-absorbing and sound- and vibration-damping properties, and is resistant to fungus, rot, chemicals and moisture.

Parameter

Honeycomb core cell diameter from 8mm to 12mm,most commonly adopted is 8mm,10mm,12mm can be made according to client request. Honeycomb core can be directly apply into air purify and other fields without tissue on both sides. Core cell wall thickness can be selected if clients have special requirement. Core cell 8mm density is 88kgs/cubic meter. Core cell 12mm density is 75kgs/cubic meter.

PP honeycomb sheet laminated with polyester tissue on both sides.  This allow better bonding of the honeycomb to different surface panel.  In addition to the tissue, honeycomb can laminated with a layer of PP film . The film under the tissue acts as a barrier to prevent resin leaking into the core thus save resin consumption in next assembly process Besides there is more stiffness plastic sheet with more thicker tissue.
