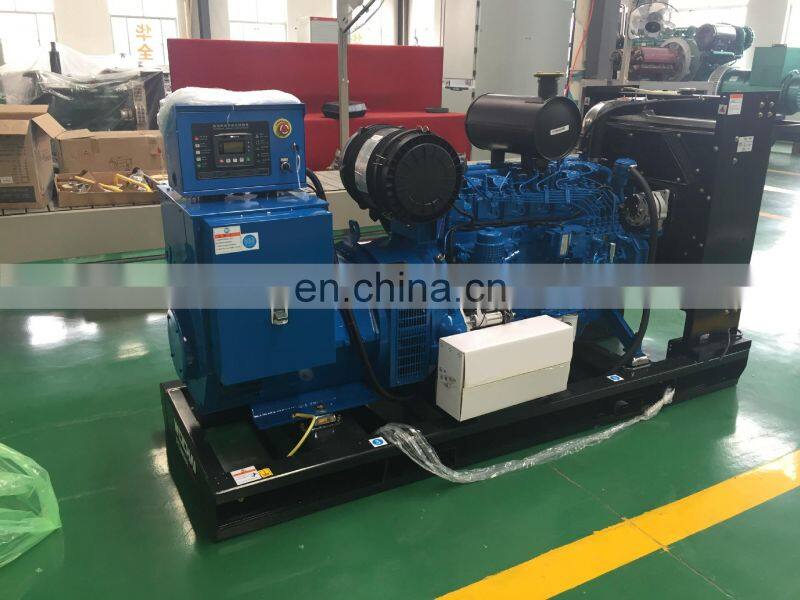

High Quality Weichai 24 kw generator

Name: High Quality Weichai 24 kw generator
Brand: weichai
Availability: InStock

FOB Price

USD $1,900 - $2,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Tianjin /Qingdao/China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	weichai	Place of Origin	Shandong, China
Model Number	24kw diesel generator	Rated Current	Depend
Speed	1500/1800rpm	Frequency	50/60HZ
Rated Voltage	400/230V

Product Description

Technical parameters of diesel generator sets:
Genset Technical data
Genset Model	WPG13.5L1 TO WPG1375C7
Prime Power	10KW to 1000KW 12.5kva to 1250kva
Rated Voltage	400/230V(voltage can be customized)
Frequency	50/60Hz

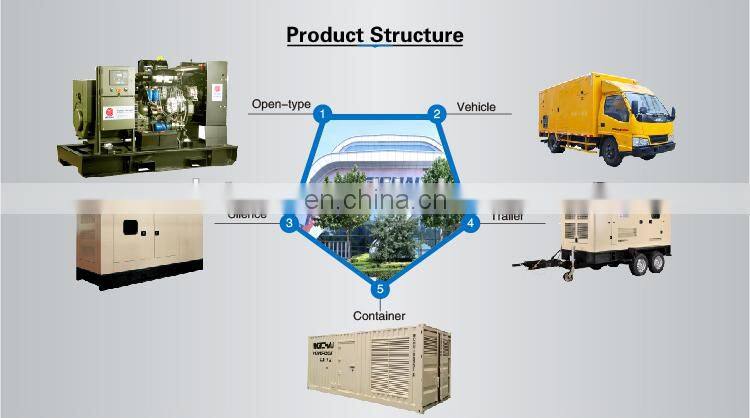

Diesel generator type	open,silent,soundproof,trailer,container
Color	Customized
ATS	Optional
Controller	Deepsea/Smartgen
Warranty	1year/1500hours
Certificate	ISO9001,CE,ISO14001
Diesel Engine
Brand	With Cummins Weichai Deutz Perkins SEDC Ricardo and so on
Rotating Speed	1500/1800RPM
Speed Governor	Electrical /Mechanical
Cooling System/Type	Water-cooled/Naturally/Turbocharged Inter-cooling
Alternator
Brand	Stamford/Leroy Somer/Marathon/Mecc Alte/Xingnuo...
Phase No.&Connecting Type	Three Phase and Four Lines 3P4W,Y Style Connection
Grading Protection	IP22
Exciter Type	Brushless (AVR automatic voltage regulating)
Insulation Class	H degree

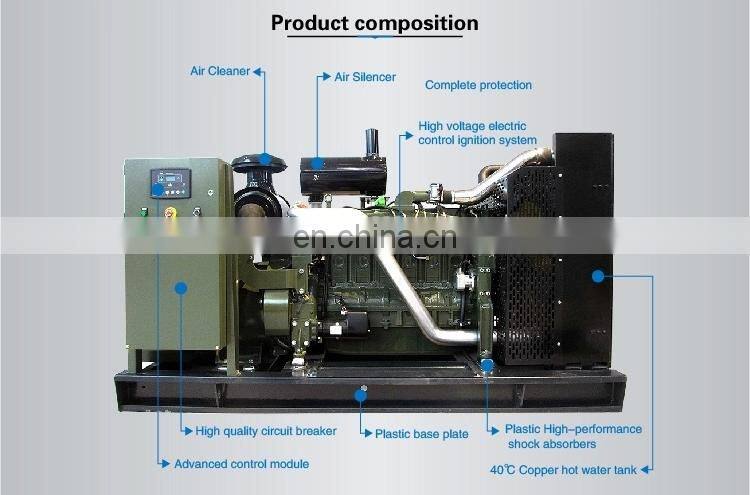

The components of the genset
(1) Diesel Engine; (2)Alternator; (3) Control Panel (4) Accessories
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.

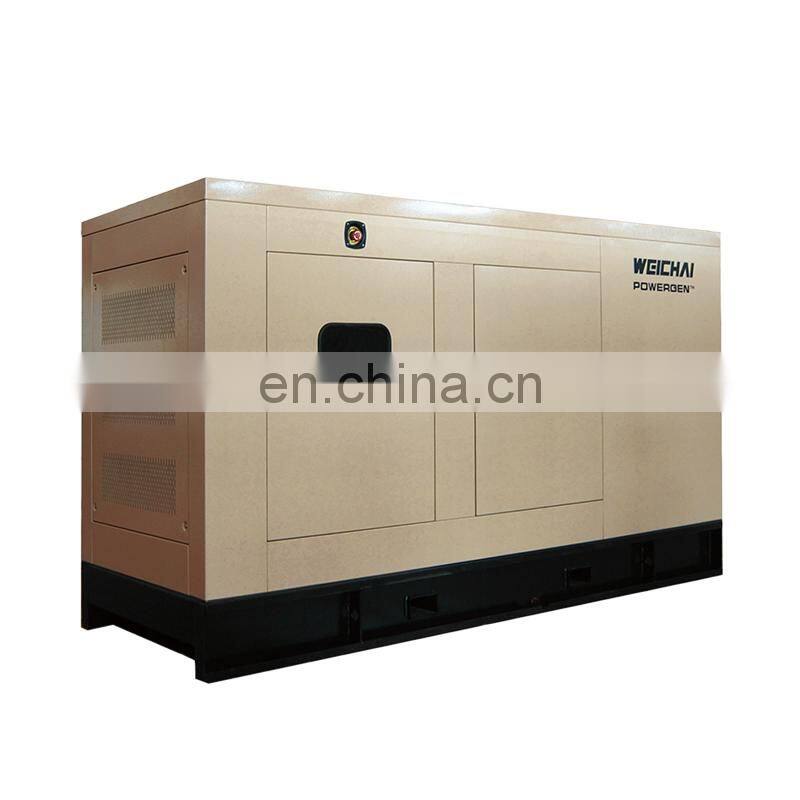

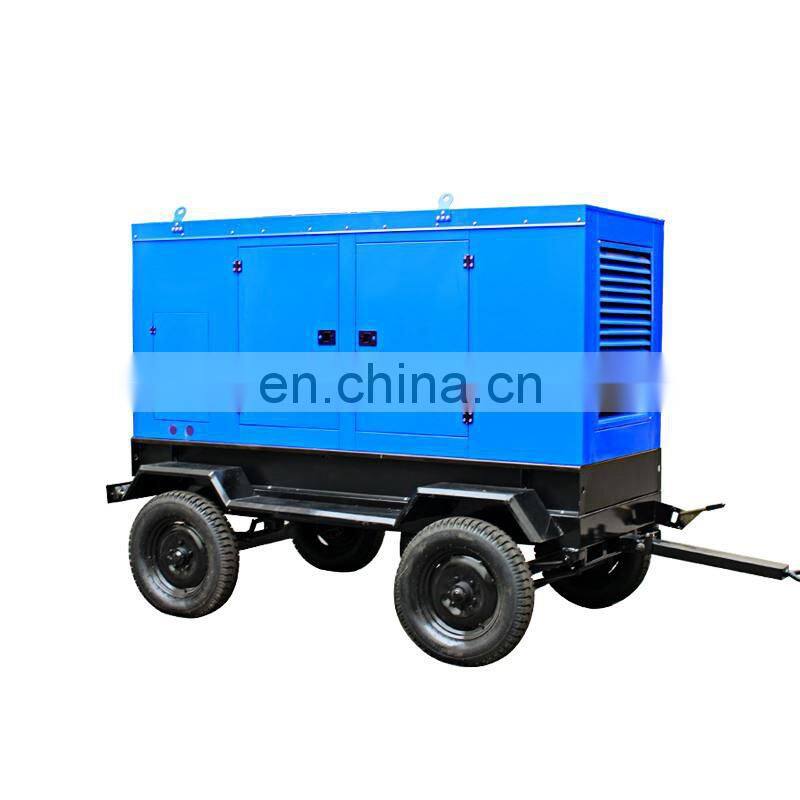

Open Silent Trailer Type

Product Sheetdate

Gensets model	Rated capacity (Kva/kw)	Standby capacity (kva/Kw)	rated current(a)	rated fuel consumption ratio(l/h)	Engine rated power (kw)	Engine cylinder numbers	overall dimensions(mm)	Gross weight (kg)
WPG13.5B1	12.5/10	13.5/11	18	3	18	4	1500x850x1250	499
WPG16.5B1	15/12	16.5/13.2	22	3.5	18	4	1500x850x1250	503
WPG22B1	20/16	22/17.6	29	4.5	23	4	1500x850x1300	590
WPG27.5B1	25/20	27.5/22	36	6	30	4	1500x850x1300	625
WPG33B1	30/24	33/26.4	43	7	30	4	1500x850x1300	631
WPG41B1	37.5/30	41/33	54	8.5	36	4	1500x850x1300	683
WPG55B9	50/40	55/44	72	10.8	60	4	2050x1080x1665	1161
WPG68.5-9	62.5/50	68.5/55	90	14	60	4	2050x1080x1665	1191
WPG88B9	80/64	88/70.4	115	17.3	90	4	2220x1050x1665	1337
WPG110B9	100/80	110/88	144	21.6	90	4	2220x1050x1665	1372
WPG123.5B9	112.5/90	123.5/99	162	24.1	120	6	2575x1050x1775	1658
WPG137.5B9	125/100	137.5/110	181	26.8	120	6	2575x1050x1775	1663
WPG165B9	150/120	165/132	217	32.2	138	6	2575x1050x1775	1718
WPG206	187.5/150	206/165	271	39.4	182	6	3010x1340x2060	2340
WPG247.5	225/180	247.5/198	324	47.2	216	6	3010x1340x2060	2460
WPG275	250/200	275/220	361	52.5	240	6	3010x1340x2060	2480
WPG344	312.5/250	344/275	451	65.6	290	6	3130x1400x2020	2680
WPG412.5	375/300	412.5/330	541	77.6	350	6	3240x1410x2100	3100
WPG440B8	375/320	440/352	577	82.8	368	6	3240x1410x2100	3125

More Details Information Please Contact Us

Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Ricardo Lovol Cumminss...and so on

Genset Features

B and F series product
1. Original European Technology, Independent R and D.
2. Gen-sets Power Matching Coefficient.
3. Matched with Professional High-temperature Radiator.
4. Professional Application and Integration Capabilities.
5. Option Automation, Auto-switch, Auto-parallel Connection and other Functions Freely.
6. Key Components of The Controller, Circuit Breakers, Generators for the Domestic and International Famous
7.Strong power,high reliability

8.Diesel Engines for Wechai Shangchai (SDEC) Yuchai Deutz Cumminss

weichai deutz 3 phase 24KW 30kva silent diesel generator

high quality 400kw Generator 500kva diesel generator price

weichai deutz 100KW 125Kva diesel generator

low price 125kva soundproof diesel generator 100kw powered by engine 6BT5.9-G2

Our Advantages

10 years experience

With over 10 years of experience in this industry

OEM&ODM

According to customer requirements and products, ODM/OEM services to customers around the world.

Quality assurance

Product quality assurance, with a product license, to provide the perfect after-sales service.

service team

Professional service team and professional technical team.
