Laboratory Optical Binocular Compound Biological Microscope

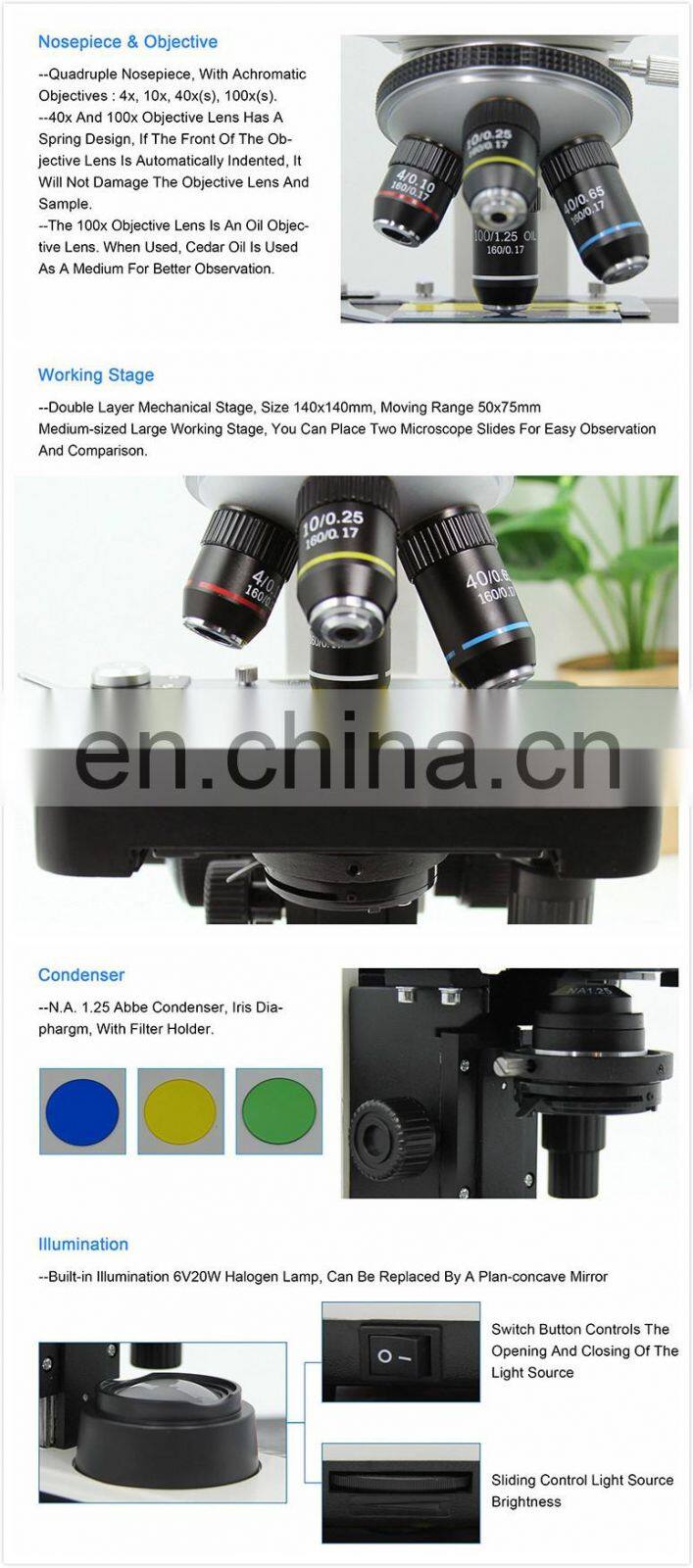

Features:
1.Equipped with large-field eyepiece and achromatic objective lens, the field of view is large and clear.
2.wy-l135a, wy-l135c: coarse fretting coaxial focusing mechanism, with limit device, fretting cell value: 4 m.
3.wy-l135b, wy-l135d: coarse micro coaxial focusing mechanism, with limit locking device and coarse elastic adjustable, fretting cell value: 4 m.
4.12V 20W halogen lighting, brightness adjustable.
Specifications:
Model |
LY-205A |
LY-205B |
LY-205C |
LY-205D |
Eyepiece |
Great field WF10X (Φ18mm) |
|||

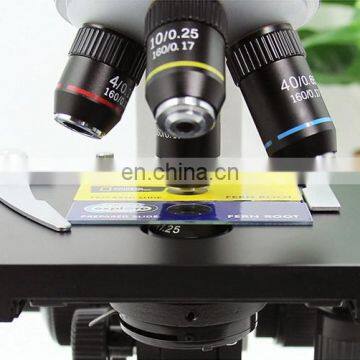

Objective |
Achromatic 4X/0.10 |
|||
Achromatic 10X/0.25 | ||||
Achromatic 40X/0.65(Spring) | ||||
Achromatic 100X/1.25(Spring,Oil) | ||||
Eyepiece Sleeve |
Double Eyepiece(Bias30°) |
|||
Focusing mechanism |
Coarse fretting coaxial focusing mechanism with limit device, fretting lattice value :4μm |
Coarse fretting coaxial focusing mechanism, with locking and limiting device, coarse loosening adjustable, fretting lattice value :4μm |
Coarse fretting coaxial focusing mechanism with limit device, fretting lattice value :4μm |
Coarse fretting coaxial focusing mechanism, with locking and limiting device, coarse loosening adjustable, fretting lattice value :4μm |
Changer |
Four holes (outward ball positioning) |
Four holes (inward ball positioning) |
||
Objective Table |
Double-layer mechanical movement (size:125*115mm,range:70*30mm) |
|||

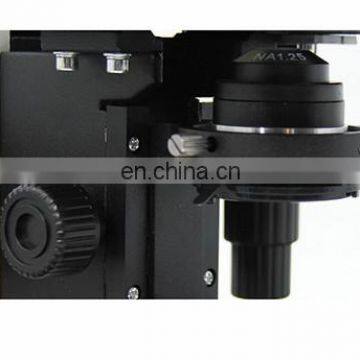

Abbe Condenser |
N.A.1.25 Up and down |
|||
Filter |
Blue Filters |
|||
Frosted Glass | ||||
Optical Collector |
Halogen lamps applicable |
|||
Illuminant |
12V 20W Halogen lamp with adjustable brightness |
|||
During the whole business process, we offer Consultative Selling service.
1)Customer inquiry process:
Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.
3)Order process:
We offer below business term:
Accepted Delivery Terms: |
FOB, CFR, CIF, EXW, DDP |
Accepted Payment Currency: |
USD, EUR, HKD, CNY |
Accepted Payment Type: |
T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow |
Nearest Port: |
Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired |
4)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.
After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.
Deliver the products in confirmed shipping time and inform customer.
5)Installation and after sale service:
Defines installing those products in the field and providing after-sales support.
