Toption High Quality Cold Heat Impact Shock Tester Supplied by Simulating Climate
- shenzhen/hongkong/guangzhou
- T/T Credit Card
You May Like
-
2019 New Design Accerlated Weathering Temperature Controlled Thermal Shock Tester
-
Stability Simulating Hot and Cold Environmental Thermal Shock Chamber
-
Measuring Weather Cabinet Circulation Environmental High-low Temperature and Humidity Equipment
-
Climatic Test Chamber Environmental Machinery Climate Control Cabinet
-
Programmable Artificial Climate High And Low Temperature Test Chamber
-
Ozone Test Chamber for Rubber LED Electronic Component Aging Test
Product Details
| Place of Origin | Guangdong, China | Power | Electronic |
Product Description
Toption high quality cold heat impact shock tester supplied by simulating climate
Application:
The programmable thermal shock tester price is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.
Characteristics:
1. Short temperature recovery time

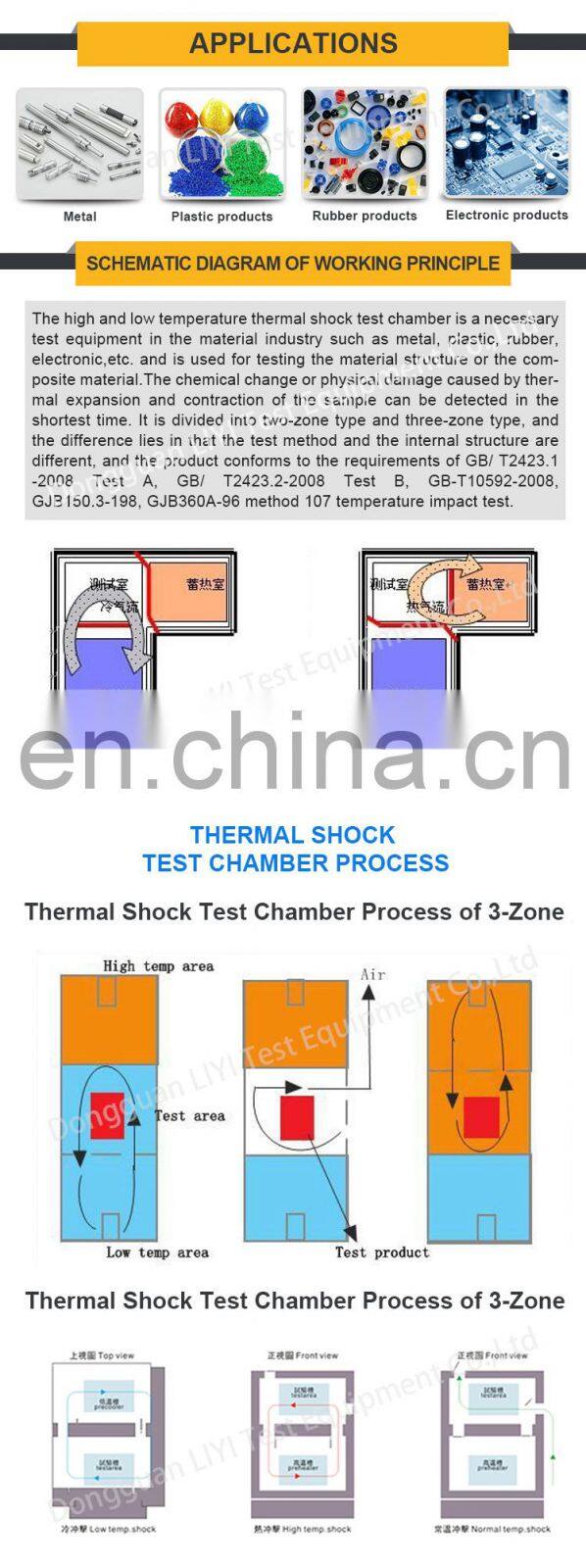

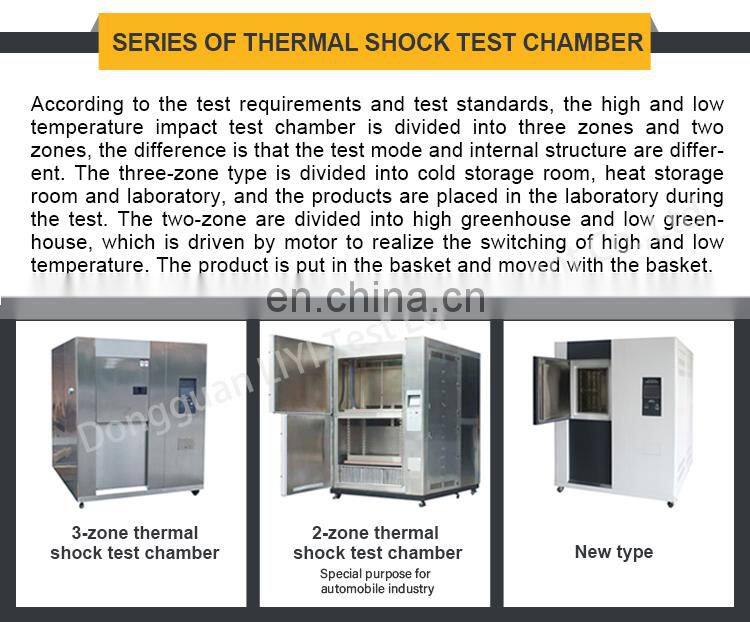

The maximum temperature recovery time at upstream air for 2 zone test (+150°C and -65°C) and 3 zone test is only 5 min.(10 min. for TSA-201S and TSA-301L)
2. Great uniformity
Horizontal air flow system offers excellent specimen temperature uniformity.
3. Efficiency thanks to specimen temperature control (option)
Thanks to this feature, the equipment achieves set temperature attainment with rapidity and accuracy.
4. STT function (option)
Thanks to the specimen temperature monitor with trigger, exposure time starts only when the specimen has reached the set temperature, leading to more precise test results.
5. User-friendly controller
The LCD touch-screen controller allows easy check of the test patterns, temperatures settings, test cycles and graph displays.
6. Reduced load current
7. Reduced operating noise
Specifications:
Inner Size(mm) | 400×350×300 | 400×500×400 | 500×600×500 | 500×750×600 |
Temperature Range | High temperature chamber:RT~+150°C Low temperature:RT~-60°C | |||
Temperature Deviation | Less than ±2°C | |||
Temperature Conversion Time | Less than 10S | |||
Temperature Recovery Time | Less than 5min | |||
Material | External material: SUS#304 Stainless steel plate Internal material:SUS#304Stainless steel plate | |||
Coolting System | Water-cooled or air-cooled, Tecumseh compressor in France, environment friendly refrigerant | |||
Controllor | Programmable temperature controllor | |||
Temperature Sensor | PT 100 *3 | |||
Setting Range | TEMPERATURE : -100.00+200.00°C / TIME : OH1M ~ 9999H 59M / CYCLE ~ 10000 CYCLE | |||
Resolution | TEMPERATURE : 0.01°C / TIME : 1 MIN | |||
Output Mode | PID + PWM + SSR CONTROL METHOD | |||
Simulated Load IC (KG) | 3.5kg | |||
Standard Accessories | Cable hole, lighting equipment | |||
Cooling System | Water-cooled/air-filled type | |||
Power | AC380V/50HZ Three-phase four-wire ac power | |||
Additional Features | The outlet and return it checks for taste known control /CM BUS (RS-485) remote monitoring management system /Ln2 liquid nitrogen rapid cooling control device | |||
Remarks | It can be customiazed according to customer demands. Technology index refer to product description.Delivery time within 45days | |||
