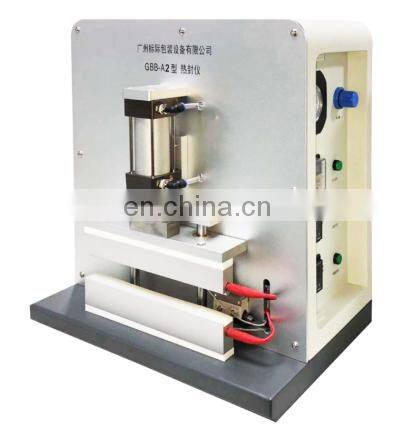

GBB-A Heat Seal Tester
Application
GBB-A Heat Seal Tester can accurately test the heat seal temperature range, heat seal strength, suitable heat seal speed and heat seal pressure of plastic film base material, flexible packaging composite film, coated paper, aluminum foil and others. It is applied to the quality control of various plastic film, food and drug manufacturer, the scientific research and teaching experiment of testing institutions and schools
Standards
ASTM F 2029
Specification
Item |
Technical parameters |
Temperature range |
Room temperature~300℃ |
Temperature precision |
±1℃ |
Seal time range |
0.1s~999.9s |
Pressure range |
0.05~0.8Mpa |
Heat seal area |
Upper and lower bar :300mm × 5.5mm, smooth surface; (lower bar has silicone pad as buffer) |
Heat seal method |
two ways: automatic or manual,external air cylinder |
Gas source |
compressed air |
Power |
2000W |
Power supply |
AC220V 50Hz |
Weight |
45 kg |
Instrument size |
700mm × 400mm × 540mm |
Features
u Upper and lower heat seal jaws have independent temperature control and can be set separately.
u Use compressed air, pneumatic drive.
u Automatic and manual modes; use foot switch for manual mode.
u Can customize size, shape and smoothness of heat seal bar.
u Can upgrade heat seal bar with anti-sticking function.
u Temperature calibration is simple.
Service
1: One year guarantee and all lifetime techinical support
2: USA, Australia Aisa Local agent for service
3 Speedy reply, 12hrs response to customer questions
4 Software free update
5. Minor maintenance ---parts ship within 24 hrs
6 Major maintenance---Technical will be sent within 15 days
certificate

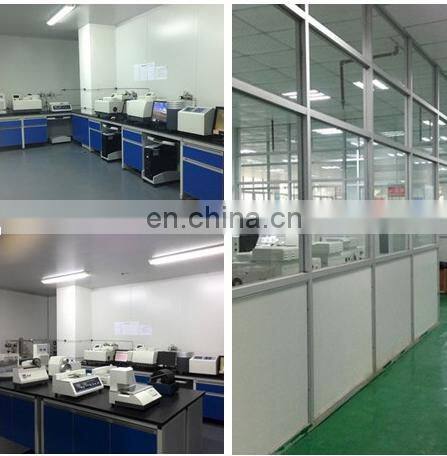

Our laboratory
