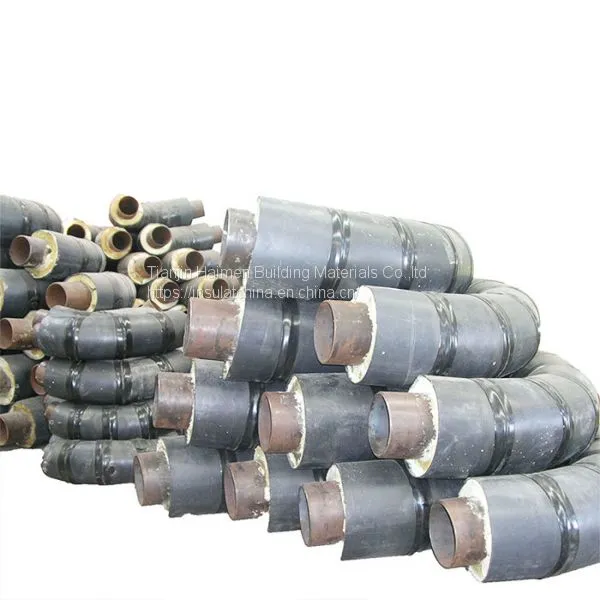

Steam Insulation Pipe

Name: Steam Insulation Pipe
Brand: HAIMEN
SKU: 162950981

Negotiable MOQ: 40 Tons (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

HAIMEN

Place of Origin:

China

Tianjin Haimen Building Materials Co.,ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin

Delivery Detail:

20 days

Brand Name HAIMEN

Place of Origin China

PRODUCT PARAMETERS

Main Performance Index
Performance index	Reference standard	Unit	Standard requirement
Finished pipe combination
Appearance	CJ/T200-2004		No obviouspits,bulges,cracks
Work pipe axial movement	CJ/T200-2004		No jam can move
Outer protection pipe temperature	CJ/T200-2004	℃	≤50
Heat loss	CJ/T200-2004	W/ m²	≤100
Overall compressive strength	CJ/T200-2004	MPa	≥0.08
Axis eccentricity	CJ/T200-2004	mm	4/5/6
Vacuum absolute pressure (Vacuum type)	CECS206-2006	mbar	20
Extra-fine glass wool
Density	CJ/T200-2004	Kg/m³	48
Maximum working temperature	CJ/T200-2004	℃	454
Thermal conductivity	CJ/T200-2004	W/m.k	≤0.05
Average fiber diameter	CJ/T200-2004	μm	6
Water tolerance	CJ/T200-2004	100 degrees of boiling water	No significant changes in physical
Anti-moisture	CJ/T200-2004	Expose 96h	Moisture is less than the product weight
Anti-corrosion	CJ/T200-2004	For steel	No corrosion
Fire proofing	CJ/T200-2004	Non inflammability	Grade A

Steam Insulation Pipe factory:Tianjin Haimen Building Materials Co.,ltd

PRODUCT FEATURES

Product name	Steel jacket steam insulation pipe
Wall Thick	0.5mm-16mm,or customized
Length	1m-12m ,or by customer's requirements
Laid way	Buried, overhead, trench
Production Standard	CJ/T200-2004, CJJ104-2005
Packing	Plastic cap for both end, steel strips bundled
Application	Urban central heating Petroleum,chemical,power high temperature
Quality Control	100% X-Ray inspection
	100% Hydraulic Pressure test
	100% Ultrasonic inspection
