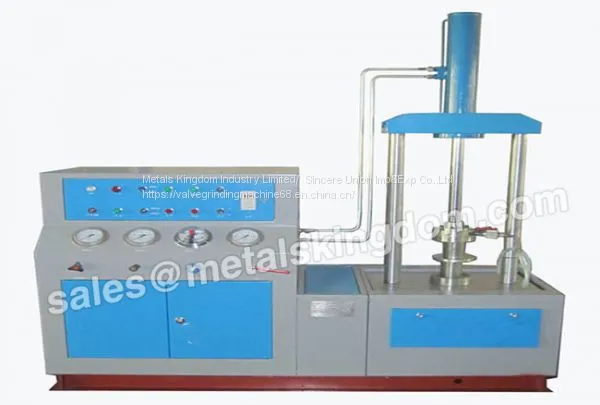

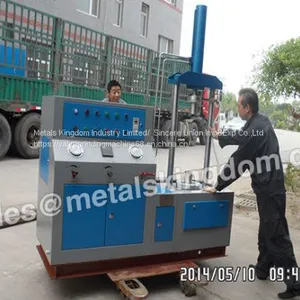

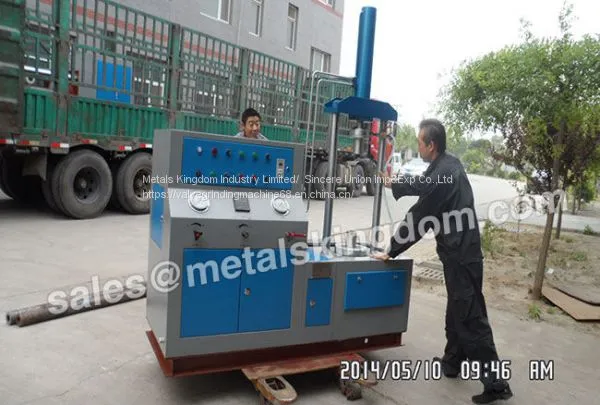

Top Pressure SYTL150/7.5-32 Type Vertical Valve Test Bench
Top Pressure Vertical Valve Test Bench
Valve Pressure Test Bench
Valve Nominal Diameter: DN 20-150mm( Flange connection valves) if with special sealing plate ,it can be used to test the welding valve
Maximium Test Pressure: PN 31.5Mpa(4500LB) Max
Hydraulic oil: N46 hydraulic Oil(provide by user)
The oil temperature is Max 60 degrees centigrade ,Min 5 degrees centigrade
Oil circuit system Pressure :28Mpa max
Test Medium: Water(Allows to add rust inhibitor) kerosene or other liquid it’s viscosity not higher than water
Test temperature(Envioment Temp): 5 degree centigrade to 40 degree centigrade
Transverse clamping Length scope :0-700mm
Radial distance: 380mm
Max Clamping Force: 20(T)
1.Product characteristics and application:
This test bench is designed and manufactured with reference to similar products of Germany and GB4981 stabdard,It is suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation. It is suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981, in order to prevent faulty valves from entering work site.
Features: simple operation, safe and reliable, sensitive test.
2.Technical parameters:
| 20-150mm( Flange connection valves) |
Maximium Test Pressure PN | 31.5Mpa(4500LB) Max |
Nominal Voltage | Exchange 380V |
Rated Power | 7KW |
Line Voltage | Exchange 220V/24V |
Hydraulic oil | N46 hydraulic Oil(provide by user) |
Oil circuit system Pressure | 28Mpa max |
Test Medium | Water(Allows to add rust inhibitor) |
Test temperature(Envioment Temp) | 5 degree centigrade to 40 degree centigrade |
Transverse clamping Length scope | 0-700mm |
Radial distance | 380mm |
Max Clamping Force | 20(T) |
Weight | 4.5tons |
Size | 1850×700×1900(mm) |
3.Comparison Table of Valve Nominal Diameter and Max Test Pressure
| 70max | 80 | 90 | 100 | 150 |
Max Test PressurePN(MPa) | 31.5 | 26 | 20 | 16 | 7.5 |
Comparision Table of Valve Sealing Pressure and Test Pressure
| |||||||||
Norminal Pressure(MPa) | 2.5 | 4.0 | 6.4 | 10.0 | 16.0 | 20.0 | 25.0 | 32.0 | |
Test Pressure(MPa) | 3.75 | 6.0 | 9.6 | 15.0 | 24.0 | 30.0 | 37.5 | 48.0 | |
Norminal Diameter(DN) | Sealing Pressure(MPa) | ||||||||
in | mm | ||||||||
3/4 | 20 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | ||
1 | 25 | 2.0 | 2.0 | 2.0 | 2.0 | 2.5 | 3.0 | ||
2 | 50 | 2.0 | 2.5 | 3.6 | 5.7 | 9.0 | 11.3 | ||
2-1/2 | 65 | 2.5 | 3.8 | 6.0 | 9.5 | 15.2 | 19.0 | ||
3 | 80 | 3.6 | 5.8 | 9.2 | 14.4 | 23.0 | 28.0 | ||
4 | 100 | 5.6 | 9.0 | 14.4 | 22.5 | ||||
6 | 150 | 12.7 | 20.3 |
