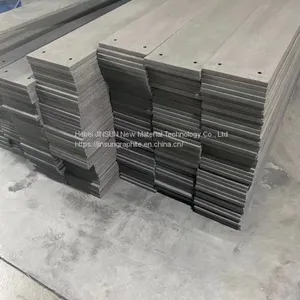

Graphite sheet
- Tianjin
- T/T
Product Description
Our graphite blocks, made from excellent petroleum coke, are widely used in metallurgy, machinery, electronics and chemical industry, etc. Various graphite blocks with qualified materials are available in our factory. We could supply fine-grain graphite, medium-grain graphite, high pure graphite, isostatic graphite, kinds of domestic and imported graphite, and so on. Typical sizes as follows: 400x400x1800; 500x500x1950, 500x330x1950, 500x430x1950, 520x350x2150, 630x630x2200, 600x500x2200, 820x340x2100, 520x350x2600,1100x11000x350, ect.
Physical and chemical index:
| Item | Unit | Guarantee value | Typical value | Guarantee value | Typical value |
| Max grain size | mm | 0.8 | 0.8 | 0.8 | 0.8 |
| Bulk density | g/cm3 | ≥1.70 | 1.73 | ≥1.73 | 1.76 |
| Specific resistance | μΩ.m | ≤8.5 | 7.5 | ≤8.0 | 7 |
| Bending strength | MPa | ≥10.0 | 11 | ≥12.0 | 12.5 |
| Compressive strength | MPa | ≥24.0 | 27 | ≥31.0 | 34 |
| Thermal Condcutivity | W/(m.k) | ≥120 | 150 | ≥130 | 160 |
| C.T.E.(100-600) °C | 10-6/°C | ≤2.5 | 2.2 | ≤2.5 | 2.1 |
| Ash content | % | ≤0.3 | 0.09 | ≤0.3 | 0.09 |
| Item | Unit | Guarantee value | Typical value | Guarantee value | Typical value |
| Max grain size | mm | 2 | 2 | 2 | 2 |
| Bulk density | g/cm3 | ≥1.58 | 1.6 | ≥1.70 | 1.75 |
| Specific resistance | μΩ.m | ≤11.5 | 10.5 | ≤8.5 | 7.5 |
| Bending strength | MPa | ≥6.0 | 6.5 | ≥9.0 | 9.5 |
| Compressive strength | MPa | ≥18.0 | 18.5 | ≥30.0 | 31.0 |
| Modulus of elasticity | GPa | ≤9.3 | 7.5 | ≤12.0 | 9.5 |
| C.T.E.(100-600) °C | 10-6/°C | ≤2.5 | 2.4 | ≤2.5 | 2.3 |
| Ash content | % | ≤0.3 | 0.09 | ≤0.3 | 0.09 |
| high pure graphite | ||||
| Item | Unit | baked twice | baked three time | baked four times |
| impregnated once | impregnated twice | Impregnated three times | ||
| grain size | mm | ≤325mesh | ≤325mesh | ≤325mesh |
| Bulk density | g/cm3 | ≥1.68 | ≥1.78 | ≥1.85 |
| Specific resistance | μΩ.m | ≤14 | ≤14 | ≤13 |
| Bending strength | MPa | ≥25 | ≥40 | ≥45 |
| Compressive strength | MPa | ≥50 | ≥60 | ≥65 |
| Ash content | % | ≤0.15 | ≤0.1 | ≤0.05 |
