Product Details
| Brand Name | Coral RF | Place of Origin | China | |
| Model Number | N207 |
Product Description

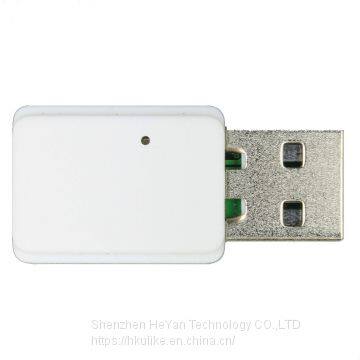

CC2511 FSK RF Dongle,2400Mhz,Wireless Dongle
INTRODUCTION
N208 is a low-cost and small size FSK RF module for transmitting and receiving digital data via radio frequency. All of the N208's electronics ( including an antenna) reside on a single PCB,and all operational power is derived from a single supply voltage.The transceiver design consists of a CC2511 low-power, integrated sub 1G transceiver RF chip,all IO pin are brought out.The module available frequence is from 2400-2483Mhz.The hardware is designed for maximum range.
Technical specifications
Hareware Information
Interfaces: USB
Dimension: 34 x 17mm x 7mm
Operating voltage: VCC: 5V
Operating temperature: -40°C to +80°C
Consumption(Sleep) : 1uA
Consumption (RX): 20mA
Consumption (TX): 35mA
RF chip: CC2511
Mounting: USB
Software
Asynchronous Transparent
mode Low Power mode
Secure mode
RSSI mode
Serial bootloader
Adjustable packet size
Wireless Interface
RF antenna
Frequency:2400Mhz-2483Mhz
Modulation: FSK
RF data rate: 2.4 - 500kbps
RF output power: up to 1dBm
RF sensitivity: -106dBm
